VBatt_idx (BATTERY VOLTAGE)
The voltage of battery that normally will be range from 13 to 14.5V after engine start.
Baro (BAROMETRIC PRESSURE)
This refers to the current atmospheric pressure being measured. As reference, the atmospheric pressure is 101.3kPa at sea level
and is 69kPa at altitude of 3250m.

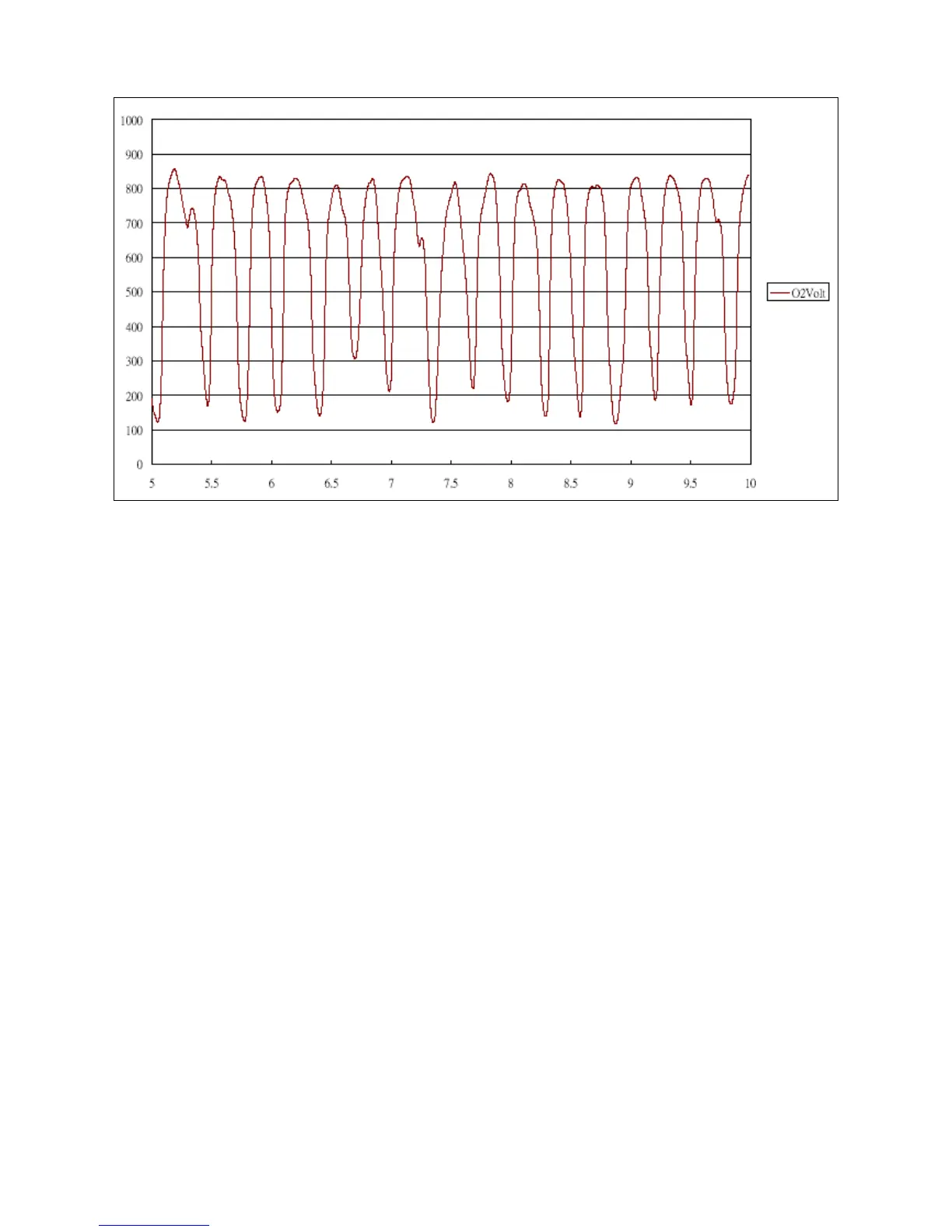

CLC (CLOSE-LOOP CONTROL)
This refers to the air-to-fuel ratio (AFR) being controlled around stoichiometry point (AFR=14.6).
BLM (BLOCK LEAN MEMORY)
The values will be close-loop corrected according to the changes of engine efficiency.
Fuel.BLMEn (BLOCK LEAN MEMORY MODE ENABLE)
This mode will be activated under engine fully warm-up condition.
TPS_idx (THROTTLE POSITION OPENING)
Throttle position opening is a digitized unit transferred from throttle opening to be used by micro-controller. It will be zero (0)
when ignition key turned on (engine not started). If the value is not zero then it can be a learning error of throttle position. Turn
off the ignition key for two (2) seconds and turn on again to get a correct value.
Malf8.MIL (MAL-FUNCTION INDICATION LIGHT)
The MIL will be turned on whenever the EMS component becomes mal-functioned during engine operation. MIL can also be
