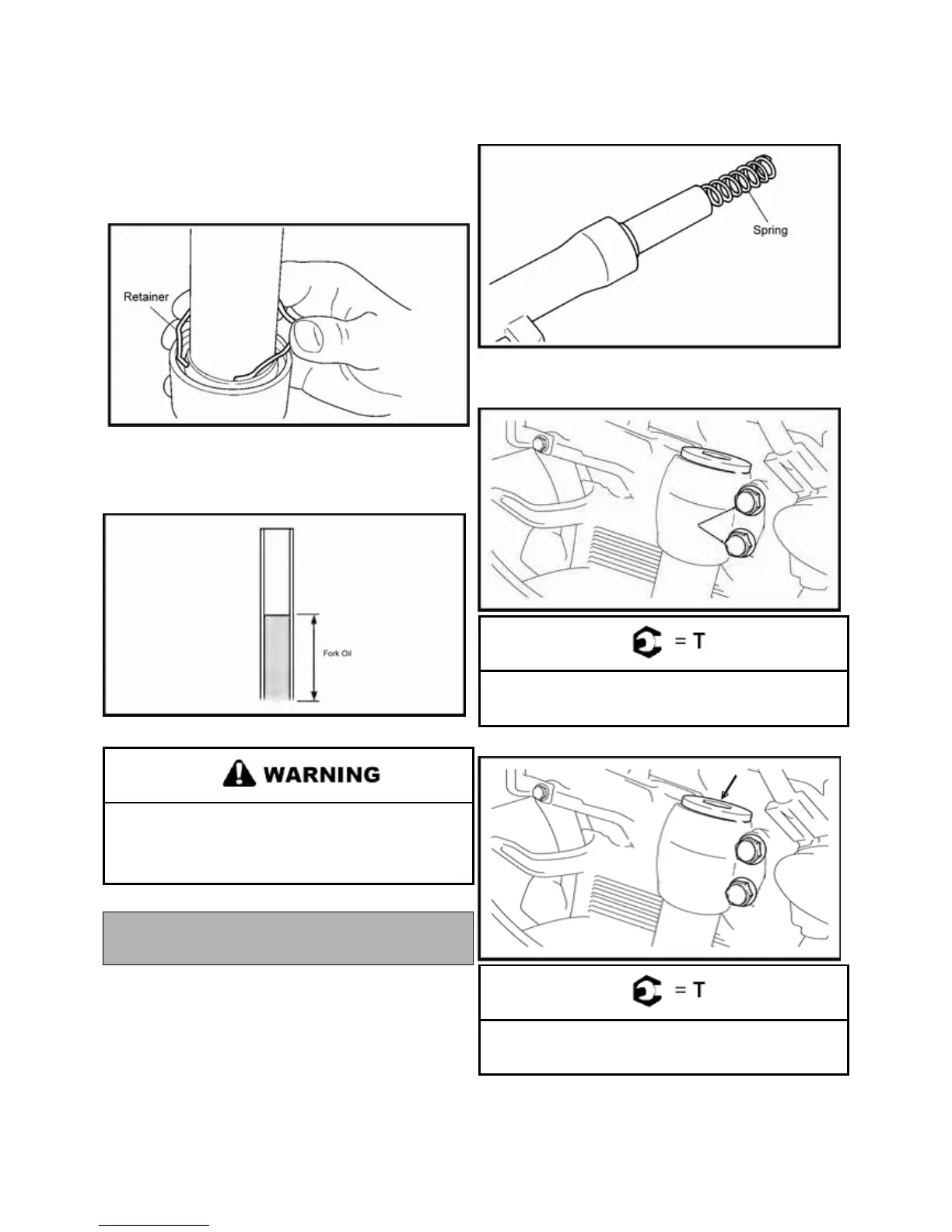

4. Place inner tube slowly into outer tube.
5. Install oil seal retainer.
6.
Slowly adjust oil seal retainer until fit into outer tube
groove,
7. Install dust seal onto inner tube.
8.
Fill recommended fork oil into inner tube.
Uneven oil levels can result in poor
handling and a loss of stability.
Front Fork Oil Capacity
130cc ±
±±
± 5cc
9. Install dust seal onto inner tube.
10. Install Spring into inner tube.
11. Install both forks into triple tree clamp hole.
Triple Tree Clamp Torque:
30 Nm (21.7 ft. lbs.)
12. Torque the cap bolt to specification.
Front Fork Cap Torque:
70 Nm (50 ft. lbs.)
