10. Apply the parking brake (1).

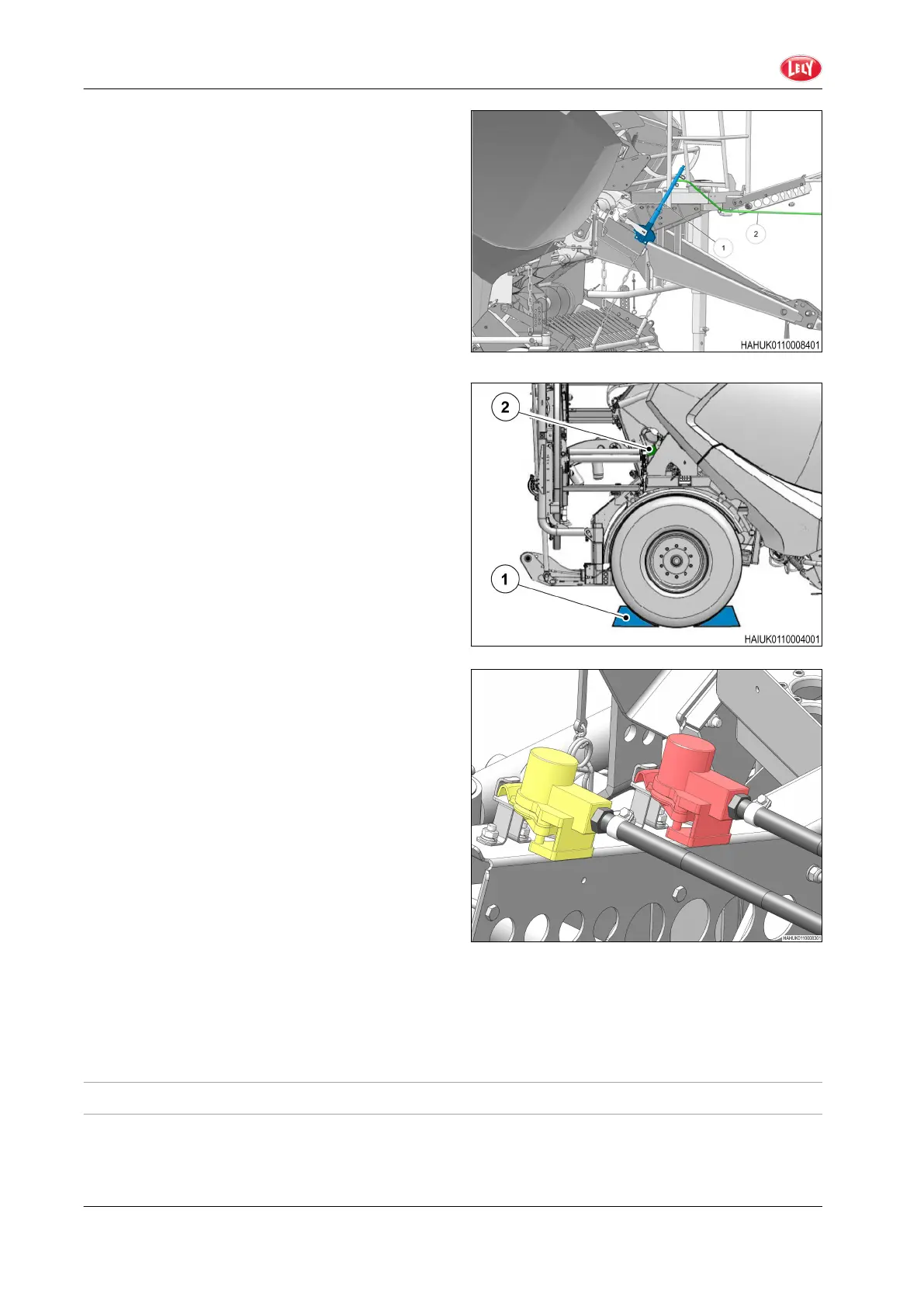

GUID-EAD6F6E5-A533-4F55-91A0-24618026E76D-high.jpg [High]
Fig. 50
11. Put the wheel chocks in position.
12. Install the support foot.
13. For a hydraulic brake system:
a) Disconnect the hydraulic brake hose from
the tractor and immediately connect it to
the dummy coupling on the platform
b) Disconnect the optional safety brake cord.
GUID-EA88E736-A0CA-4221-9737-47BEAE5D3953-high.jpg [High]
Fig. 51
14. For a compressed air braking system:
a) Disconnect the reservoir coupling with
the red top
b) Disconnect the brake coupling with the
yellow top
c) Connect the couplings to the dummies.
15. Disconnect the cables of the electrical power
supply, lighting and the control panel.
16. Disconnect the hydraulic hoses and connect
them to the dummies.
17. Disconnect the Power Take-O (PTO) shaft:
a) For a machine with a bottom coupling:
position the drive shaft on the drive shaft
support
b) For a machine with a top coupling: hang the drive shaft in the strap.
18. Disconnect the machine.
19. Install the lock on the drawbar head.
GUID-6C6DF1C5-7E82-418C-811D-C6D0BDFA1B61-high.jpg [High]
Fig. 52
3.6.4 Support Foot
The position of the crank handle in the support foot holder (pulled out or pushed in) will make the support
foot move quickly or slowly when you turn the crank handle.
