4.14 Adjust and Replace the Belt Guide Pulleys
Before starting the procedure
Weekly examine the belt pulleys on the wrapping table for smooth running.
Procedure
1. Make sure that the machine is "OFF" refer to
the shutdown procedure for maintenance.
2. Make sure that all pulleys (2) can turn
smoothly.
a) If necessary, loosen the bolt (1) a small
quantity
b) If necessary, replace the pulley.

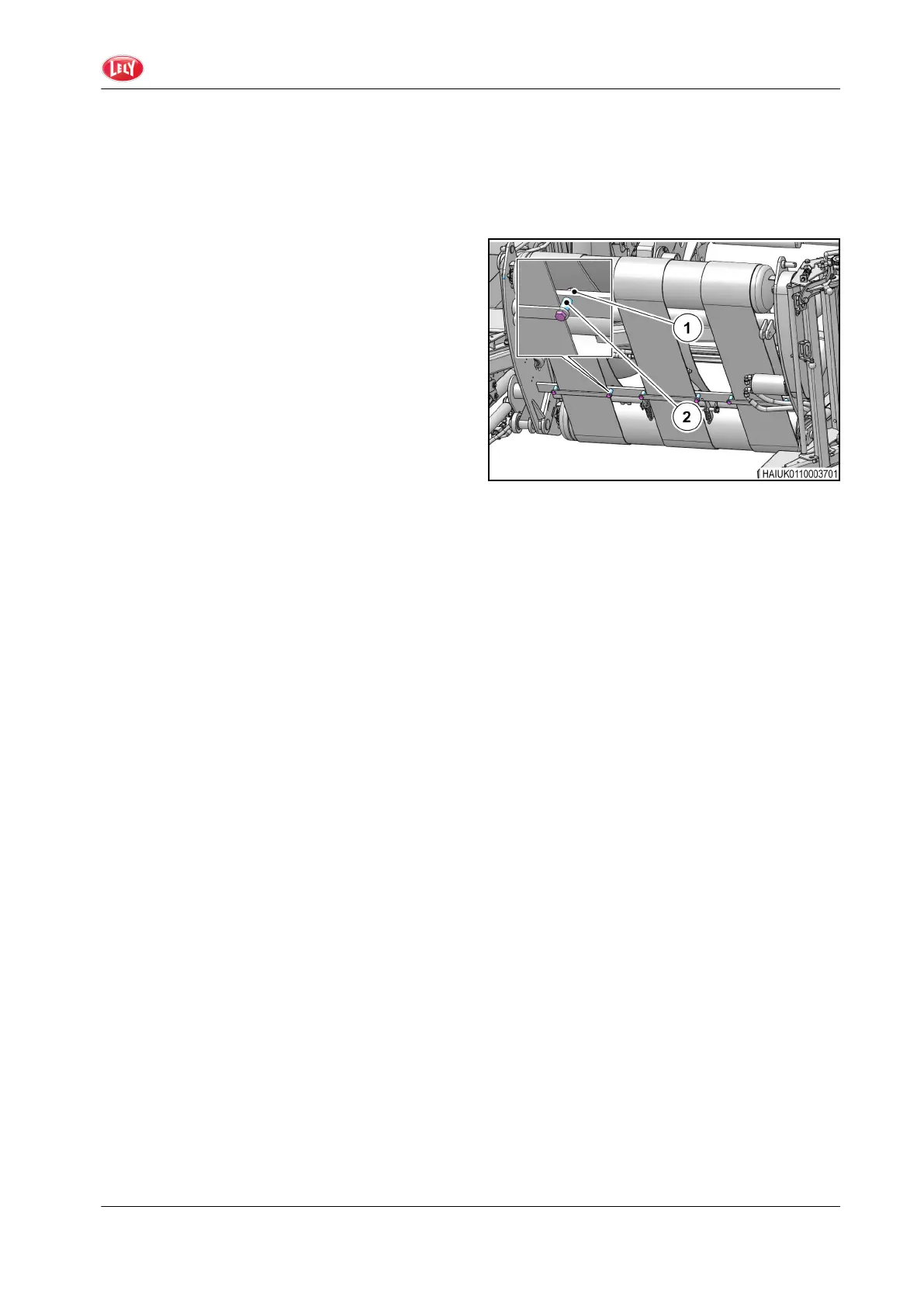

GUID-4D063C03-373A-4F40-B0B5-A6BCAC729912-high.jpg [High]
Fig. 22
(1)
Nut.
(2) Belt Guide Pulley.
GUID-8102B720-F663-439F-927E-AFA4008675D8 [V1]
4. Maintenance and Lubrication
Baler Wrapper Combination 135
4900.LE.EN01
