1.4 Safety Devices
1.4.1 Emergency Stop Buttons
GUID-434AFA8E-4891-4A88-A7F5-41DF29797A02-high.jpg [High]

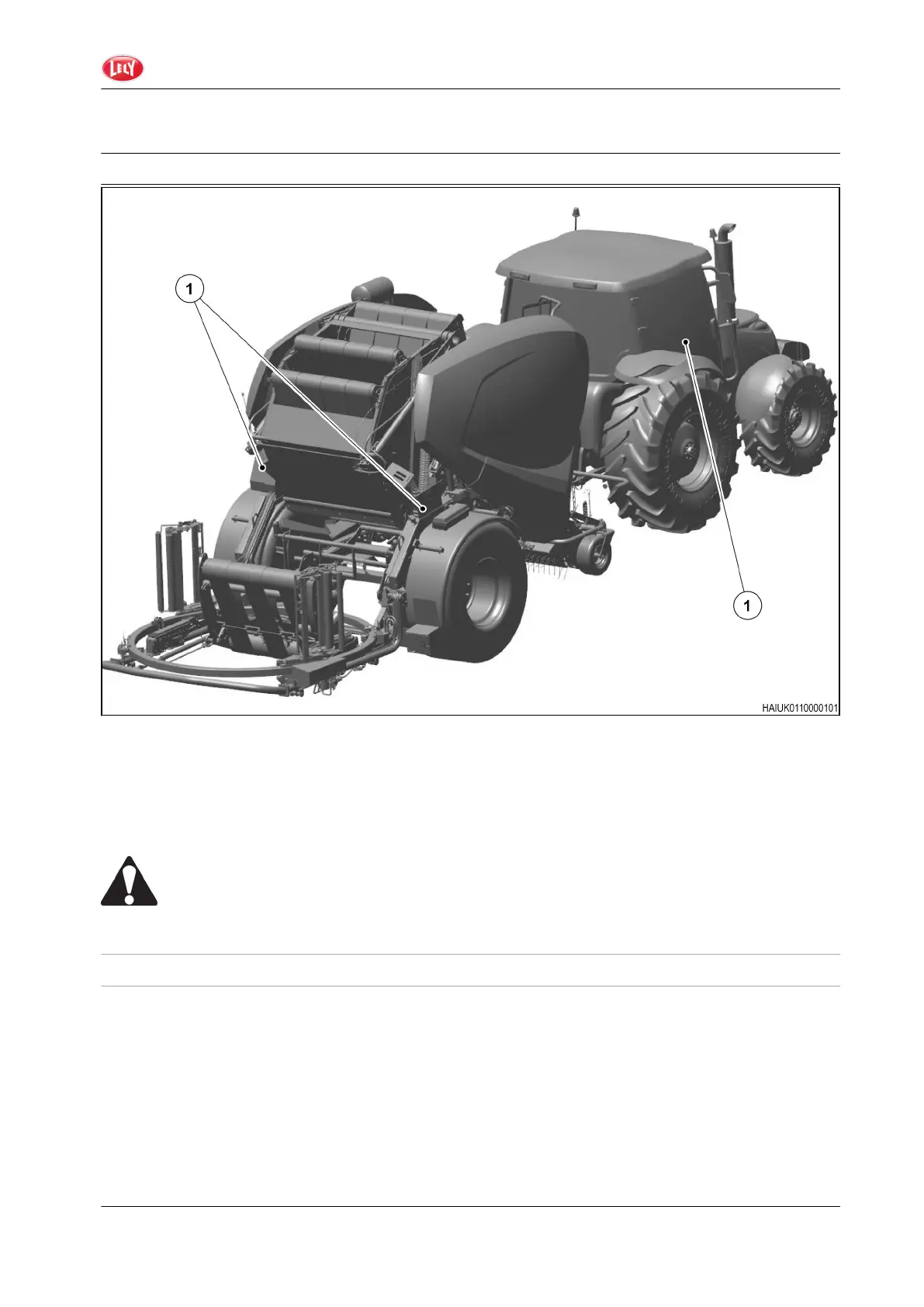

Fig. 5
Emergency stop buttons (1) are installed in the tractor cab and on the two sides of the machine. When
pushed the button will:
• Set the electrical power to "OFF", the controls stop
• All hydraulic operated parts of the machine stop, for example the wrapper.
WARNING: Risk of injury
Know that all parts operated by the power take-o shaft continue to operate.
Turn the button until it unlocks and releases. The system will start and you can start to bale.
1.4.2 Tailgate Safeguard
The tailgate safeguard is a hydraulic shut-o valve that safely holds an opened tailgate in position and
makes sure that it does not lower.
The shut-o valve is located on the maintenance platform.
Always set the shut-o valve in the 'shut-o' position when you do maintenance with the tailgate open.
If the tailgate is open for a long period of time hold the tailgate with an applicable tool. This will stop
hydraulic pressure reduction and movement of the tailgate.
