6. Make sure that the bale tipper is behind the
wrapping table.

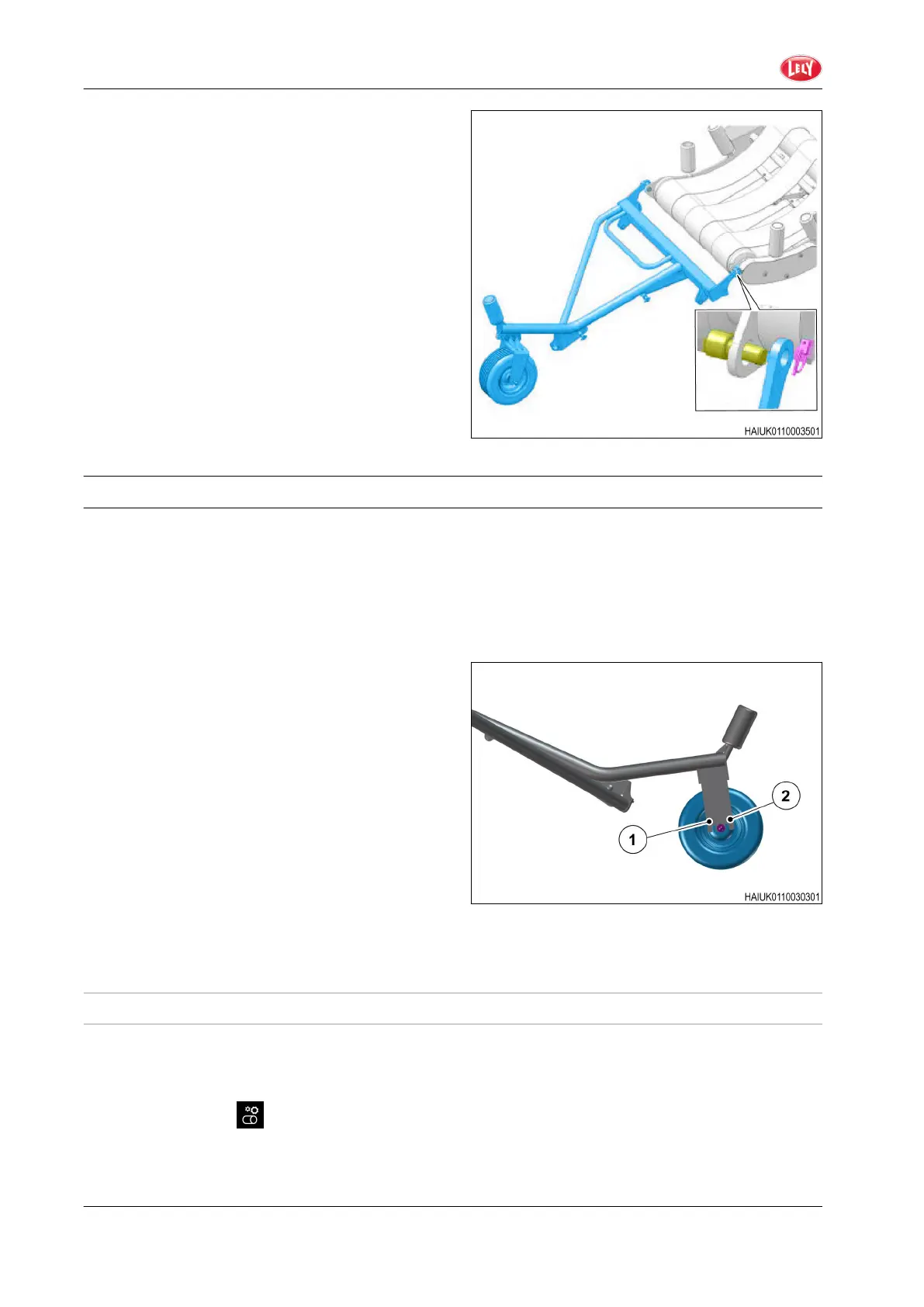

GUID-6134C726-190B-44B2-B2F1-F3C4EBE4442C-high.jpg [High]
Fig. 43
3.4.12 Adjust the Bale Tipper
The bale tipper guide wheel is adjustable in three positions this changes the angle the bale is tipped on the
ground. Always start to bale with the guide wheel in the centre position. If the bale does not land correctly,
change the adjustment:
1. If the bale is slow o the bale tipper, put the guide wheel in the rear position.
2. If the bale comes o the bale tipper to quickly, put the guide wheel in the front position.
Procedure
Remove the two nuts, one on each side and
attach them in the correct position.
GUID-3B2C83DE-C511-4C56-84F6-D2ECA0EF0345-high.jpg [High]
Fig. 44
(1)
Front position.
(2) Rear position.
3.4.13 Adjust the Machine Settings on the Controller
On the controller in the tractor set as shown:
Procedure
1. Push the button to go to the Bale settings page.
2. Make all the adjustments.
GUID-D22E7938-5C8F-46DB-8199-D87B9E4CF909 [V1]
GUID-517FFB94-D62A-4022-ADC6-7F13C6502FB7 [V1]
3. Operation
96 Baler Wrapper Combination
4900.LE.EN01
