4. Use the double acting valve in the tractor to lift the new knife group selection.
5. When “Status: Engaged” and a green knife symbol shows, you can push to go back to the tasks
page or to go to the Home page.

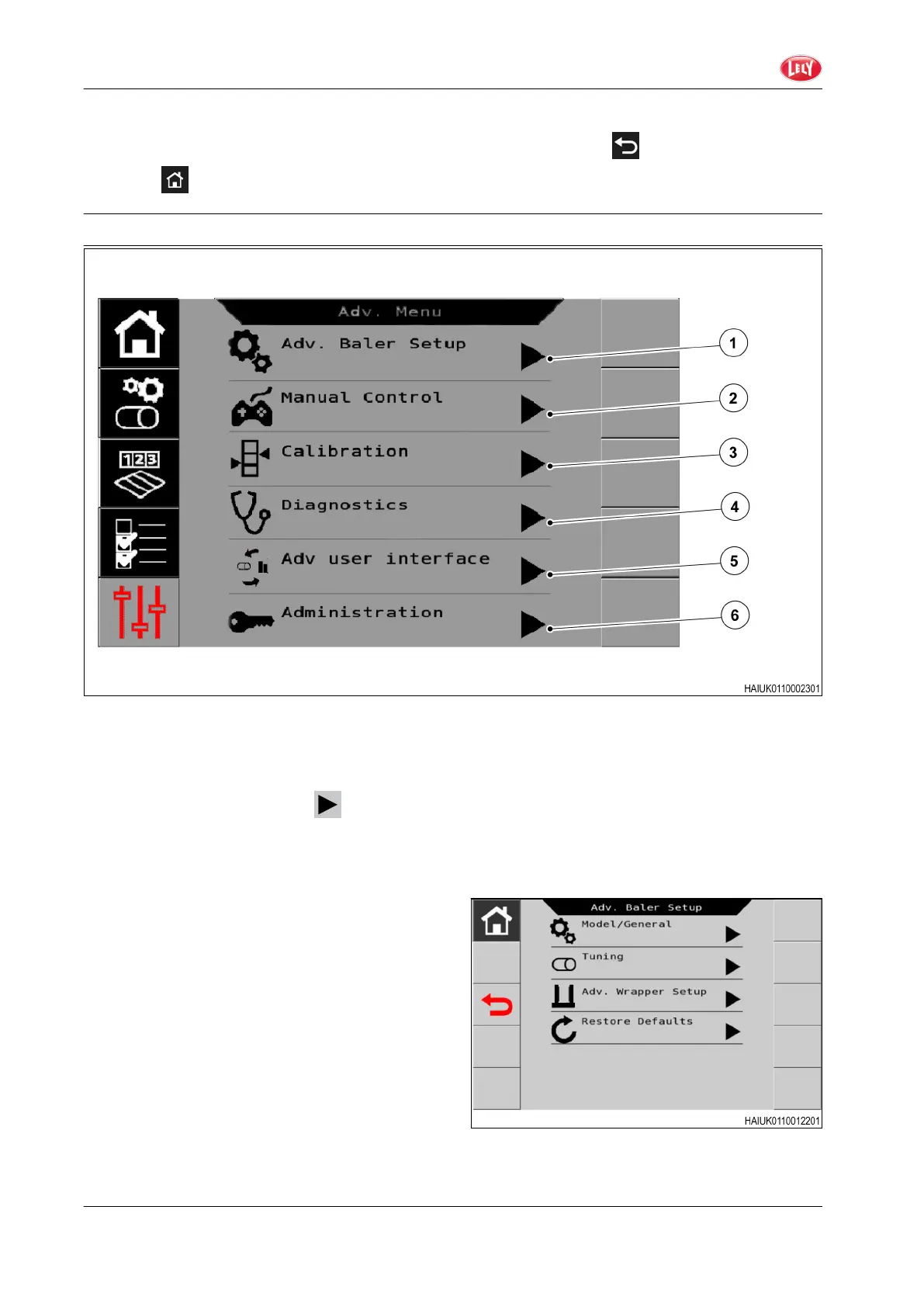

2.5.5 Advanced Menu
GUID-D95C86A4-F61B-46E3-A4E3-C2DDB17828D1-high.jpg [High]
Fig. 16
(1)
Advanced Machine setup.
(2) Manual control.
(3) Calibration.
(4) Diagnostics.
(5) Advanced user interface.
(6) Administration.
To make your selection, push the button on the necessary line.
The menu “Administration” is only available for manufacturer approved technicians and requires a password
for access.
Advanced Machine Setup
The menu Model/General has no settings.
GUID-7DFF0D72-B6AE-4C86-89E3-574F12D7085A-high.jpg [High]
Fig. 17
GUID-CED69CBD-1673-4C4C-8F13-D967B55B8856 [V1]
2. Introduction
58 Baler Wrapper Combination
4900.LE.EN01
