Make sure that you can use one of these drawbar heads with your tractor. Read the tractor manual.
You must adjust the drawbar height to the tractor before use.
2.3.3 Device to Stop Use Without Approval
To make sure that the machine is operated only by
approved persons, a lock can be installed on the
drawbar head.
Refer to your local laws to find if this device is
mandatory.

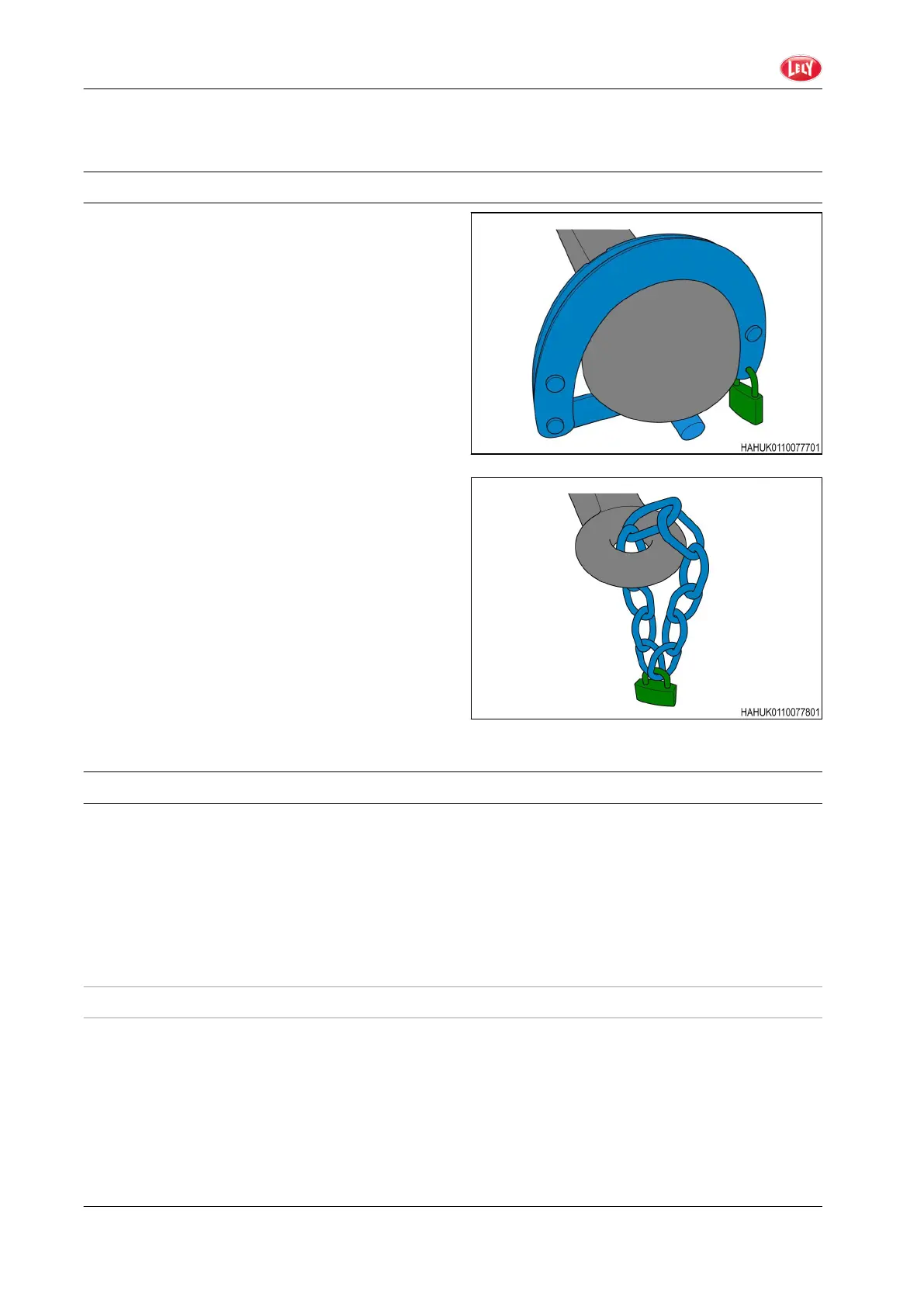

GUID-99CCDC78-0793-42AC-82C9-48F487A70C43-high.jpg [High]
Fig. 3 Device to stop use without approval for the Ball Head
GUID-2C9355DC-351B-4F6F-8B9B-E11178124C76-high.jpg [High]
Fig. 4 Device to stop use without approval for the Towing
Eye
2.3.4 Main Drive Shaft
The Power Take-O (PTO) shaft of the tractor turns the primary drive shaft which drives the main gear box.
RPC 160 V The main gear box supplies drive to the roller chains, the feed rotor and the belts of the bale
chamber.
RPC 130 F The main gear box supplies drive to the roller chains, the feed rotor and the rollers of the bale
chamber.
The PTO shaft has an overload clutch between the PTO and the primary drive shaft that protects the drive
system against an overload.
2.3.5 Hydraulic System
For correct operation the tractor must have a hydraulic system.
The double acting valve of the hydraulic system lifts and lowers the:
Pick-up
Knives in the cutting unit
Feed channel floor (when you remove a blockage).
The single acting valve of the hydraulic system will:
GUID-6A8AEA66-B356-4B8C-B15A-DF991C9C671B [V1]
GUID-606BF6C9-CB1A-489F-A90B-751603BA3604 [V1]
GUID-251885D4-8F71-4F71-8313-9CD9BE8F1B09 [V1]
2. Introduction
40 Baler Wrapper Combination
4900.LE.EN01
