2. Open the top cover (1).
3. If the wrapping procedure before was not
complete (for example because the net roll
was empty during the wrapping process) do
the steps that follow:
a) Pull the handle (2) of the net knife carrier
to the front and attach the safety chain (3)
and attach it with the clip (4).

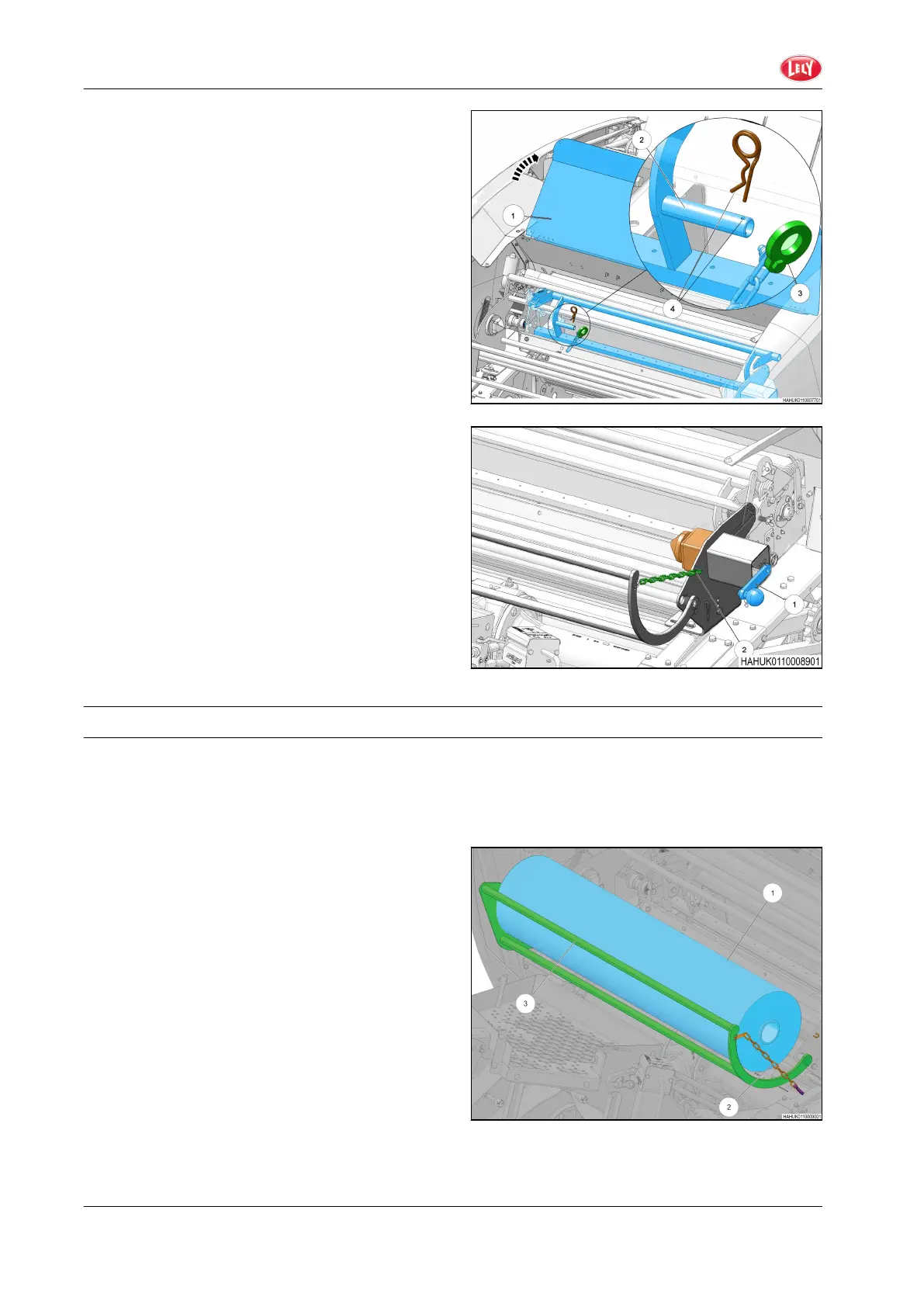

GUID-2939BE9E-C1B4-4136-9D04-F64AA3A29C53-high.jpg [High]
Fig. 32
4. Turn the crank handle (1) until the tension
spindle moves in to the stop.
5. Remove the safety chain (2) from the net roll
holder.
GUID-F0670DCC-332F-429F-B069-A09CBB0931C1-high.jpg [High]
Fig. 33
3.4.4 Insert the Net
Procedure
1. Push the new net roll (1) into the holder.
2. Connect the safety chain (2).
3. Tilt the holder (3) and net into the net roll
holder.
4. Turn the crank handle into the sleeve of the
net roll until it gets to the stop, and then turn
it 1/8 of a turn back. This will make sure that
the roll can turn freely.
GUID-A916866C-7989-4ED9-BCC6-A5B781CEE03D-high.jpg [High]
Fig. 34
GUID-9BF37F93-B978-48A6-8E90-2711F28A5EB8 [V1]
3. Operation
90 Baler Wrapper Combination
4900.LE.EN01
To Next Page
