4.15 Adjust the Disk Brake of the Net Tying Unit
Before starting the procedure
To prevent unwanted unroll of the net roll you must adjust the disk brake. With the lever in the up position
it must not be possible to turn the roll by hand.
Procedure
1. Make sure that the machine is "OFF". Refer to the shut down procedure for maintenance.
2. Tighten the net tensioner bar (5) and lock it with the R-clip in the hole (4).
3. Loosen the bolt (1) on the lever.
4. Adjust the milled nut (8) until the brake
linings (7) are in full contact with the brake
disk. If there is wear to the brake linings (7)
on one side:
a) Loosen the locknut (3)
b) Turn in a small distance the screw (2) until
the brake linings (7) are parallel again
c) Tighten the locknut (3).
5. Adjust the milled nut (8) until the brake disk
stops to move freely, when you turn the
brake disk by hand.
6. Tighten the bolt (1) on the lever.
7. Remove the R-clip from the hole (4) and
release the net tensioner bar (5).

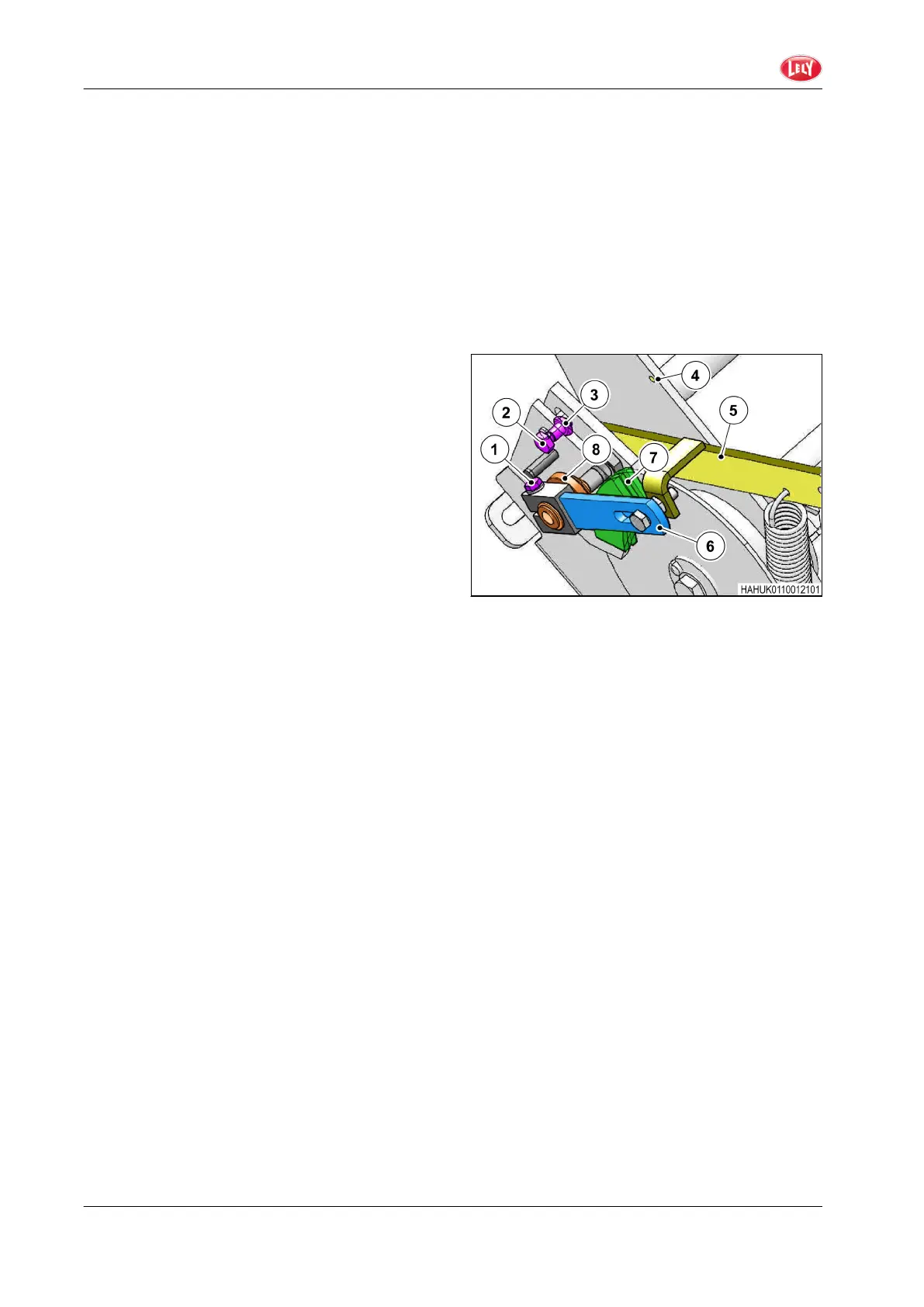

GUID-CA039DE0-5985-4B1B-9C93-AC7E287AB21F-high.jpg [High]
Fig. 23
(1)
Bolt.
(2) Screw.
(3) Locknut.
(4) Hole for R-clip.
(5) Tensioner.
(6) Lever.
(7) Brake linings.
(8) Milled nut.
