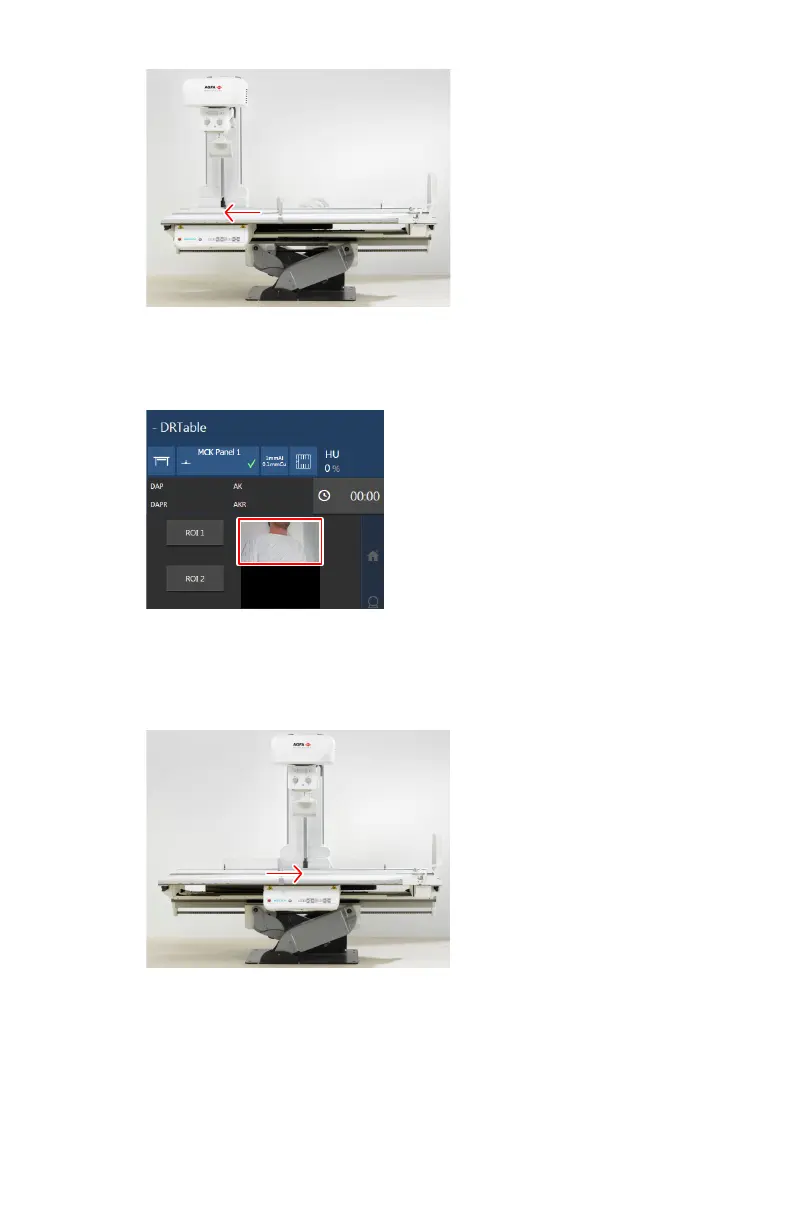

Figure 127: X-ray tube moved to top most position
Verify the position on the image from the collimator camera that is
displayed in the software console.
Figure 128: Setting the top most position for the examination
5. Press the ROI 1 button to confirm the position.
6. Move the X-ray tube and DR detector to the position that matches the
bottom most position for the examination.
Figure 129: X-ray tube moved to bottom most position
164 | DR 800 | Full Leg Full Spine
0392C EN 20210309 1049
