AGFA DR 800 - Page 47

Inserting a DR detector in the wall stand bucky
1
2
3
4
5
6
7
8
1.
Bucky
2.
Bucky drawer
3.
DR Detector or CR cassette
4.
Lever to lock the clamps
5.
Bucky drawer handle
6.
Clamp
7.
Vertical center indicator
8.
Vertical stop

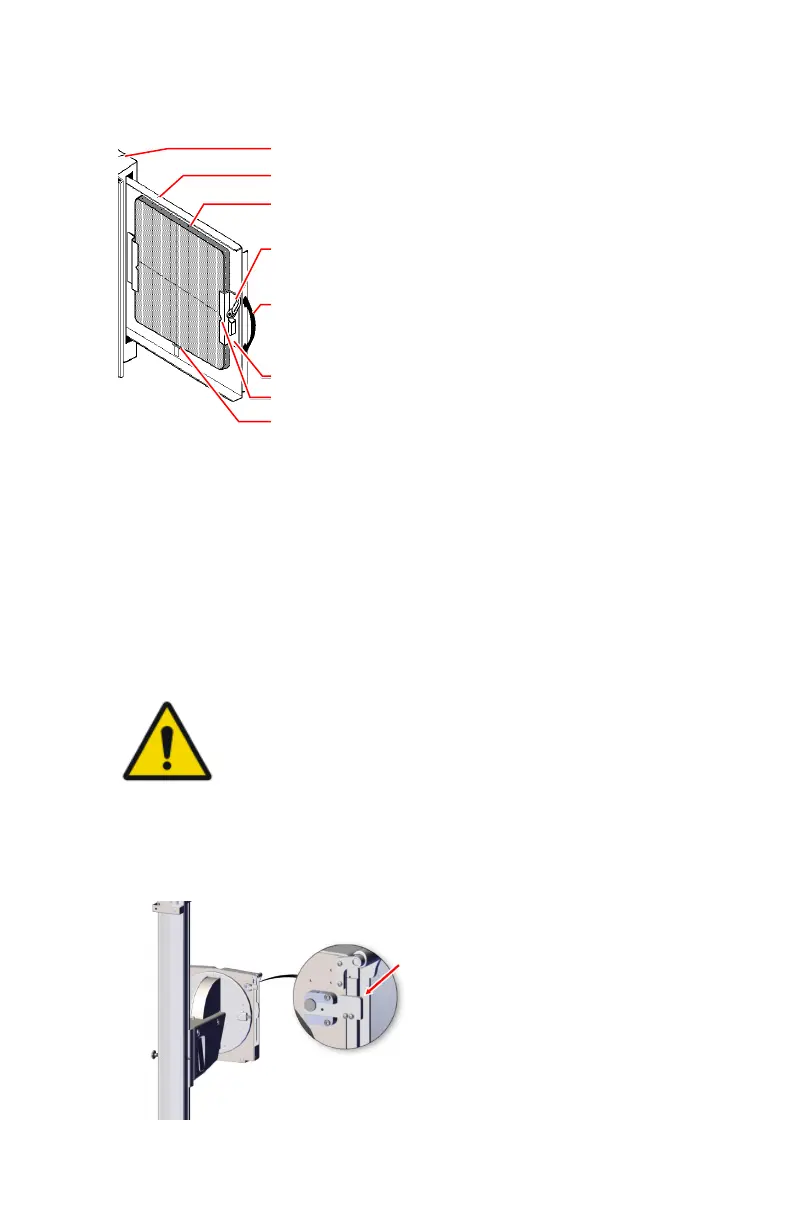

Figure 29: Bucky
CAUTION:
Make sure your fingers are not crushed by components inside
the bucky drawer. Use the bucky drawer handle when opening
or closing the drawer.
Securing the detector in the bucky
To secure the removable DR detector in the bucky, the bucky can be equipped
with a number of locks:
Figure 30: Detector tray lock for tilting buckies
