Push the lever to release the detector tray lock

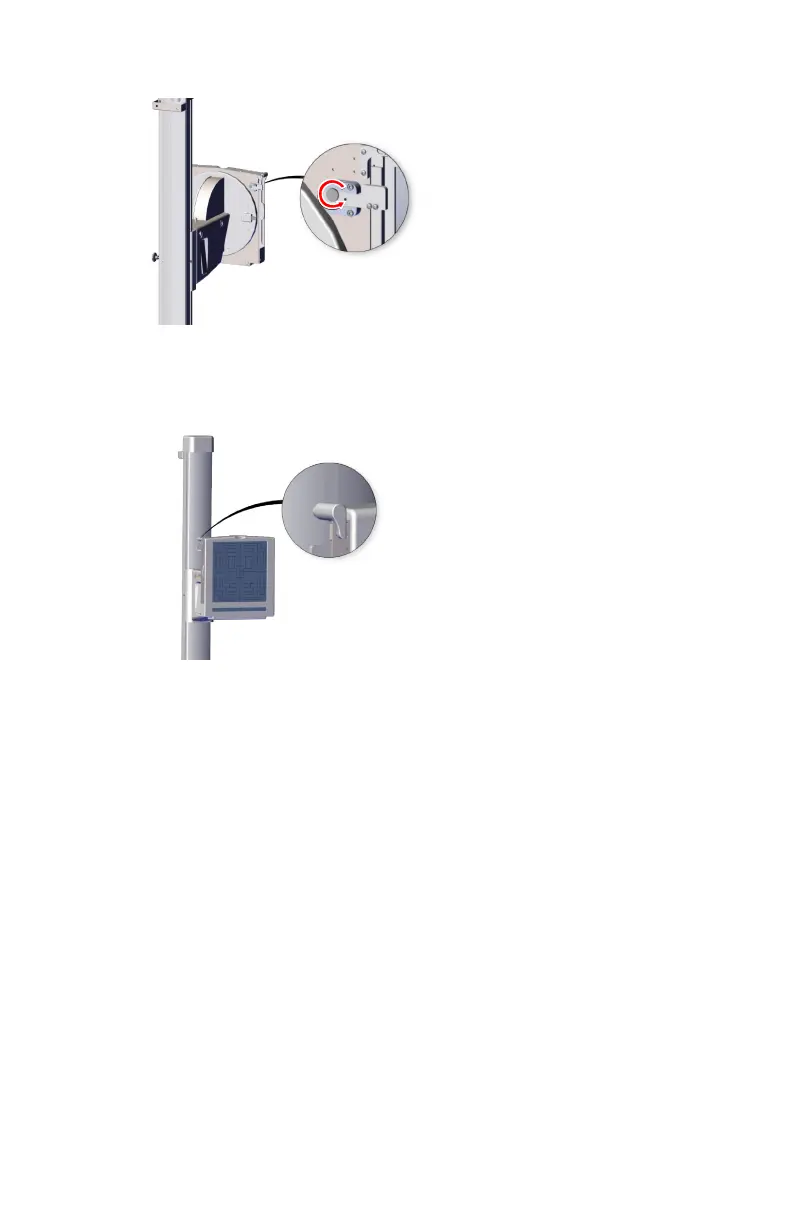

Figure 31: Detector tray lock for earthquake resistance
To secure the lock for earthquake resistance, first turn the knob on the lever
counterclockwise to allow the lock to be released.
Figure 32: Lock for earthquake resistance
Press the lever to release the lock for the removable grid.
48 | DR 800 | Introduction
0392C EN 20210309 1049
