The Agilent 1100 Series Control Module
Control Module Software
distinguish between the different modules in your system, or in the case of the
Views button [F5], between screens.
Analysis Screen
The Analysis screen provides access to all LC analytical settings. The most
commonly used settings are displayed with their corresponding set and actual
values. Since space on the display is limited you will only see a selection of
important parameters. The screen layout will depend on the modules that are
included in the system and on the modules selection the user did in the Setup View
dialog accessible via the m key (the maximum of visible modules on this screen
is 4). The other less used settings of the current method appear in further screens
to be accessed from the Settings button [F1]. The actual values are updated
continuously

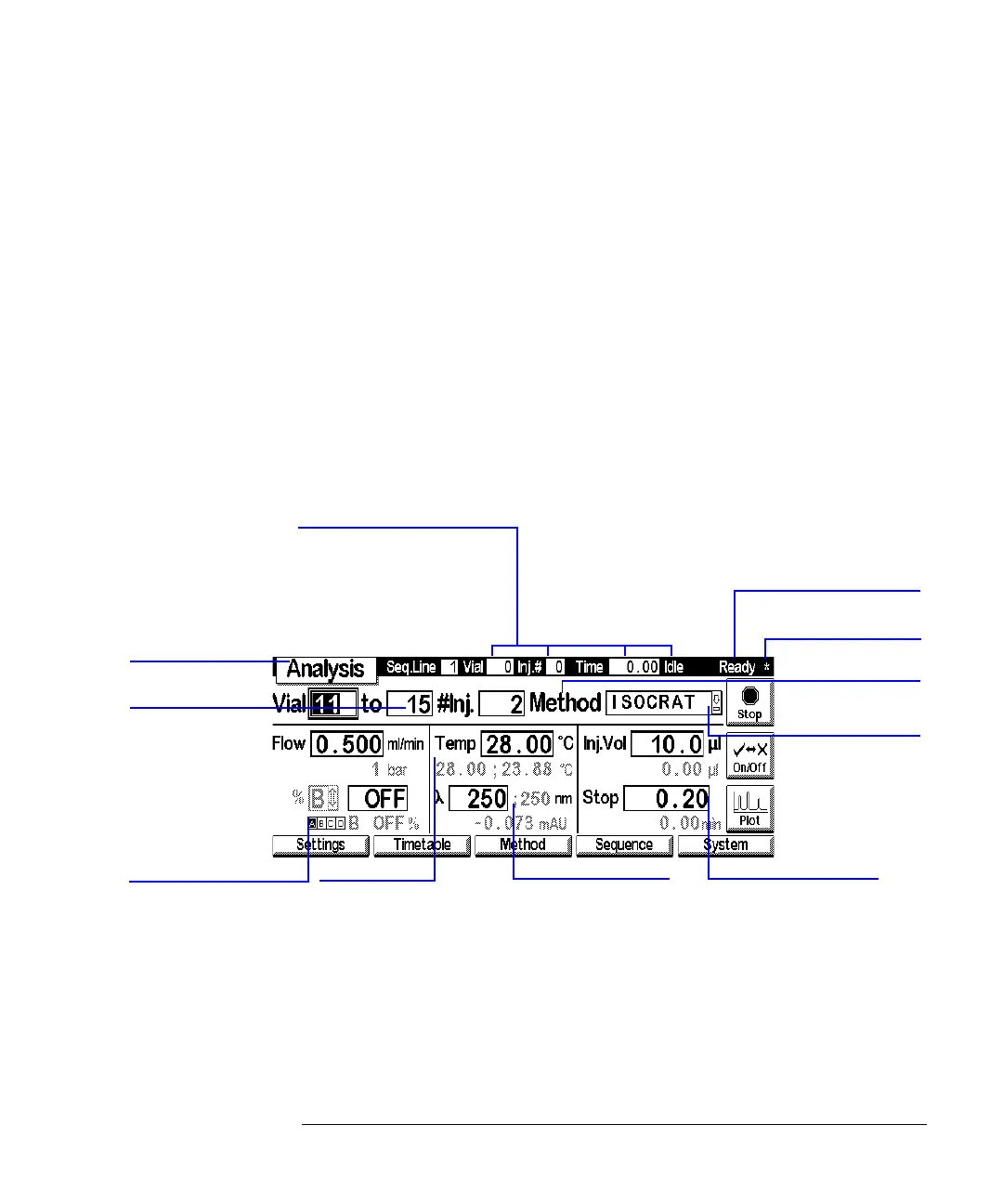

Figure 6 .Analysis Screen Information
Autosampler
parameter
vial range setting
number of injections
setting
screen name
modification
module status
Pump parameter
flow rate setting
system pressure
solvent composition
Autosampler parameter
injection volume setting
drawing volume
Vial range status information
vial number
injection number
run time
status
method in use
stoptime
Thermostatted Column
Compartment parameter
temperature setting
actual temperature left/
right
Detector parameter
wavelength setting
actual wavelength
