The Agilent 1100 Series Control Module
Control Module Versions
Using the Direction and Selection keys of the control module you can change the
scale of the plot window. With the Rescale button [F7] you can optimize the screen
according to the selected signal and parameter ranges.

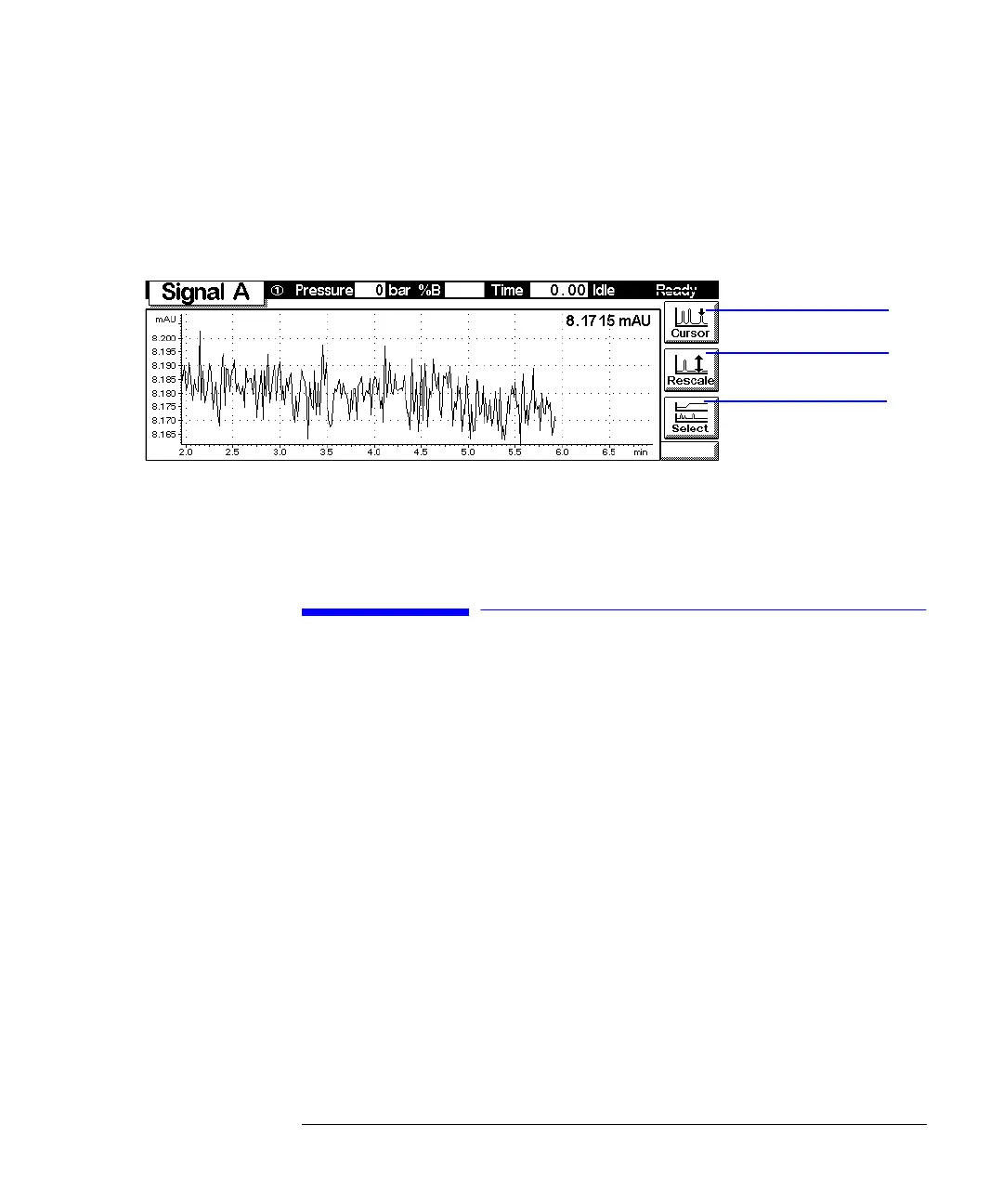

Figure 12 Plot Screen
Control Module Versions
With the introduction of the Agilent 1100 Multiple Wavelength Detector and the
Refractive Index Detector a new Control Module Version, G1323B, was introduced.
To find out which version you possess, check the part number label on the back side
of your control module. The G1323A version allows to control the following
Agilent1100 modules: Agilent1100 Diode Array Detector, Agilent1100
Fluorescence Detector, Agilent 1100 Variable Wavelength Detector, Agilent 1100
Quaternary, Binary and Isocratic pump, Agilent 1100 Thermostatted Column
Compartment, Agilent 1100 Autosampler and Thermostatted Autosampler.
The G1323B version additionally controls the modules Agilent 1100 Refractive
Index Detector and Agilent 1100 Multiple Wavelength Detector.
There is no difference in the user interfaces or other functionality.
Cursor for exact
values
Rescale for fullscale
plot
Select
Signal source
time range
scaling
