The Agilent 1100 Series Control Module
Control Module Keys
Control Module Keys
NOTE A short description of the main keys and the product and serial number is located on
the rear of the control module.

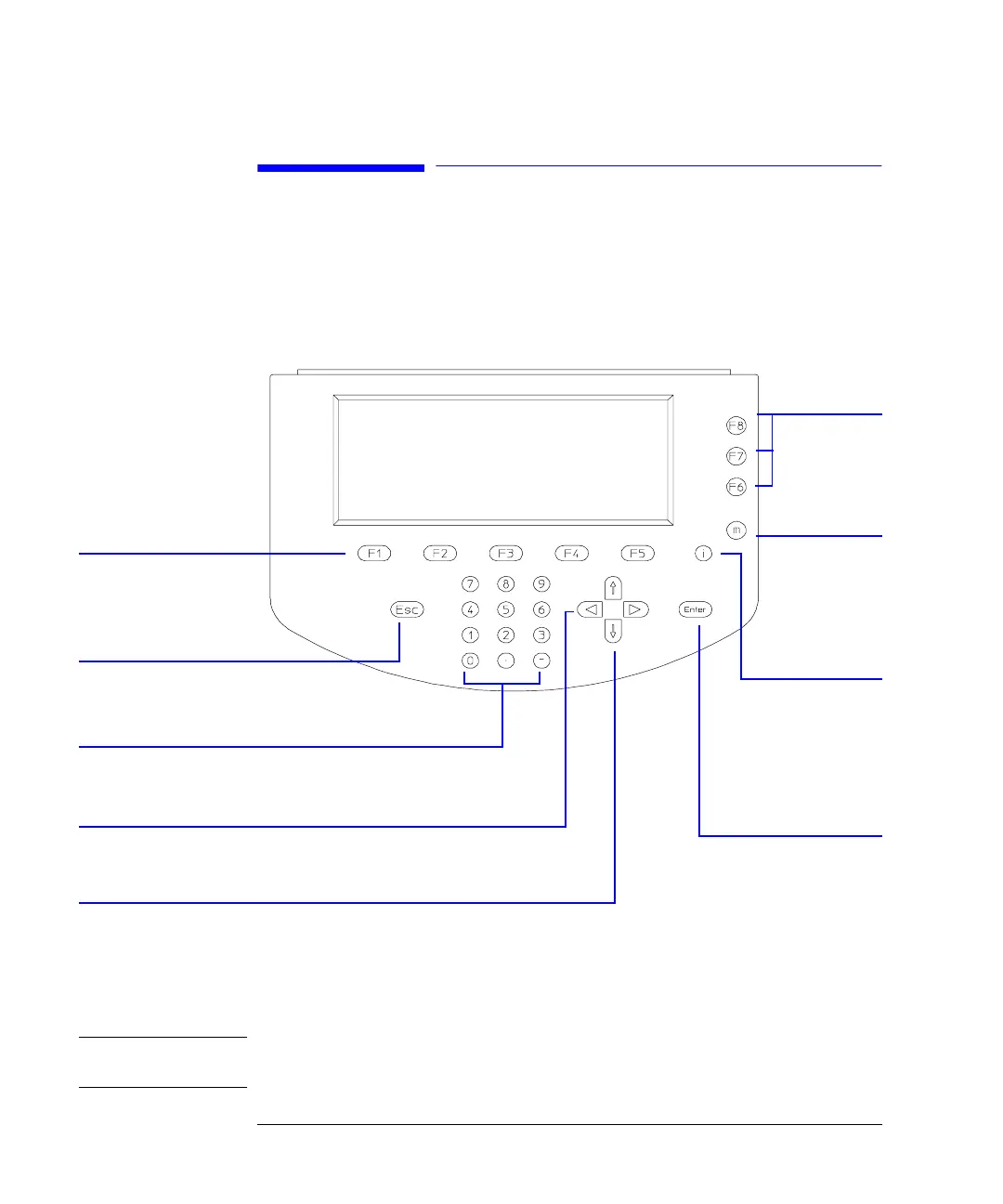

Figure 1 The Agilent 1100 Series Control Module
i (info) key
provides
context
specific
information
for current
item selected
Enter key
accepts current
input entry or
action
Selection keys
select settings, values or
alphabetic characters
Direction keys
move the cursor in
the screen display
Navigation keys
access different
software areas
Esc key
reverses current
input entry or
action
Numeric keys
enter numbers 0 to 9
Action keys
execute
specific
operations and
access Plot
screen
m (menu) key
provides
navigational
shortcuts and
actions
Alphanumeric keys
press numbers 1 to 9 multiple times
(e.g. 1 A B C, 2 D E F, 3 G H I ,…)
