Agilent 1260 Infinity DAD and MWD User Manual 201
Maintenance
10
Exchanging a Flow Cell
NOTE
Depending on the system setup, the inlet capillary
might be routed directly from the module above or
below to the cell and not to the capillary holder.
3

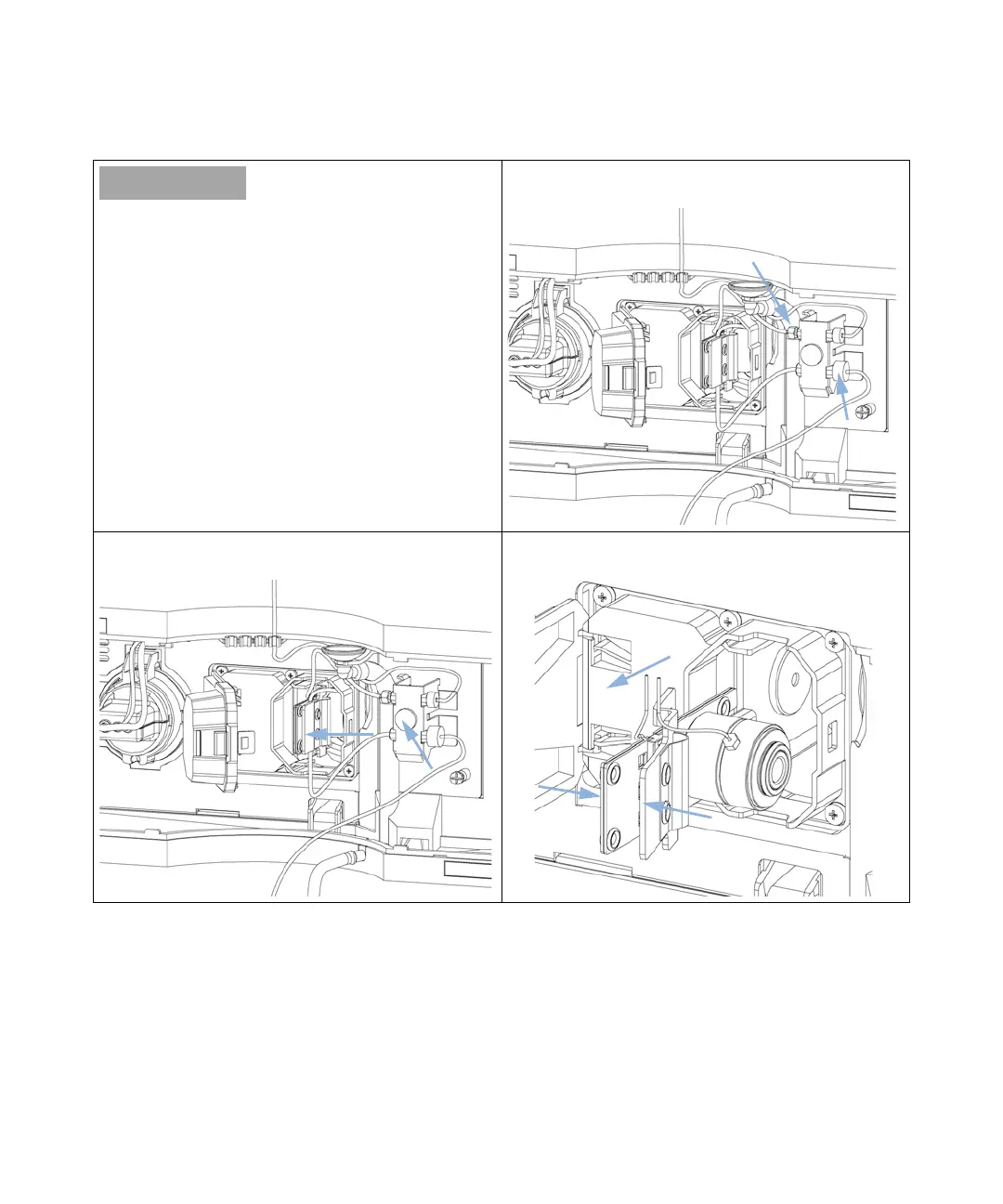

Disconnect the flow cell inlet capillary (top) and the waste
tubing (bottom) from the unions.
4 Loosen the thumb screw and remove the flow cell outlet
capillary (bottom) with the union.
5 Remove the flow cell while pressing the flow cell holder.
