96 Agilent 1260 Infinity DAD and MWD User Manual
5 Using the Detector
Setting up an Analysis
12 Click the button and select Change... to open the Signal Plot information.
Select the Pump: Pressure and the DAD A: Signal 254,4 as signals. Change the
Y-range for the DAD to 1 mAU and the offset to 20% and the pressure offset
to 50%. The X-axis range should be 15 minutes. Press OK to exit this screen.

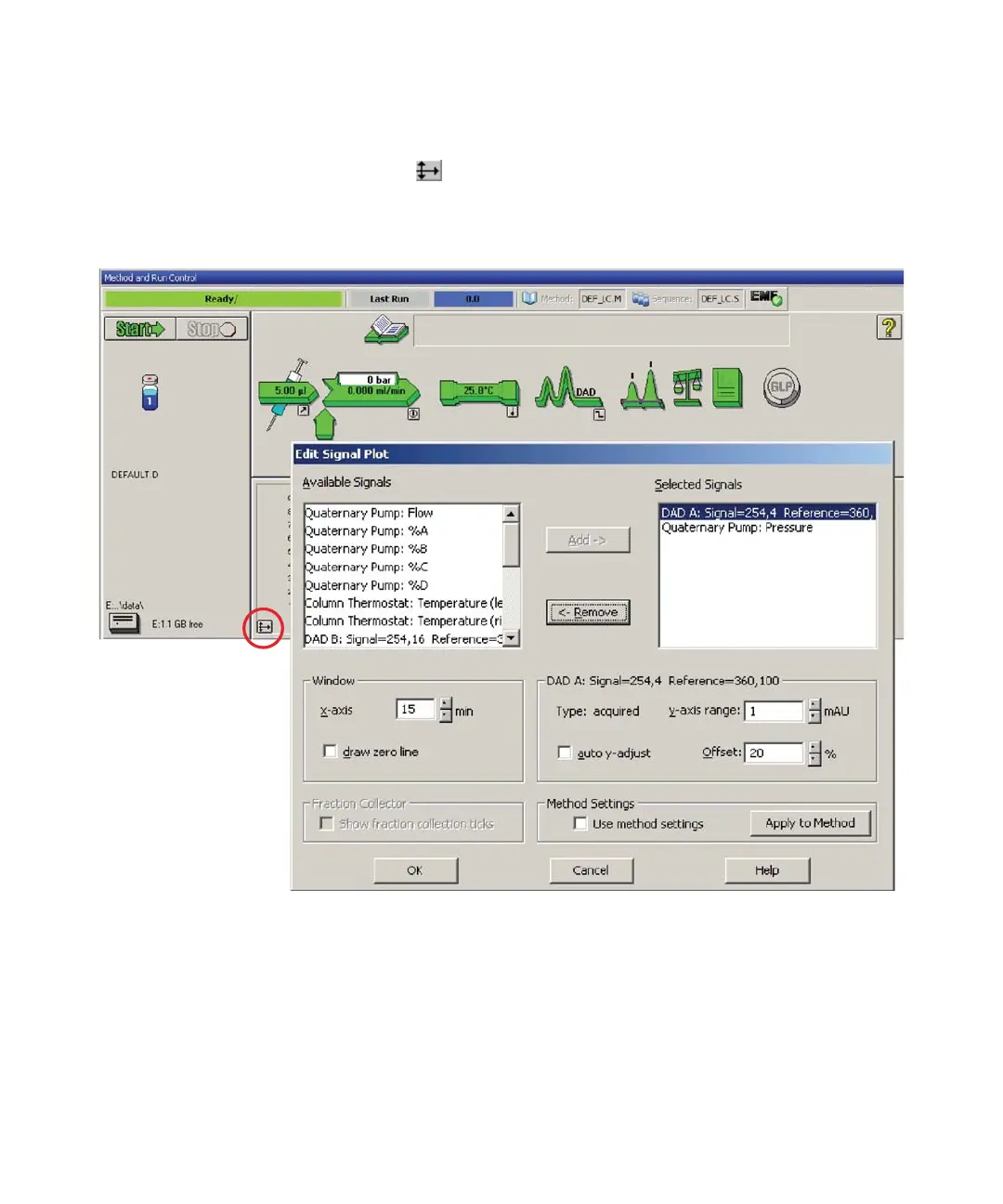

Figure 38 Edit Signal Plot Window
The Online Plot (Figure 39 on page 97) shows both, the pump pressure and
the detector absorbance signals. Pressing Adjust the signals can be reset to
the offset value and Balance would do a balance on the detector.
