Agilent Technologies 34420A User Manual

The Front-Panel Menu at a Glance

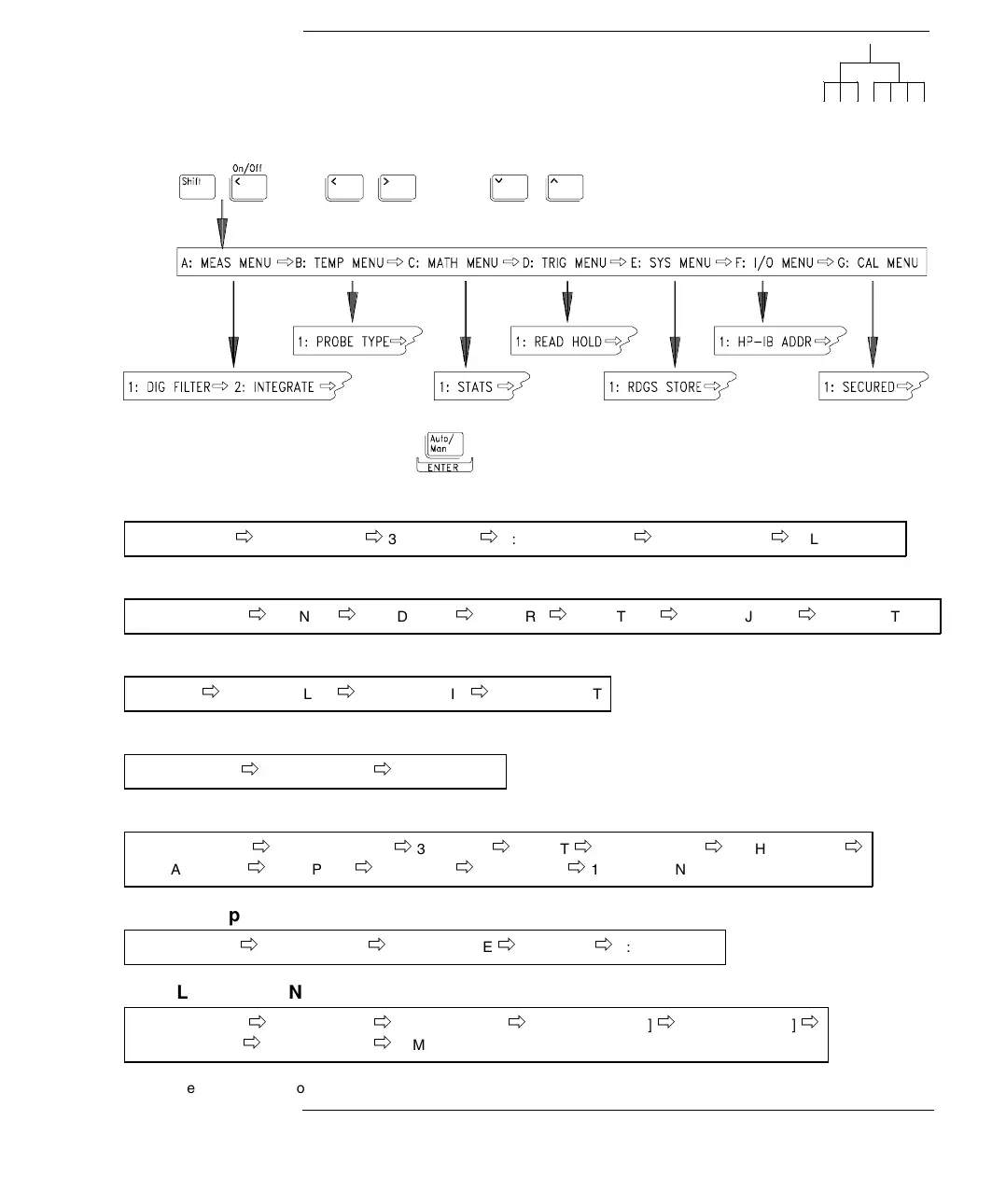

The menu is organized in a top-down tree structure with three levels.
A: MEASurement MENU
1: DIG FILTER Ø 2: INTEGRATE Ø 3: OCOMP Ω Ø 4: LOW POWER Ω Ø 5: LOW VOLT Ω Ø 6: LoV LIMIT Ω
B: TEMPerature MENU
1: PROBE TYPE Ø 2: UNITS Ø 3: RTD TYPE Ø 4:RTD Ro Ø 5: T/C TYPE Ø 6: COLD JUNCT Ø 7: JUNCT TEMP
C: MATH MENU
1: STATS Ø 2: NULL VALUE Ø 3: SCALE GAIN Ø 4: SCALE OFST
D: TRIGger MENU
1: READ HOLD Ø 2: TRIG DELAY Ø 3: N SAMPLES
E: SYStem MENU
1: RDGS STORE Ø 2: SAVED RDGS Ø 3: ERROR Ø 4: TEST Ø 5: CHART OUT Ø 6: CHART SPAN Ø
7: CHART NULL Ø 8: DISPLAY Ø 9: COMMA Ø 10: PRESET Ø 11: REVISION
F: Input/Output MENU
1: HP-IB ADDR Ø 2: INTERFACE Ø 3: BAUD RATE Ø 4: PARITY Ø 5: LANGUAGE
G: CALibration MENU
1: UNSECURED Ø [1: SECURED] Ø [2: CALIBRATE] Ø [3: CHART ZERO] Ø [4: CHART GAIN] Ø
[5: INJECTED I] Ø 6: CAL COUNT Ø 7: MESSAGE
NOTE: The commands enclosed in square brackets ([ ]) in the CAL MENU are "hidden" unless the meter is UNSECURED for calibration.
To turn on menu press:
To move left/right To move up/down
To enter a command press:
3
