Agilent 6500 Series Q-TOF LC/MS Maintenance Guide 65
Maintenance 2
To remove the desolvation assembly

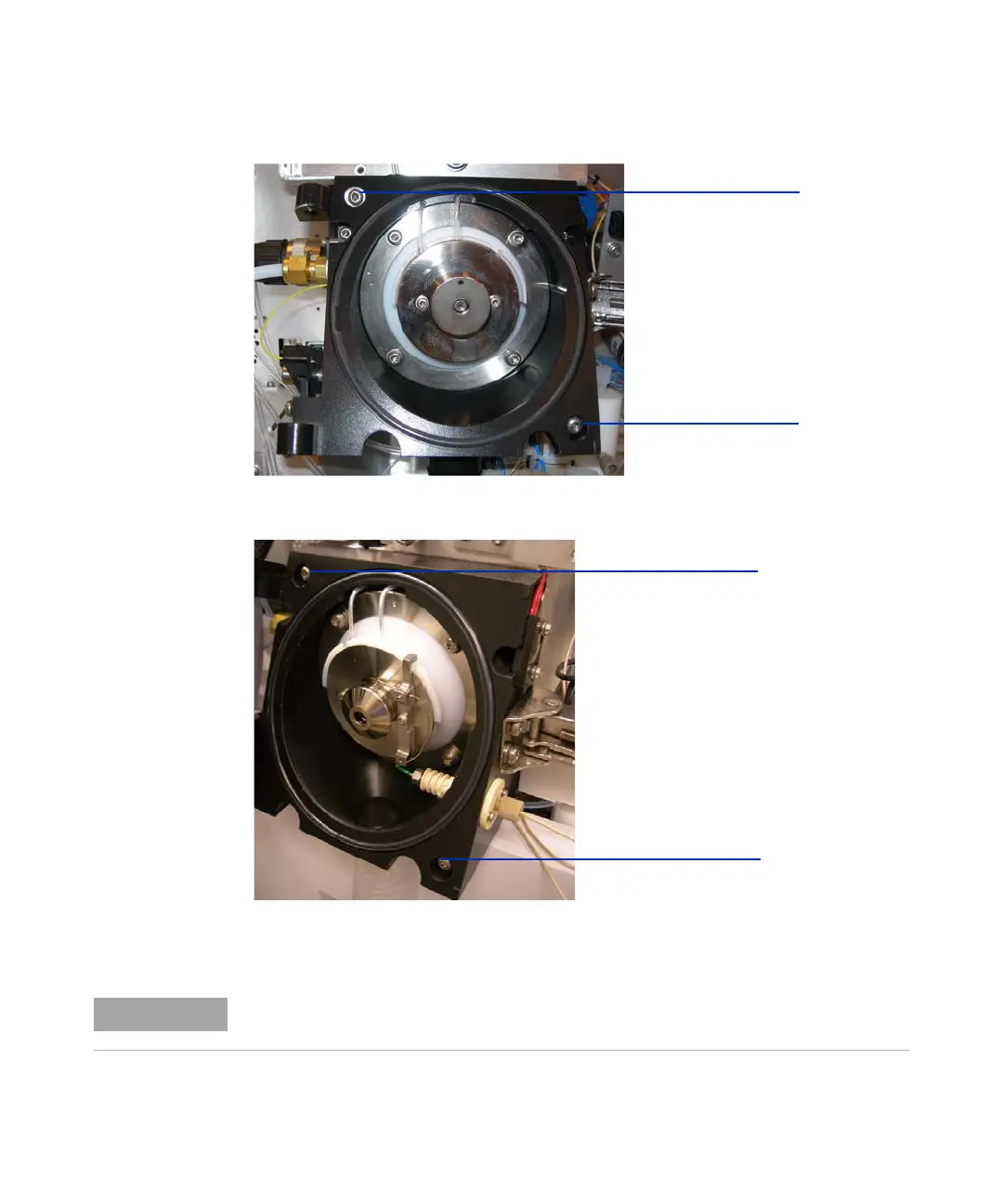

Figure 17 Remove the retaining screws. (6510 and 6520)
Figure 18 Remove the retaining screws. (6520B/6530/6530/6540/6550 with IRM)
9 Slide the desolvation assembly off of the support rods.
Retaining screw
Retaining screw
Retaining screw
Retaining screw
NOTE
The capillary column is contained in the desolvation assembly. It does not need to be
removed in order to remove the desolvation assembly.
