The Logging Application Applications
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
171
21 Press [Analysis]. The Logging Analysis screen appears as shown in Figure 123
for the Agilent 8164A and Figure 124 for the Agilent 8163A.
Setting Analysis Parameters
22 To edit the power units used for the analysis, move to [W], press Enter, move
to <dBm>, <W>, or <dB>, and press Enter. See “What are the Power Units ?”
on page 72 for an explanation of power units.
23 To edit the reference mode used for the analysis, move to <Ref Mode>, press
Enter, move to one of the following referencing modes:

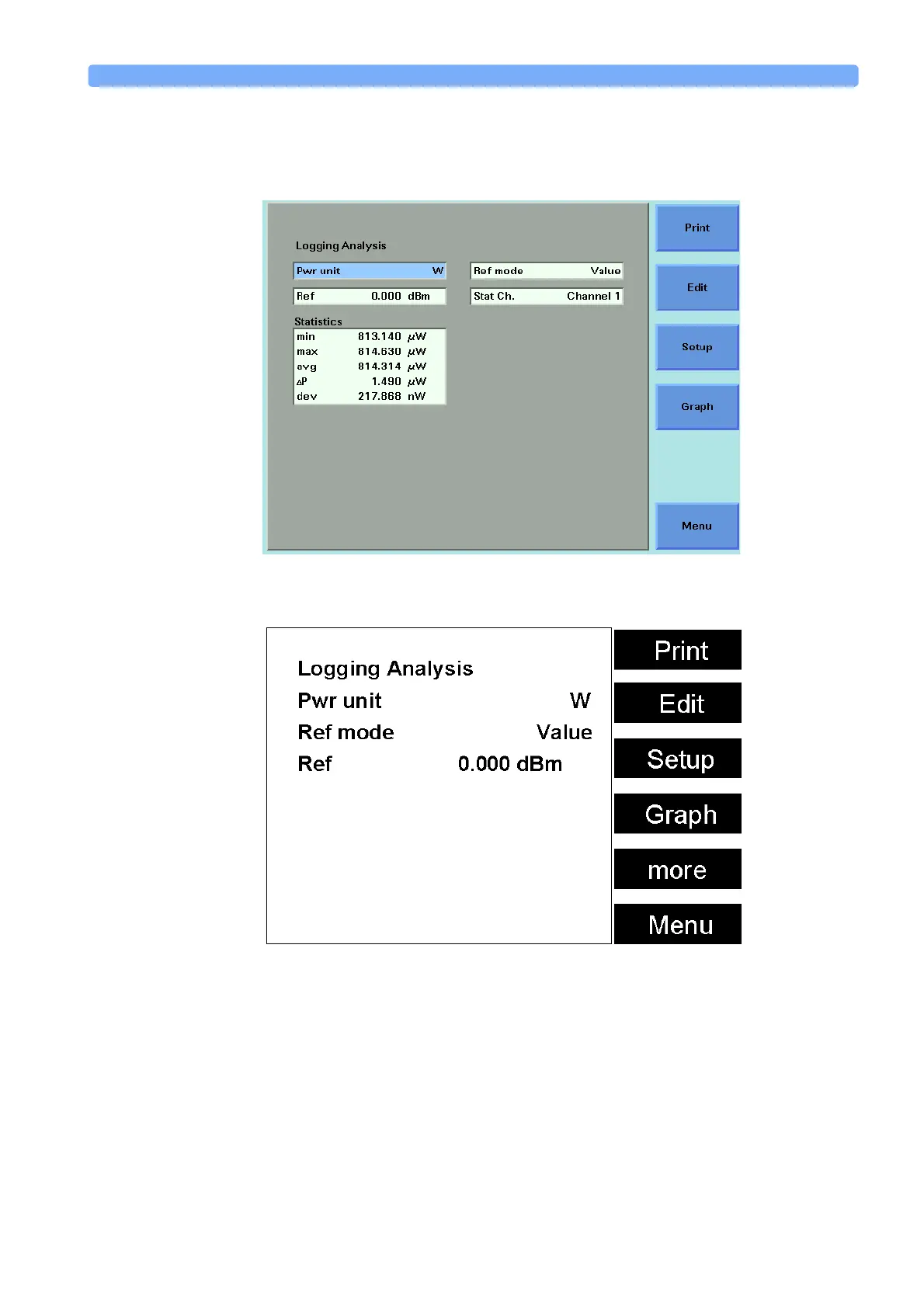

Figure 123 The Agilent 8164A Logging Analysis Screen
Figure 124 The Agilent 8163A Logging Analysis Screen - First Screen
