Applications The PACT Application
192 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition
29 Press [Setup]. The Logging Analysis screen appears as shown in Figure 123.
The sweep parameters are shown.
The following results of the PACT Measurement are shown for each selected
Power Meter channel:
– min. Loss, the minimum loss value for the particular Power Meter channel
for the sweep, and
– max. Loss, the maximum loss value for the particular Power Meter channel
for the sweep.
On-Screen Messages
The messages listed in the table below may appear at the top of the screen during
the PACT application.

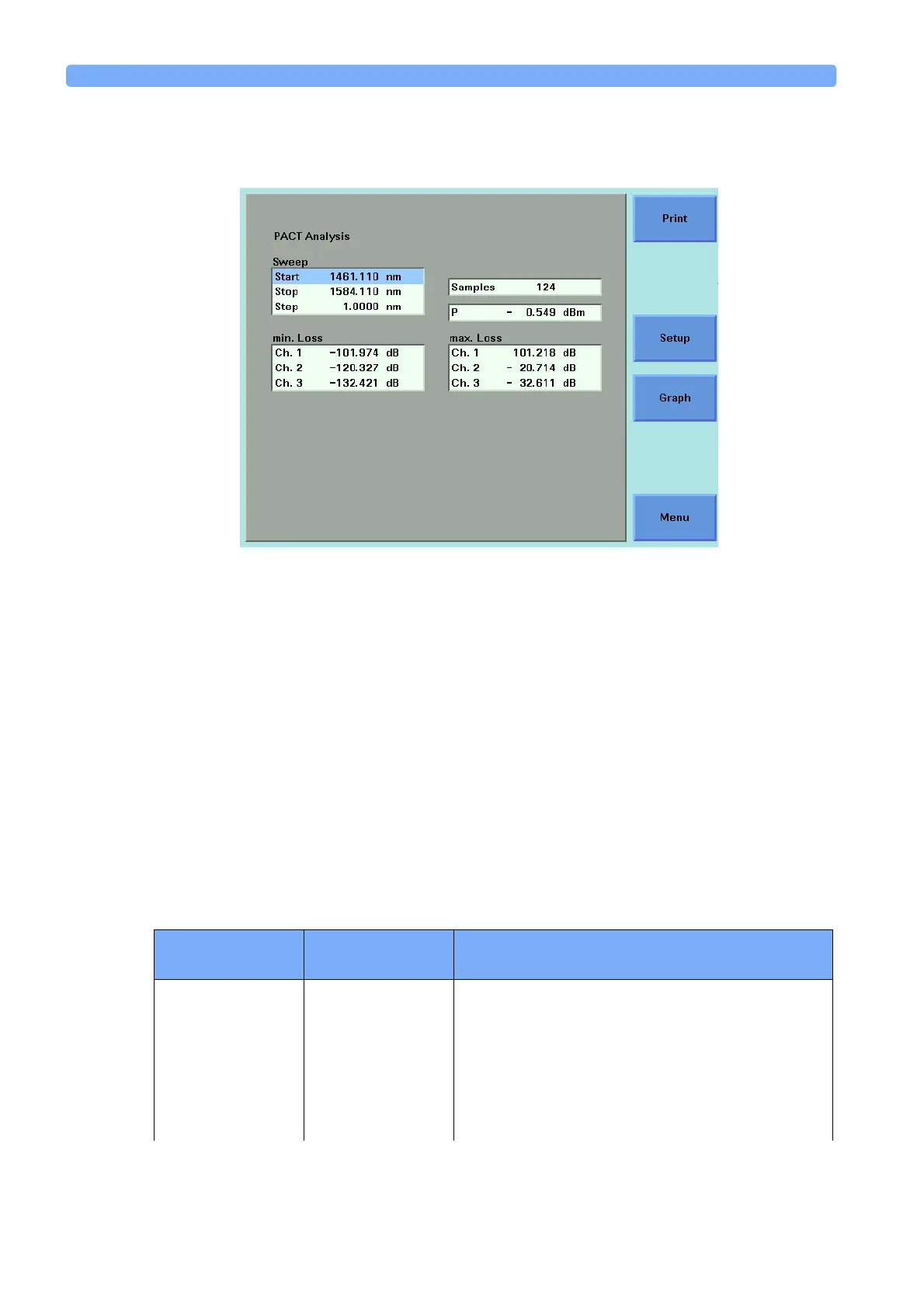

Figure 143 The PACT Analysis Screen
Table 6 PACT Application On-Screen Messages
Agilent 8163A
Message
Agilent 8164A
Message
Description
SLck SLock
The Tunable Laser module is locked. No measurement is
possible until you unlock the module, see “How to
Lock/Unlock the High-Power Laser Sources” on page 60
for details.
RiLck RILock
The Remote Interlock Connector of your mainframe is
open. No measurement is possible until the connection at
the Remote Interlock Connector closes, see “The Remote
Interlock (RIL) connector” on page 218 for details.
