Applications Recording Measurement Results
194 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition
2 Move to <Pmax curve> and press Enter. The Pmax Curve Screen, as shown in
Figure 144, appears.
3 See “Working with Application Graphs” on page 155 for information on
zooming in and out.
4 Press [Close] to exit from the Pmax Curve application.
Recording Measurement
Results
Printing Application Measurement
Results
You can print application measurement results by completing the following
instructions.
1 Perform any of the following applications as described above:
– “The Logging Application” on page 164,
– “The Stability Application” on page 173, or
– “The PACT Application” on page 182.
2 Move to the Analysis Screen.

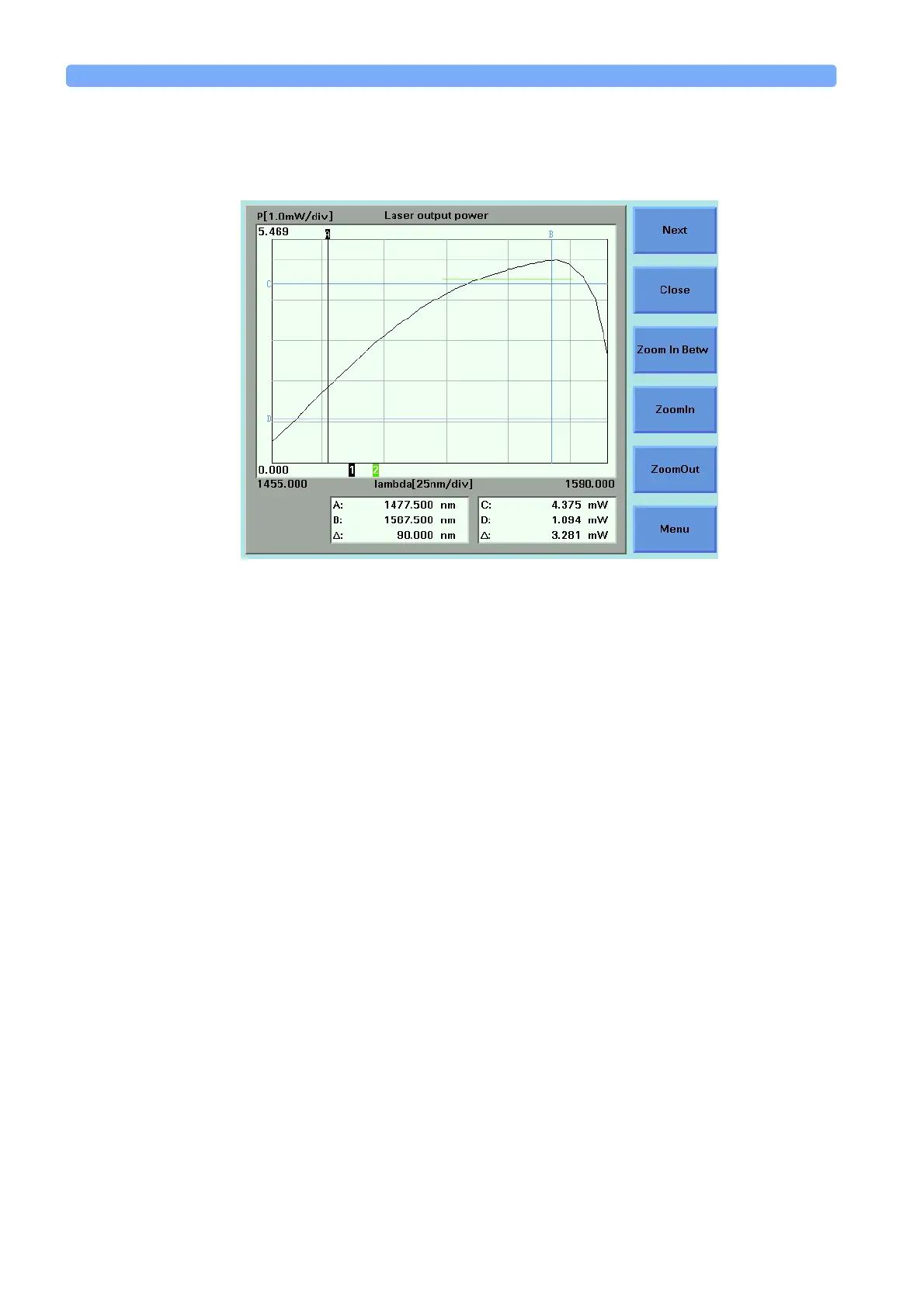

Figure 144 The Pmax Curve Screen
