How to Use the Cursor Key
You can move the highlighted marker between parameters using the [Cursor]
hardkey.
When editing a parameter, see “How to Change the Value of a Parameter” on
page 46, the up and down cursor keys can be used to increment and decrement the
value of a digit and the left and right cursor keys can be used to move the
highlighted digit left and right.
How to Use the Numerical Keypad
NOTE The Numerical Keypad is only available if you use the Agilent 8164A.
You can use the Numerical Keypad to change the value of a parameter. See “How
to Change the Value of a Parameter” on page 46.
How to Use the Modify Knob
NOTE The Modify Knob is only available if you use the Agilent 8164A.
You can use the Modify Knob to navigate around the display. When you turn the
Modify Knob through one click, one action is performed.
Turning the Modify Knob clockwise moves the highlighted marker right and then
down. Turning the Modify Knob anti-clockwise moves the highlighted marker
left and then up.
You can use the Modify Knob to change the value of a parameter. See “How to
Change the Value of a Parameter” on page 46.

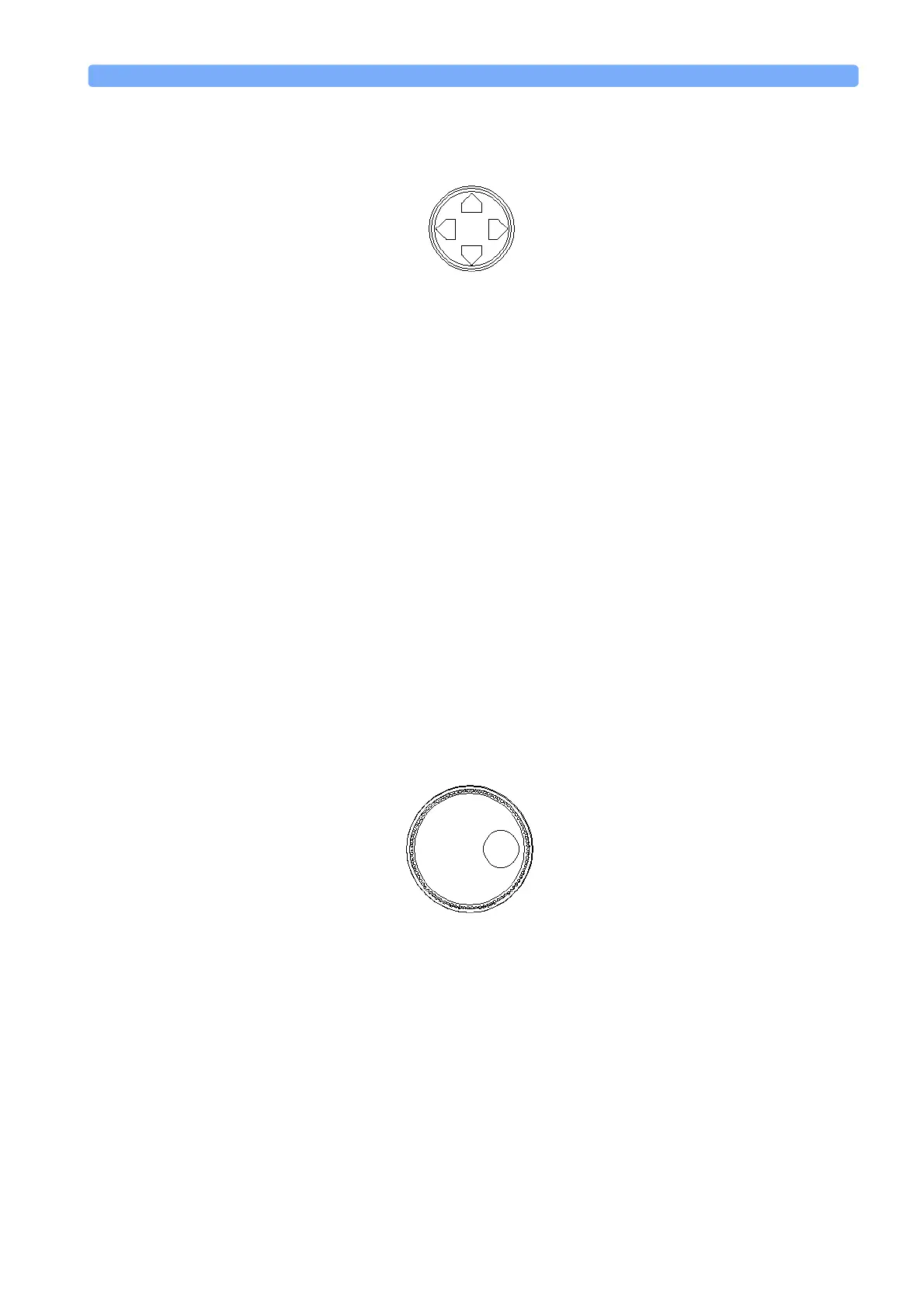

Figure 13 The Cursor Key
Figure 14 The Modify Knob
