Getting Started A Description of the User Interface
40 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition
How to Change Channel
You can navigate between module channels by pressing the Channel hardkey.
You can use this key when either the overview screen or the details screen is
displayed.
How to Access the Details Screen
You can access the parameters of a module that are not shown on the overview
screen by pressing Channel to select the channel and pressing the [Details]
softkey. You should see the Details screen as shown in Figure 15, Figure 16, or
Figure 17.

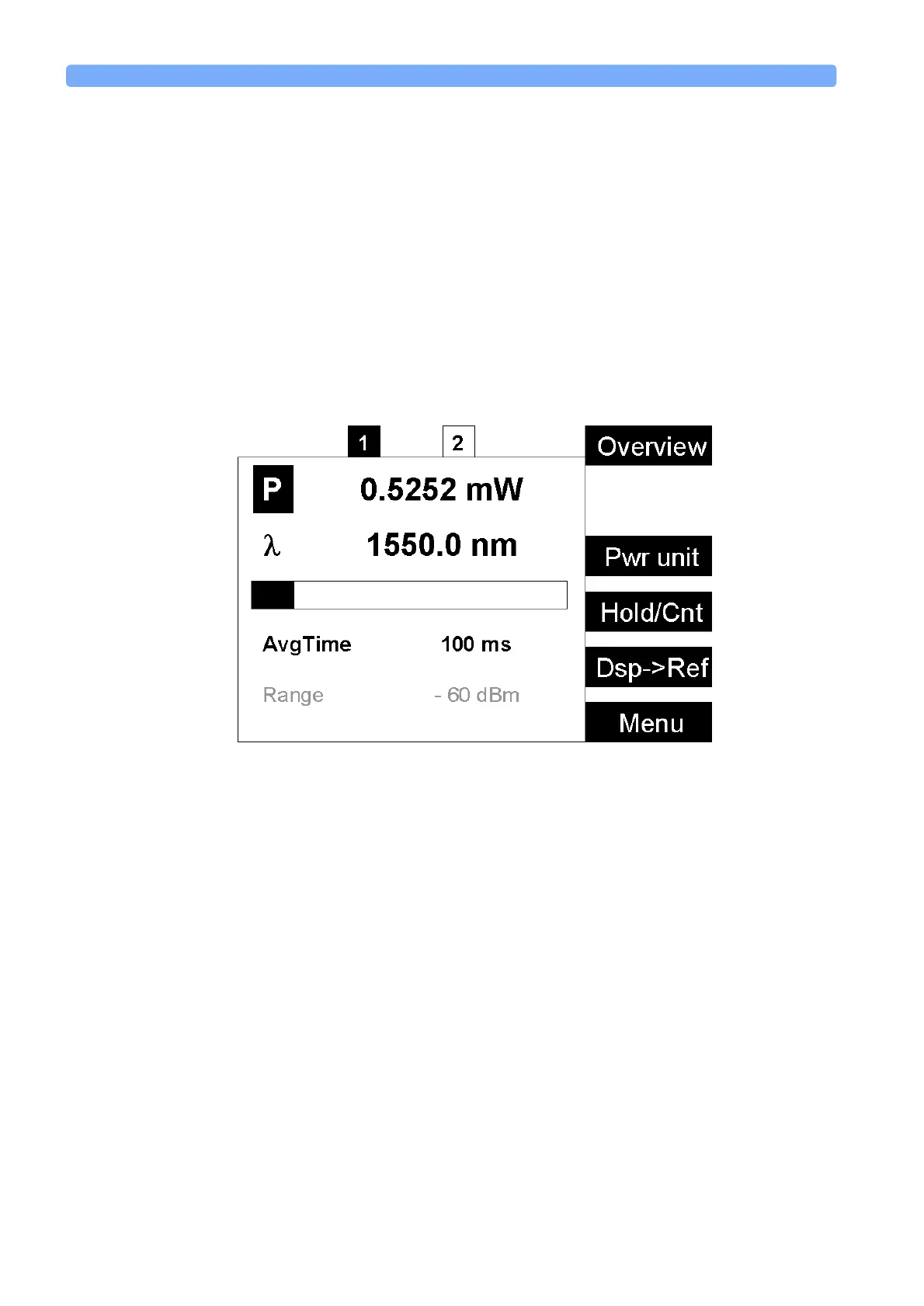

Figure 15 The Agilent 8163A’s Details Screen for a Power Sensor Channel
