Installation and Maintenance AC Line Power Supply Requirements
202 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition
AC Line Power Supply
Requirements
The Agilent 8163A Lightwave Multimeter System can operate from the single-
phase AC power source that supplies between 100 V and 240 V at a frequency in
the range 50 to 60 Hz. The maximum power consumption is 120 VA with all
options installed.
The Agilent 8164A Lightwave Measurement System can operate from any
single-phase AC power source that supplies between 100 V and 240 V at a
frequency in the range from 50 to 60 Hz. The maximum power consumption is
270 VA with all options installed.
The Agilent 8166A Lightwave Multichannel System can operate from any single-
phase AC power source that supplies between 100 V and 240 V at a frequency in
the range from 50 to 60 Hz. The maximum power consumption is 450 VA with
all options installed.
Line Power Cable
In accordance with international safety standards, the instrument has a three-wire
power cable. When connected to an appropriate AC power receptacle, this cable
earths the instrument cabinet.
CAUTION Please note that the power key on the front panel of the Agilent 8164A Lightwave
Measurement System does not stop the flow of power to the instrument. The
power key allows you to switch between stand-by mode and power-on mode.
When the green power-on LED is lit, you can use the instrument. When the
orange stand-by mode LED is lit, the Lightwave Measurement System is in stand-
by mode. Do not remove the instrument covers - the power supply is still
operating in stand-by mode.
If you need to turn off the power, unplug the instrument at the mains or remove
the power cable connector from the appliance coupler at the rear of the
instrument. For this reason, the power cable connection should be easily
accessible - allowing you to turn off the power quickly. If the instrument is in a

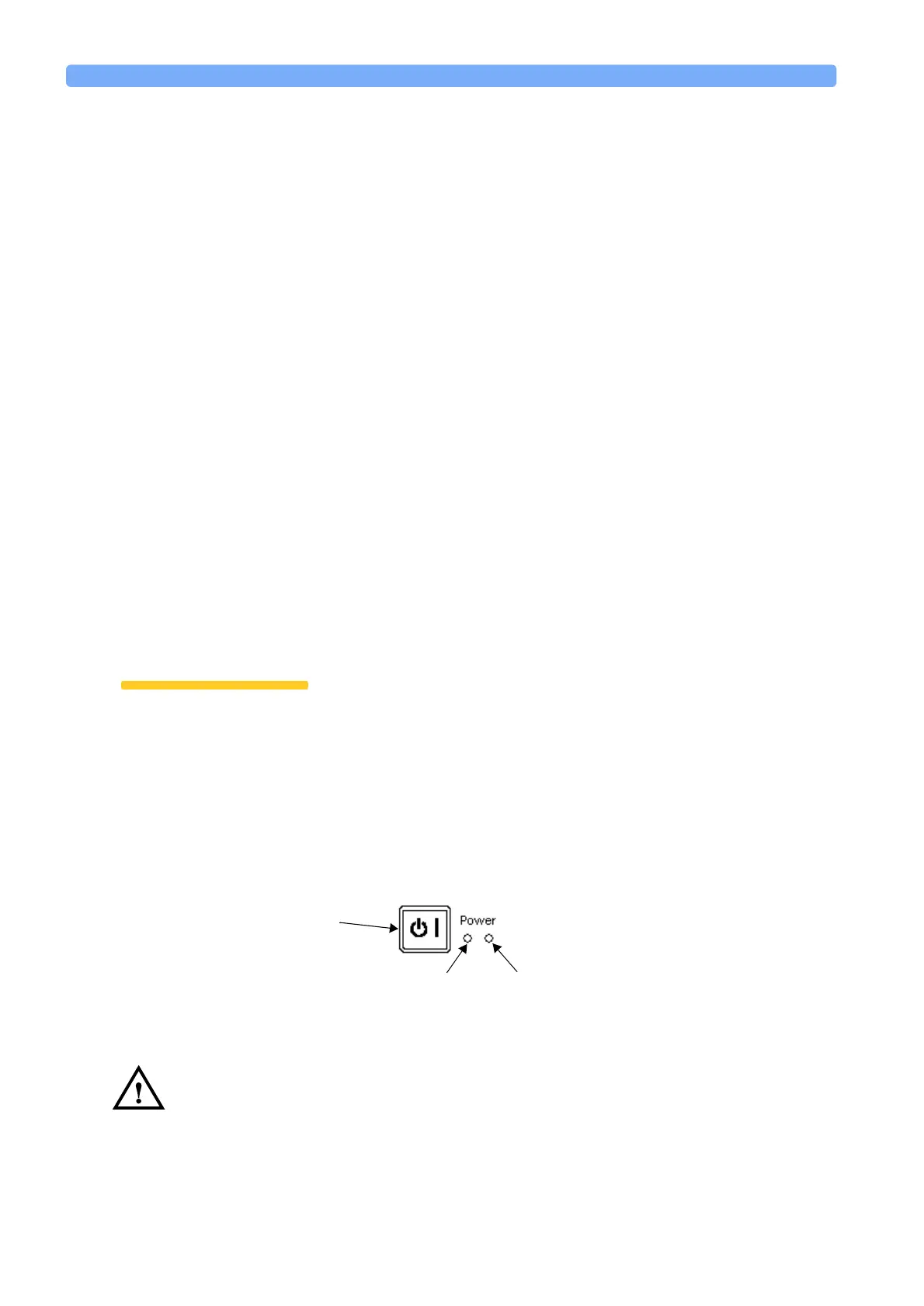

Figure 148 Agilent 8164A Lightwave Measurement System Power Key
Power-on LED (green)
Stand-by mode LED (orange)
Power Key
