A Description of the User Interface Getting Started
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
37
How to Navigate/Modify the Display
Overview Screen
Figure 10 shows the overview screen for the Agilent 8163A Lightwave
Multimeter, this screen is shown immediately after start-up. It shows the most
important parameters of all installed modules.

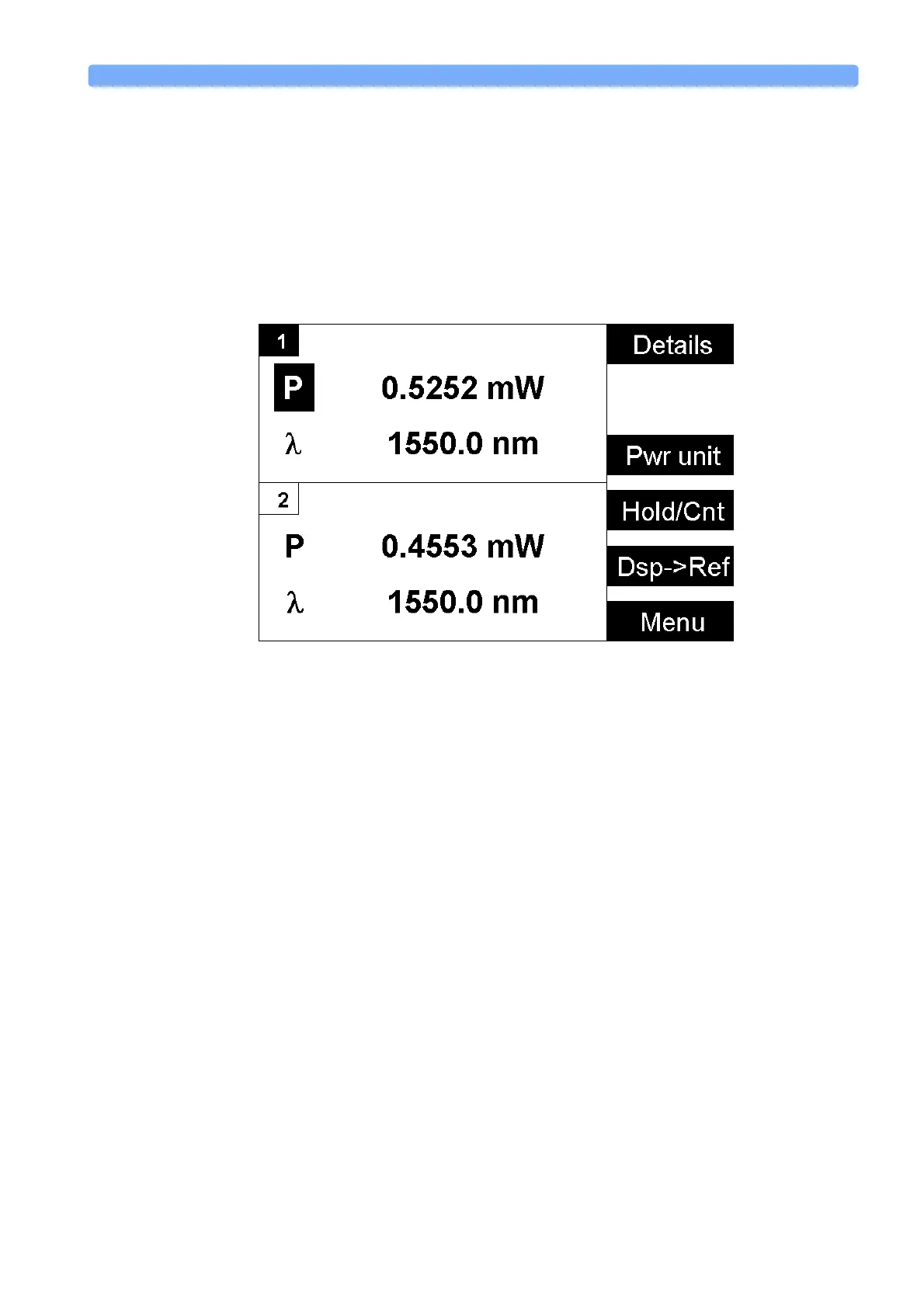

Figure 10 The Agilent 8163A’s Overview Screen
