Getting Started A Description of the User Interface
38 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition

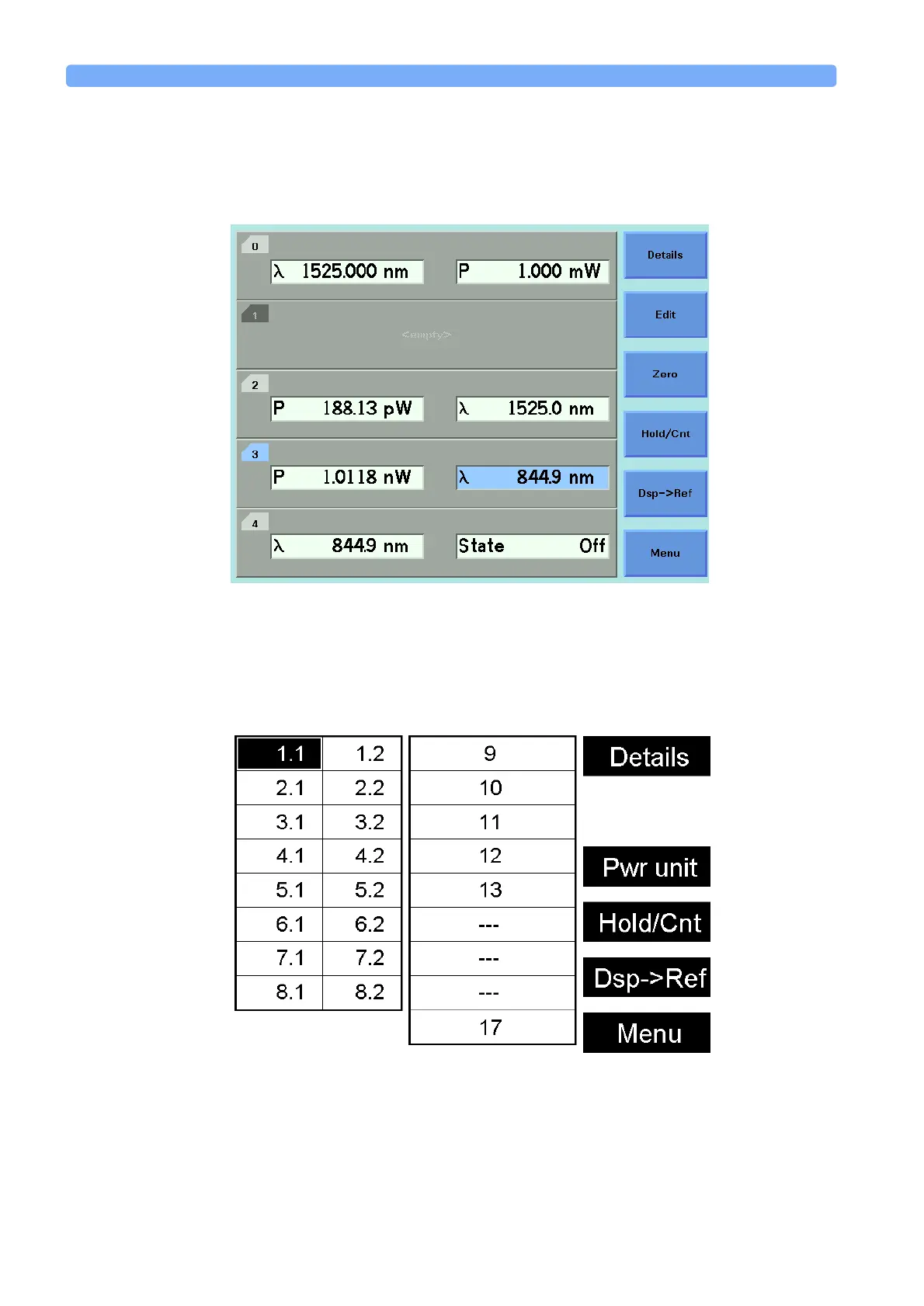

Figure 11 shows the overview screen for the Agilent 8164A Lightwave
Measurement System, this screen is shown immediately after start-up. It shows
the most important parameters of all installed modules
Figure 12 shows the overview screen for the Agilent 8166A Lightwave
Multichannel System, this screen is shown immediately after start-up. It shows
the module slots that are occupied.
Figure 11 The Agilent 8164A’s Overview Screen
Figure 12 The Agilent 8166A’s Overview Screen
