Adjusting the scoring blade for the RAPIDO scoring tool
• Release the clamping screw, approx. 2 turns.
• Turn the spindle until the required dimension is reached. (1 turn = 0.5 mm)
• Tighten the clamping screw.
• Make a test cut and, if necessary, correct the cutting width again as descri-
bed above.

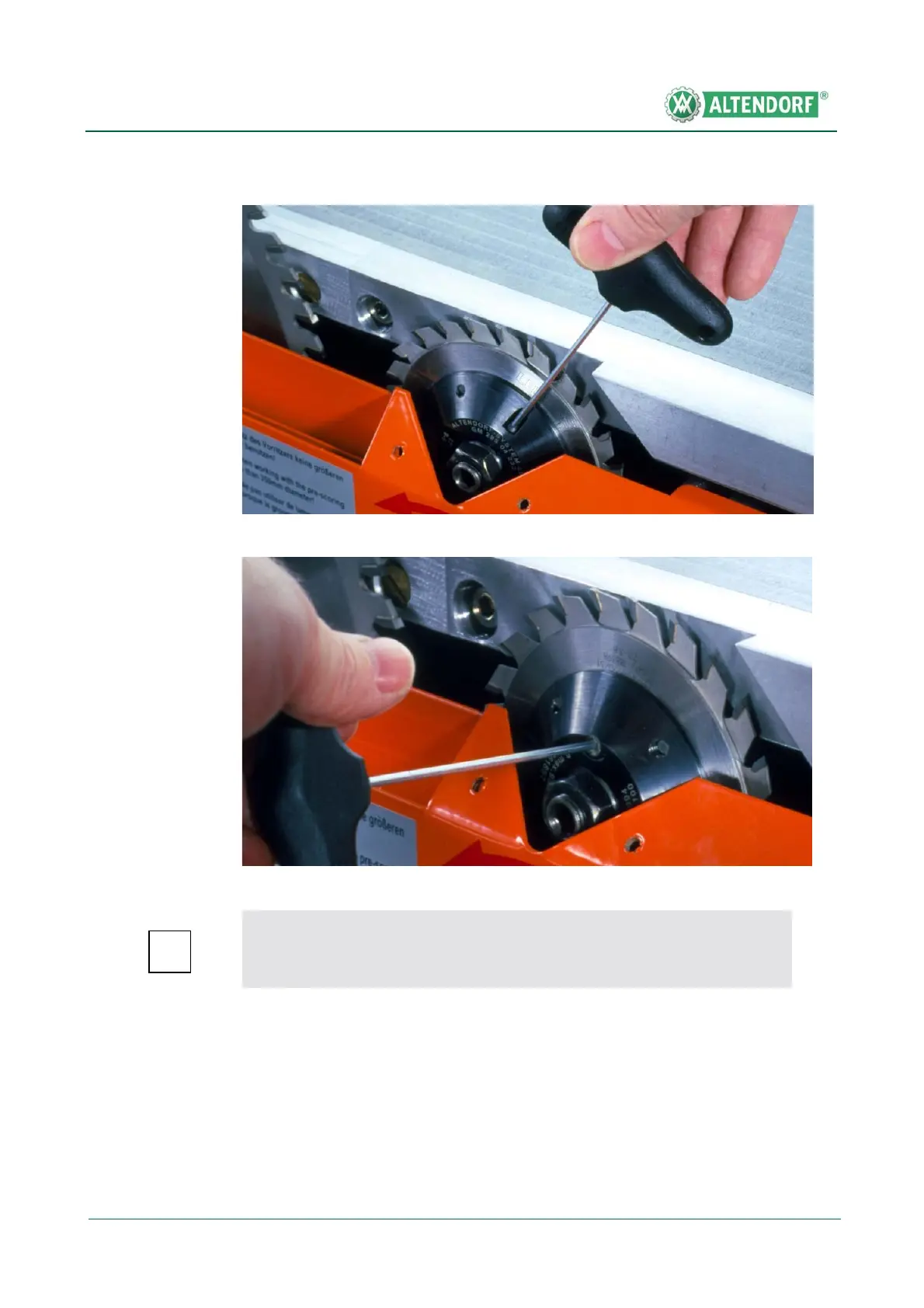

Fig. 6-63 Release the clamping screw.
Fig. 6-64 Adjust the spindle.
i
Note!
Only use the supplied tools for adjustment work!
