Replacing the scoring blade for RAPIDO
Remove the adjustment unit from the machine. It may be necessary to loosen
the clamping screw because an excessively tight clamping screw can cause
the adjustment unit to jam on the shaft!
Dismantling
Using the Allen wrench:
• Release the clamping screw (1), turn the spindle (2) approx. 3 – 4 turns
clockwise until the flange (3) can be removed from the holder (4).
Using the internal torx wrench:
• Undo the screws (5).
• Remove the circular saw blade (6).
• Carefully clean the flange (3) and screws (5). Make sure that the running
and flange surfaces are dry and free of dust.

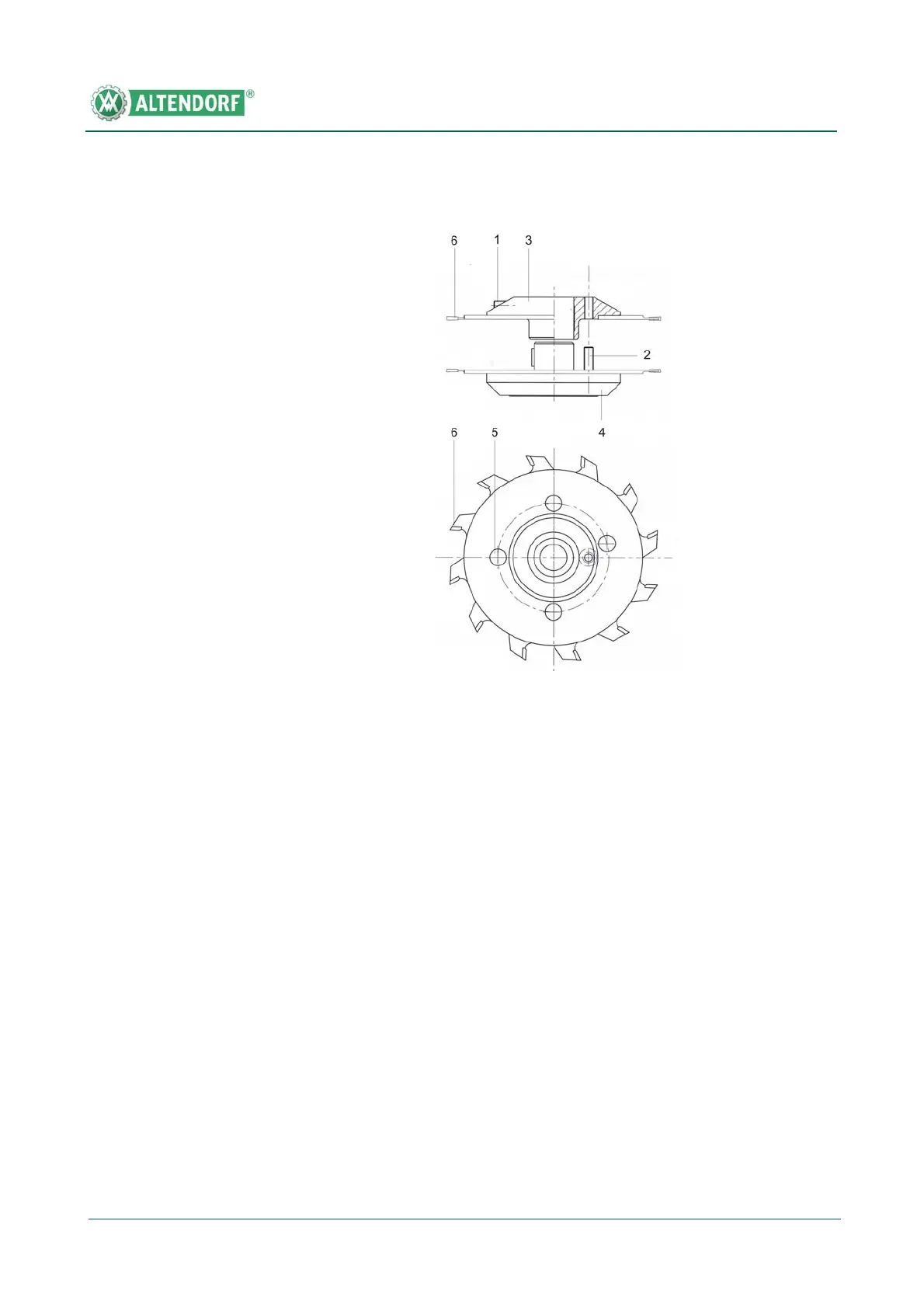

Fig. 6-65 RAPIDO saw blades
