Operating
144
Operating
0000010038-003- GB
RAPIDO - PLUS
The 3-axis scoring system allows motorised positioning of the cutting height,
width and cutting width. All settings can be entered via the keypad while the
machine is running, and are shown on the display.
Replacing saw blades

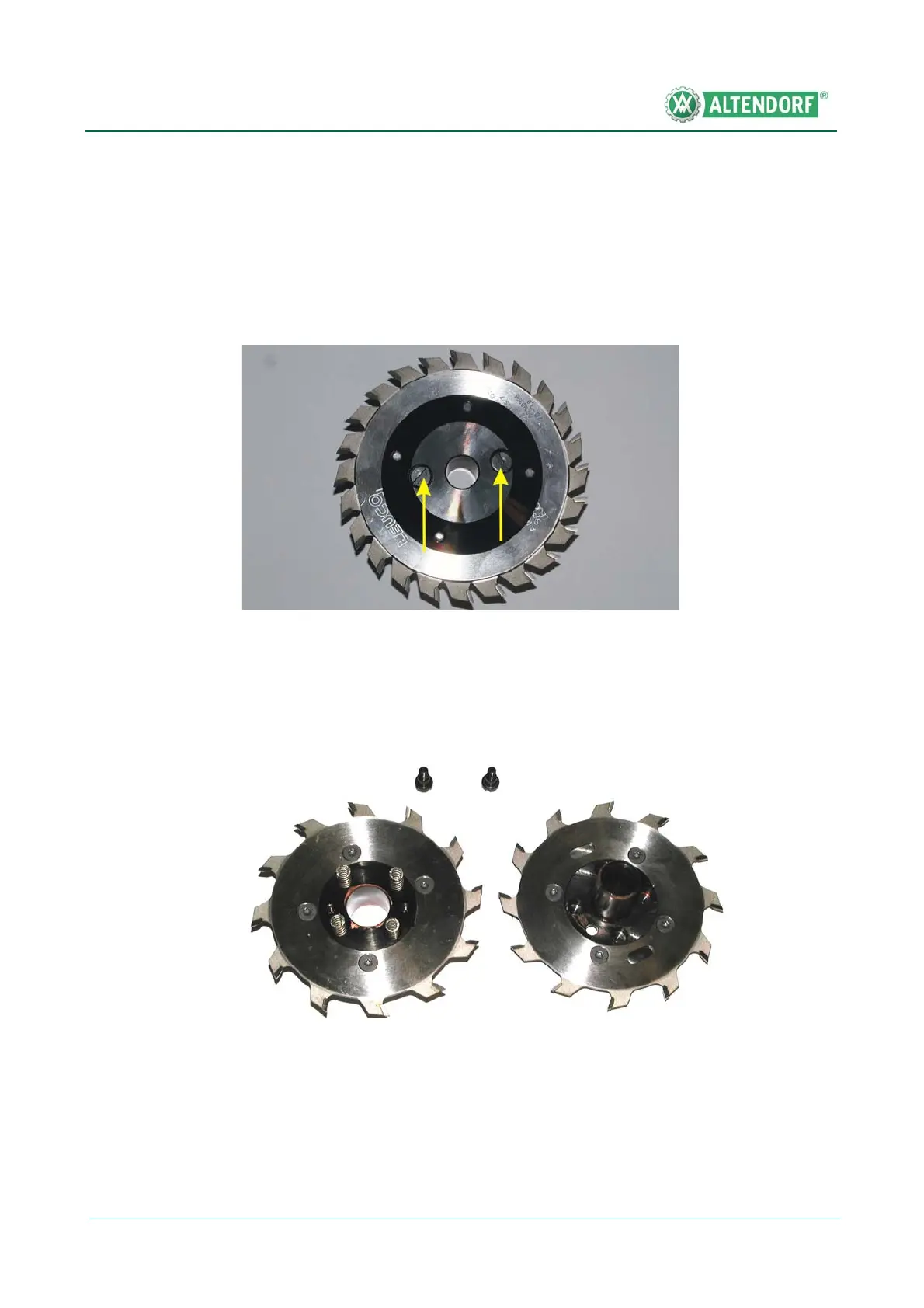

Fig. 6-68 RAPIDO Plus
[1] Remove the adjustment unit from the machine.
[2] Undo the screws and remove.
[3] You can now pull the adjustment unit apart
Fig. 6-69 Disassembled RAPIDO Plus
