Operating
145
0000010038-003- GB
Operating

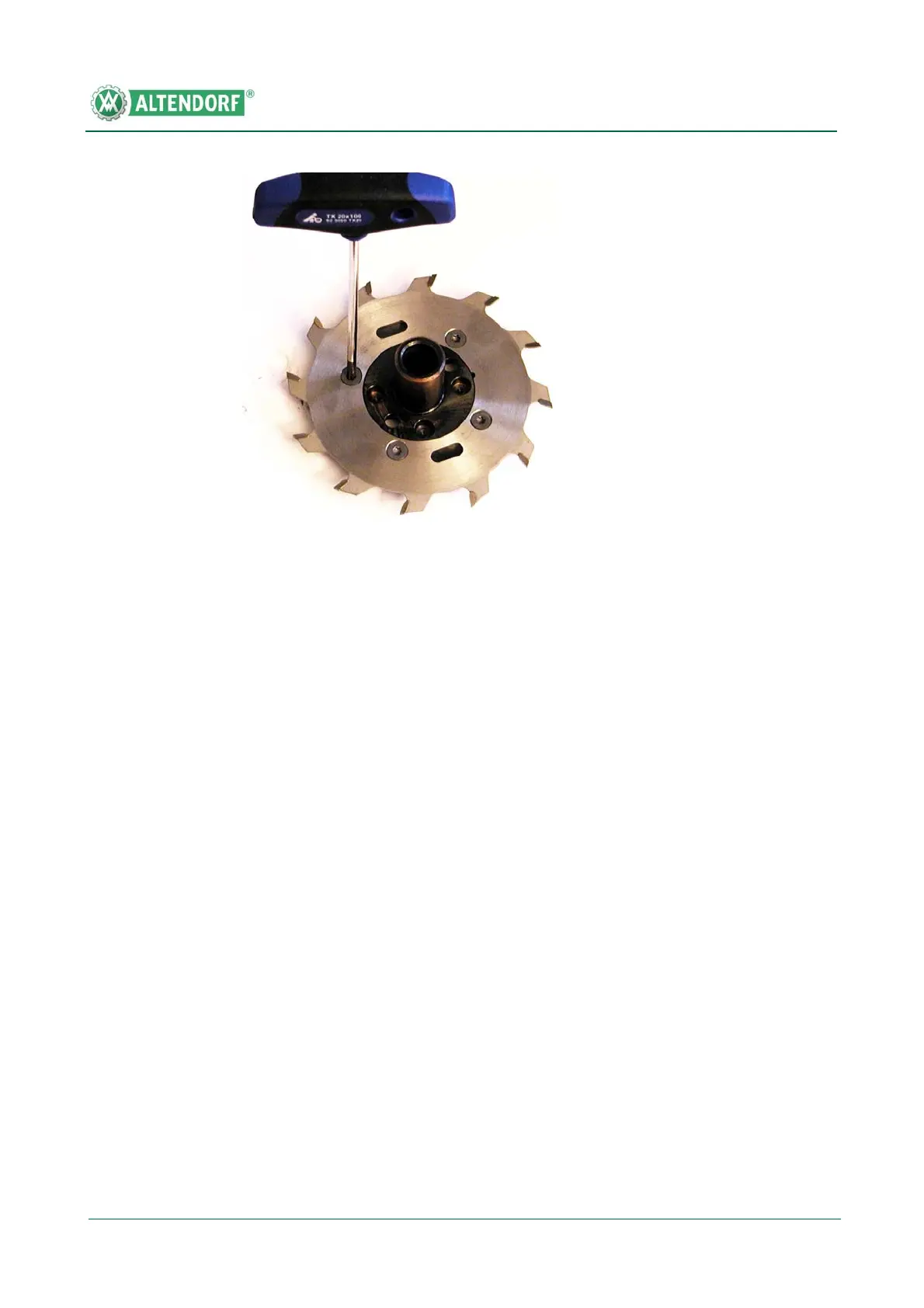

Fig. 6-70 RAPIDO-Plus, fitting the saw blade
[1] Undo the screws
[2] Remove circular saw blade
[3] Carefully clean the flange and screws
[4] Fit a new saw blade, paying attention to the rotational direction and hole pattern!
[5] Insert screws and tighten with a torque of 8.6 Nm
[6] Proceed in the same manner for the other half of the adjustment unit
