Transport, siting and installation
58
Transport, siting and installation
0000010038-003- GB
Crosscut-mitre fence WGA_LD
Crosscut-mitre fence with digital angle and length measurement
Assembly of the crosscut fence
• Place the WGA_LD on the rear fence surface
• Push the bolt for the degree setting clamp over the groove in the degree
scale, and push the guide carriage into the middle.
• Position the T-nut for pivot clamping so that there is enough clearance to
the pivot
• Push the ball bearing over the groove in the sliding table
• Carefully turn the crosscut-mitre fence 90° and raise it so that the bolt
enters the degree scale groove and the ball bearing enters the sliding table
groove

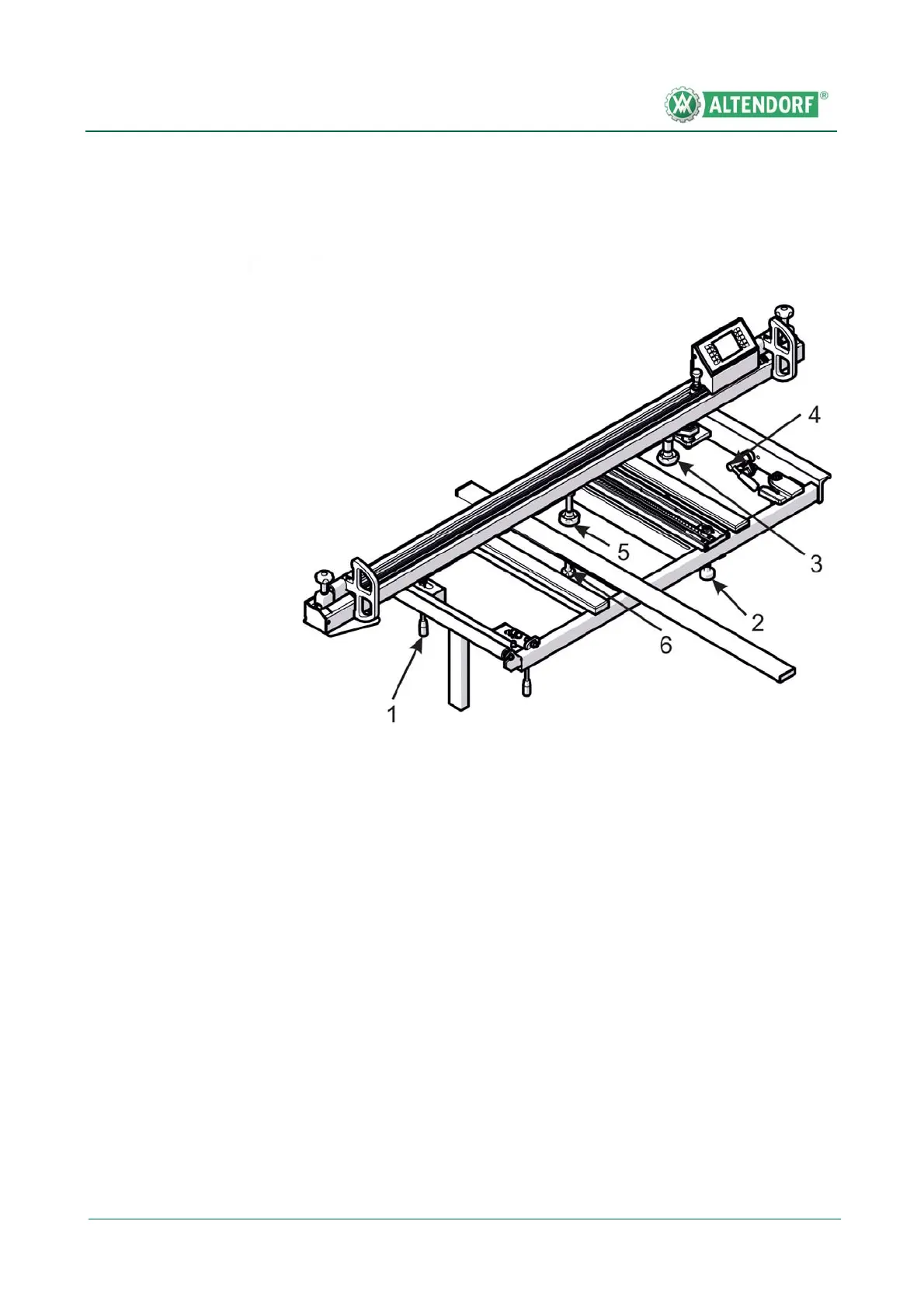

Fig. 5-18 WGA_LD
[1] Clamping lever 90° position
[2] Indexing bolt, angle measurement
[3] Clamping pivot point
[4] Clamping lever
[5] Clamping, angle measurement
[6] Clamping, C profile
