Transport, siting and installation
59
0000010038-003- GB
Transport, siting and installation
• Lower the crosscut-mitre fence so that the bolt enters the guide carriage
hole
• Turn in clamping screw [5] loosely
• Push the T-nut with clamping screw [3] into the pivot
• Swivel the WGA to its 90° position and clamp with clamping lever [1].
• Tighten the clamping screws
Operating elements

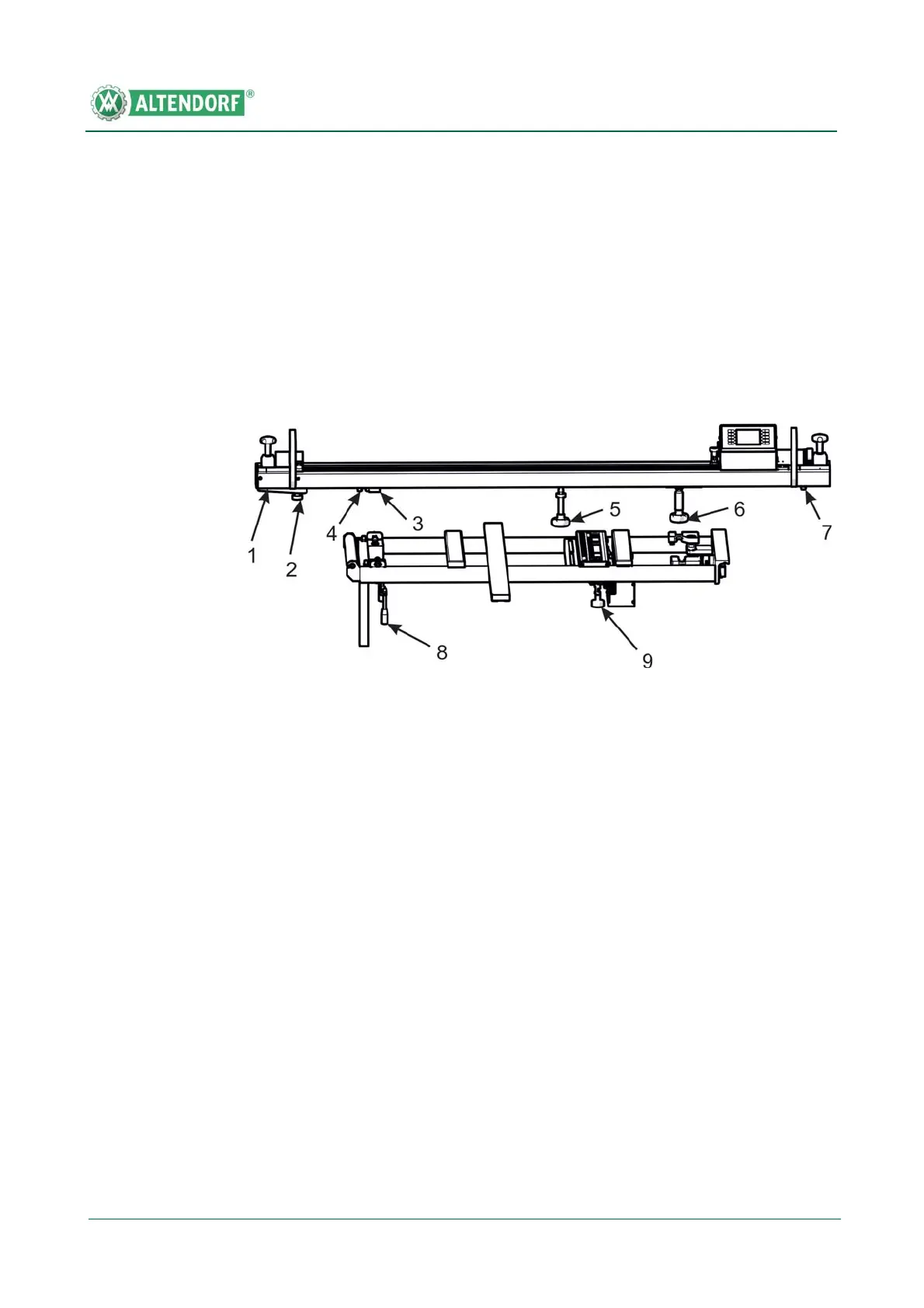

Fig. 5-19 WGA_LD
[1] Telescopic extension
[2] Clamping, telescopic extension
[3] 90° stop
[4] Guide groove, 90° position
[5] Clamping degree scale
[6] Clamping pivot point
[7] Guide roller, sliding table
[8] Clamping lever, 90° position
[9] Indexing bolt, angle measurement
