Transport, siting and installation
60
Transport, siting and installation
0000010038-003- GB

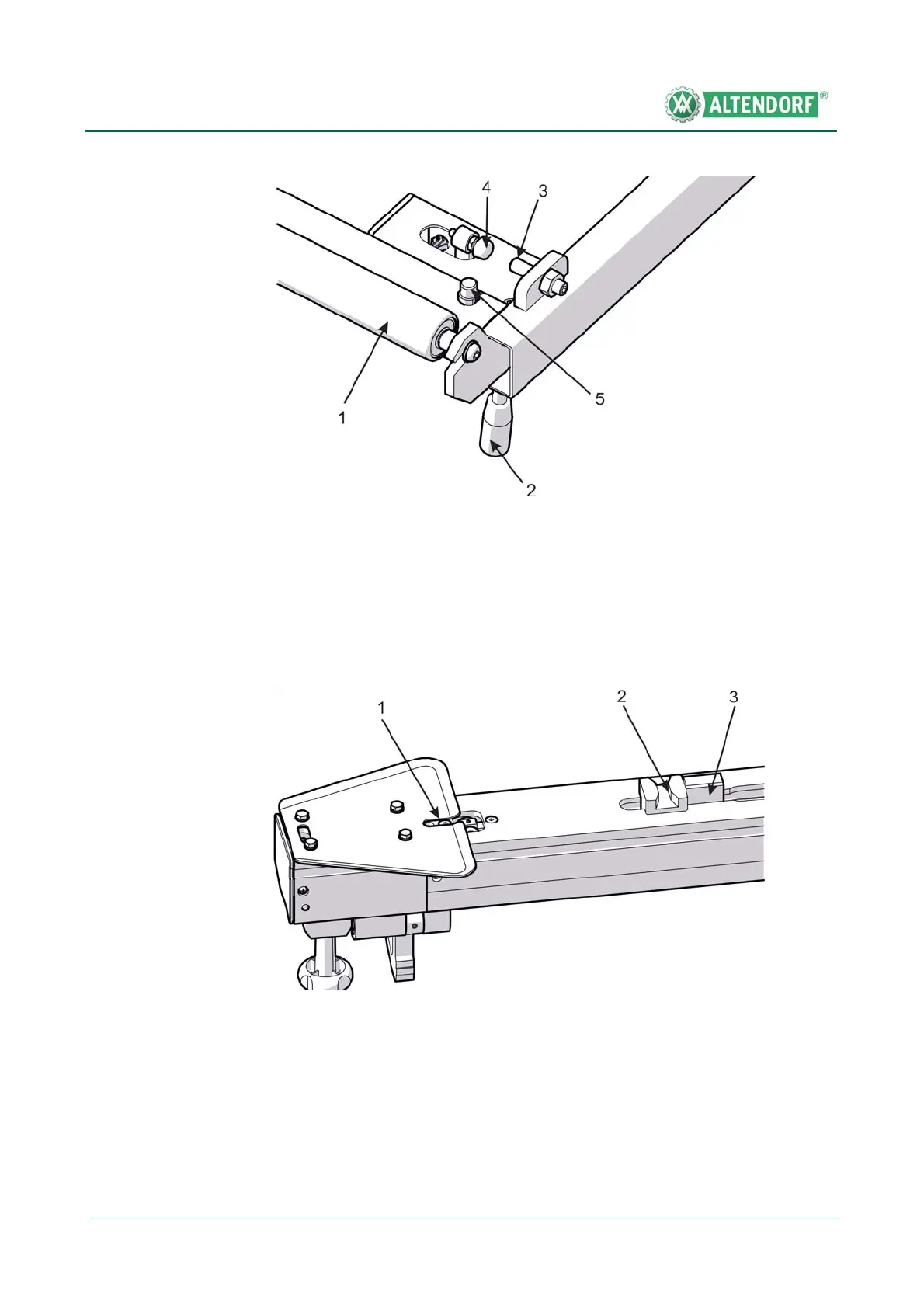

Fig. 5-20 90° clamping
[1] Support roller
[2] Clamping lever
[3] 90° stop
[4] Pressure piece on the clamping lever
[5] Guide bolt(s)
Fig. 5-21 WGA_LD, LH side
[1] Clamping screw, telescopic extension
[2] Guide groove, 90° position
[3] Clamping piece, 90° position
