Transport, siting and installation
CNC crosscut fence
Operating elements, CNC crosscut fence UNO 90

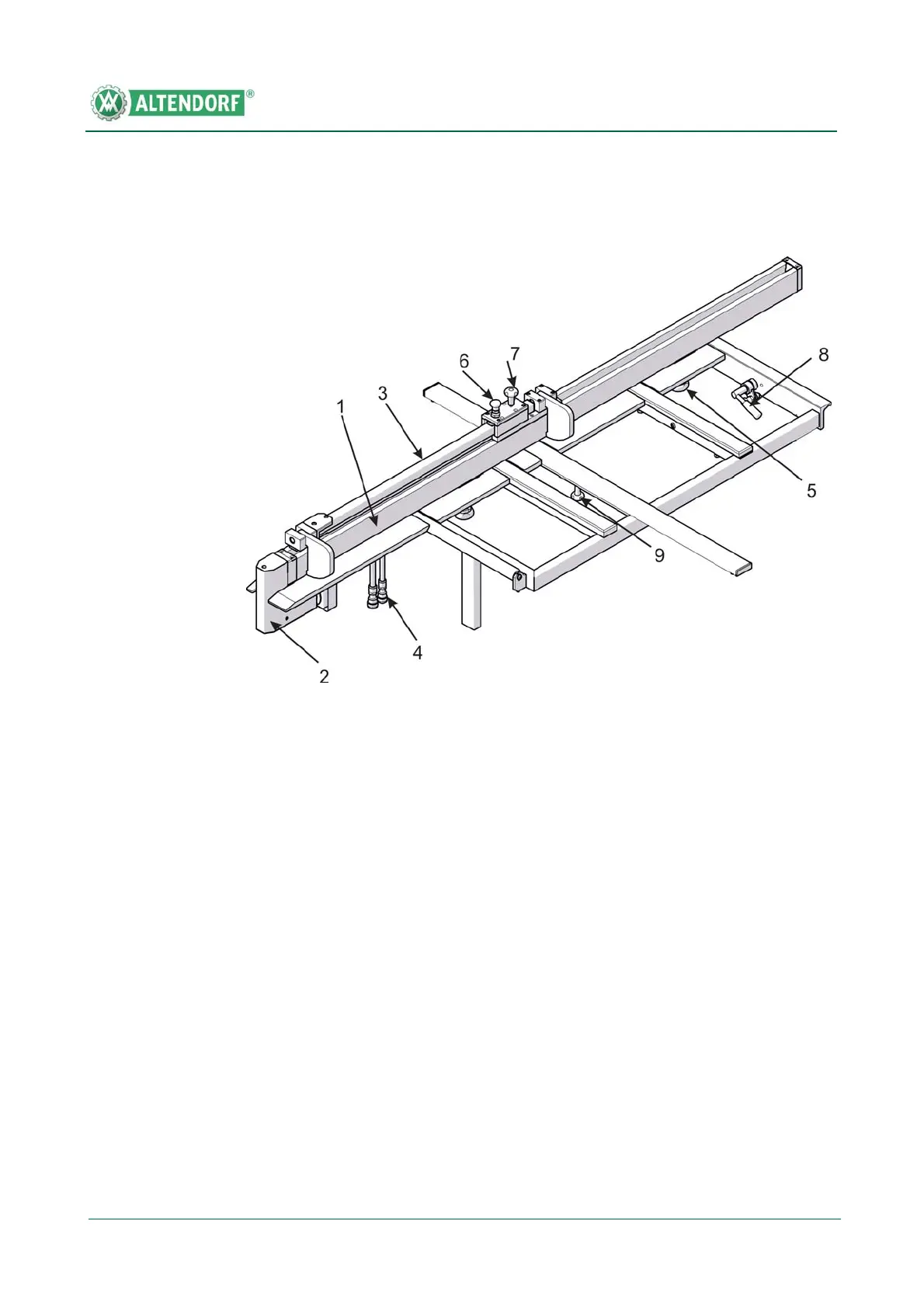

Fig. 5-22 CNC crosscut fence UNO 90
[1] Stop fence
[2] Axis drive
[3] Axis extension
[4] Electrical connection
[5] Clamping screws
[6] Indexing bolt, extension
[7] Clamping screw, extension
[8] Clamping lever, cross-slide
[9] Clamping, C profile
