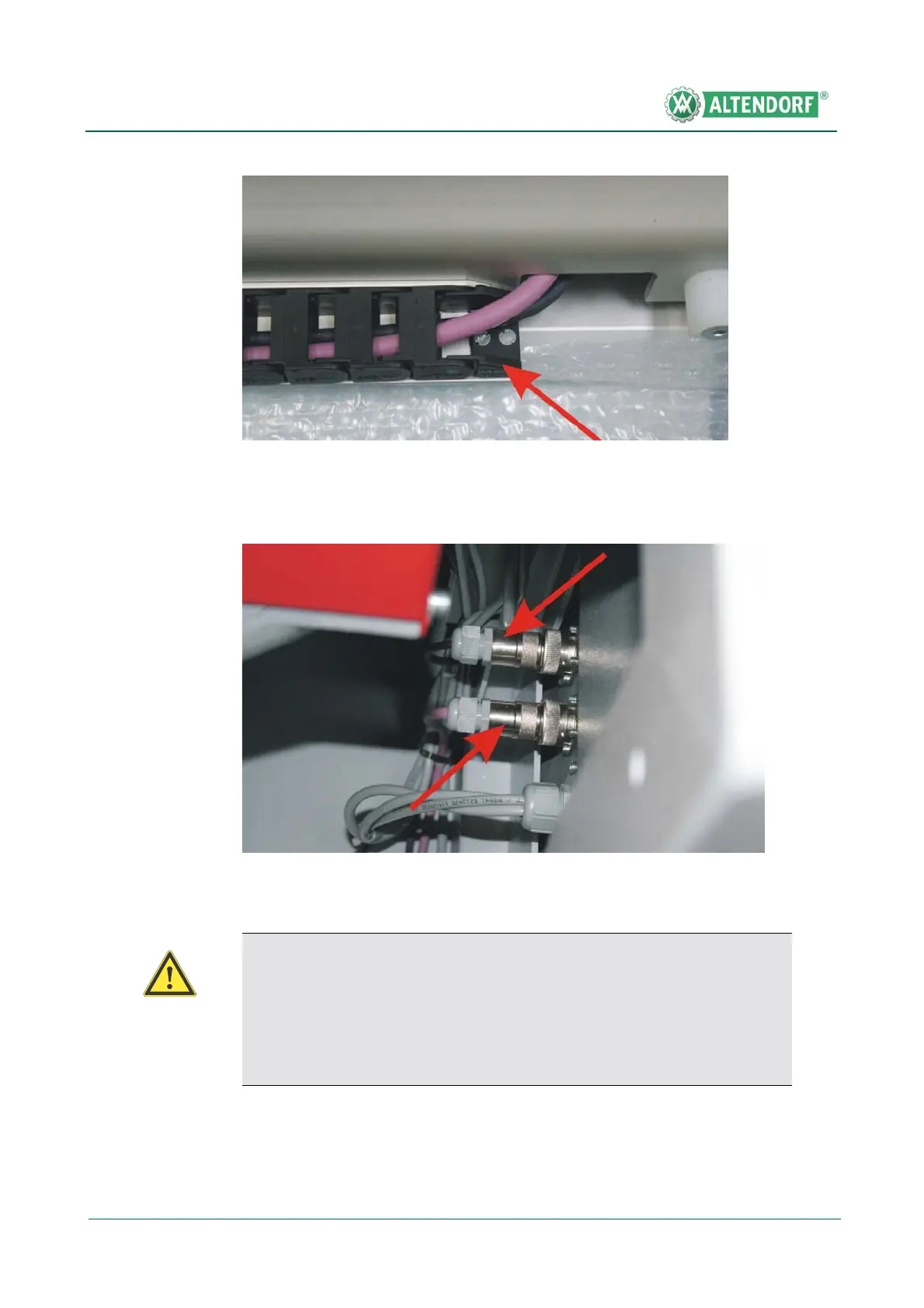

Fig. 5-33 Fastening the e-chain
[1] Screw the first link of the e-chain onto the bracket using 2 screws.
Fig. 5-34 Switch cabinet
[1] Connect the plug to the switch cabinet.
[2] Tighten the cap nut.
Warning!
The connectors have 3 and 5 poles.
Ensure you plug the 3-pole connector into the 3-pole socket, otherwise
the connector will be destroyed!
Observe the colour marking.
