ALTUS Nexto NX3004 User Manual

4. Configuration
102
(counters)
%QX(n+2).3
bDiag_19_reserved
BIT
Reserved
%QX(n+2).4
bDiag_20_reserved
BIT
Reserved
%QX(n+2).5
bDiag_21_reserved
BIT
Reserved
%QX(n+2).6
bDiag_22_reserved
BIT
Reserved
%QX(n+2).7
bDiag_23_reserved
BIT
Reserved
%QB(n+3)
byDiag_03_reserved
BYTE
Reserved
Communication Statistics:
%QW(n+4)
tStat.*
wTXRequests
WORD
Counter of number of requests
transmitted by the client (0 to
65535)
%QW(n+6)
wRXNormalResponses
WORD
Counter of normal answers
received by the client (0 to
65535)
%QW(n+8)
wRXExceptionResponses
WORD
Counter of answers with
exception code (0 to 65535)
%QW(n+10)
wRXIllegalResponses
WORD
Counter of illegal answers
received by the client – invalid
syntax, invalid CRC or not
enough bytes received (0 to
65535)
%QW(n+12)
wDiag_12_reserved
WORD
Reserved
%QW(n+14)
wDiag_14_reserved
WORD
Reserved
%QW(n+16)
wDiag_16_reserved
WORD
Reserved
%QW(n+18)
wDiag_18_reserved
WORD
Reserved
Table 4-66. MODBUS Client Protocol Diagnostics
Note:
Counters: all MODBUS TCP Client diagnostics counters return to zero when the limit value 65535
is exceeded.
Device Configuration – Configuration via Symbolic Mapping
The client devices configuration, depicted on Table 4-67, follow the parameters:

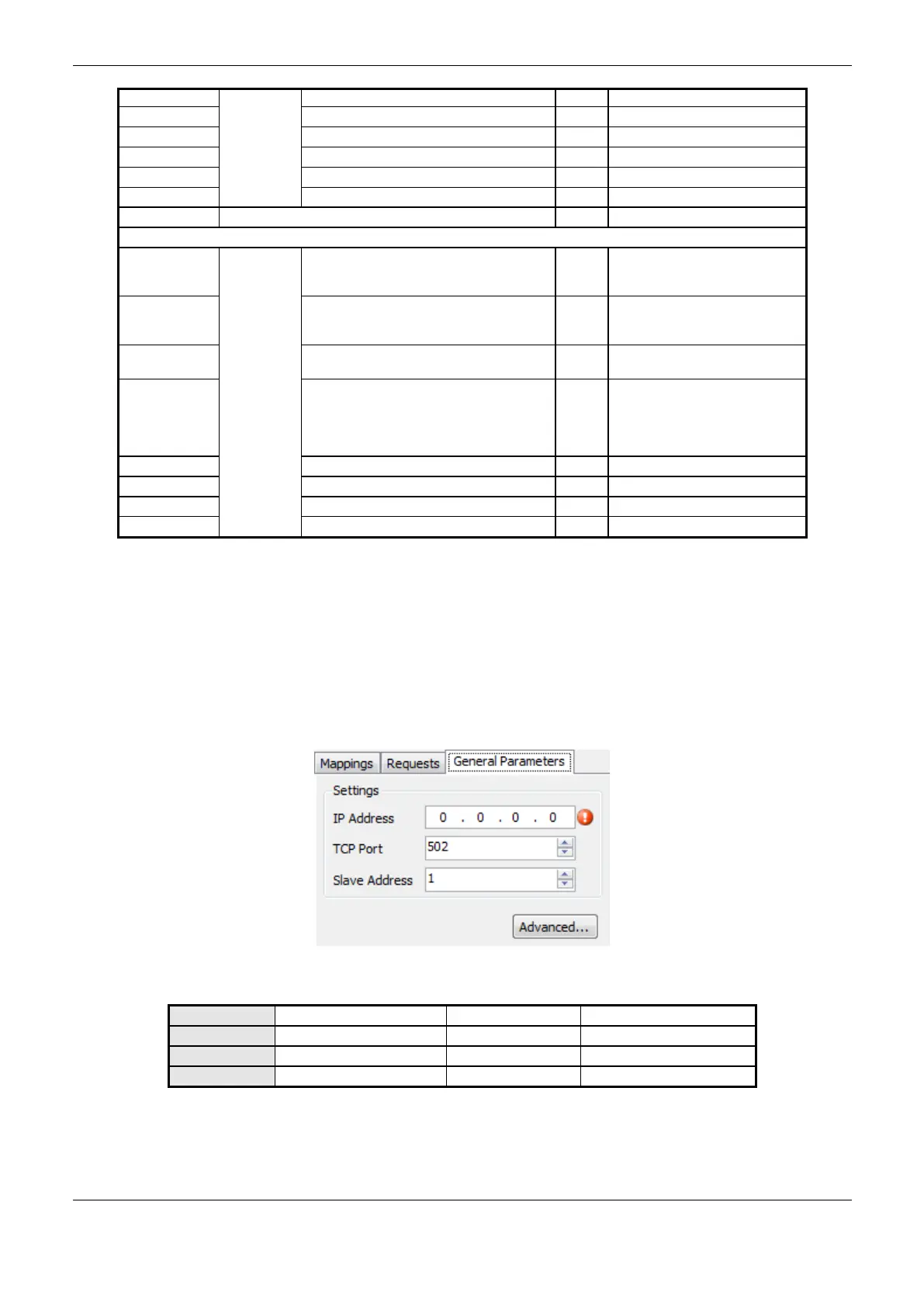

Figure 4-30. Device General Parameters Settings
Configuration
Description
Default
Options
IP Address
Server IP address
0. 0. 0. 0
1.0.0.1 to 223.255.255.255
TCP Port
TCP port
502
2 to 65534
Slave Address
MODBUS Slave address
-
0 to 255
Table 4-67. MODBUS Client General Configurations
