4. Configuration
156

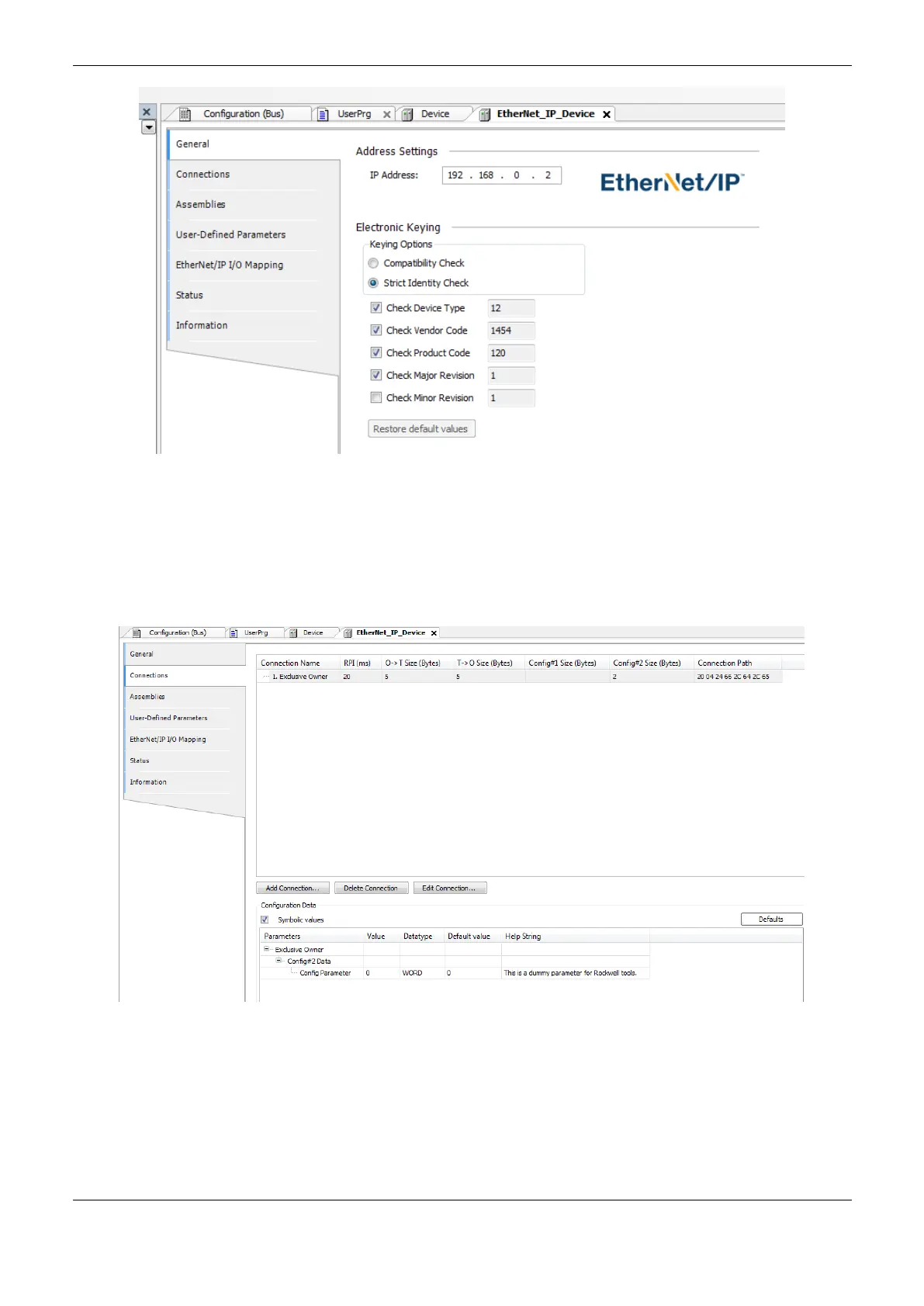

Figure 4-64. EtherNet/IP General Tab
Connections
The upper area of the Connections tab displays a list of all configured connections. When there is an
"Exclusive Owner" connection in the EDS file, it is inserted automatically when the Adapter is
added. The configuration data for these connections can be changed in the lower part of the view.
Figure 4-65. EtherNet/IP Connection Tab
Notes:
For two or more EtherNet/IP Scanners to connect to the same Remote Adapter:
1 - Only one of the Scanners can establish an "Exclusive Owner" connection.
2 - The same value of RPI (ms) must be configured for the Scanners.
