4. Configuration
157
The configuration data is defined in the EDS file. The data is transmitted to the remote adapter when
the connection is opened.
Configuration
Description
Default Value
Options
RPI (ms)
Request Packet Interval:
exchange interval of the
input and output data.
10 ms
Multiple of
MainTask
interval
O -> T Size (Bytes)
Size of the producer data
from the Scanner to the
Adapter (Originator -->
Target).
Depends on
adapter’s EDS
0 - 400
T -> O Size (Bytes)
Size of the consumer data
from the Adapter to the
Scanner (T --> O).
Depends on
adapter’s EDS
0 - 400
Config #1 Size (Bytes)
Size of configuration data
1.
Depends on
adapter’s EDS
-
Config #2 Size (Bytes)
Size of configuration data
2.
Depends on
adapter’s EDS
-
Connection Path
Address of the -
configuration objects -
input objects - output
objects.
Depends on
adapter’s EDS
-
Table 4-98. EtherNet/IP Connection parameters
To add new connections there is the button “Add Connection…” which will open the “New
connection” window. On this window it’s possible to configure a new type of connection from the
ones predefined on Adapter’s EDS or a generic conection from zero.

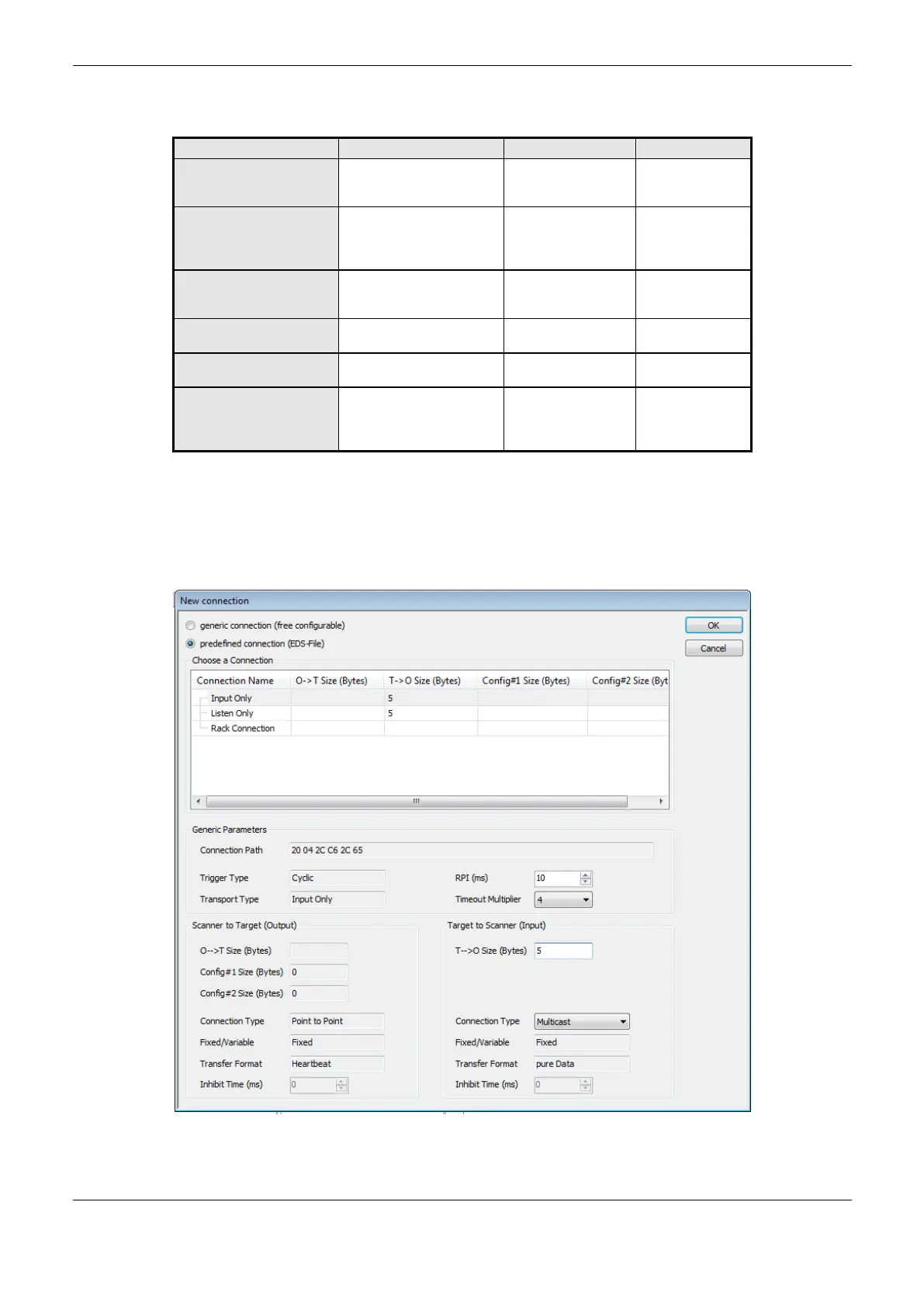

Figure 4-66. EtherNet/IP New Connection’s Window
