MM-400A
8. Operation Screens
8-77

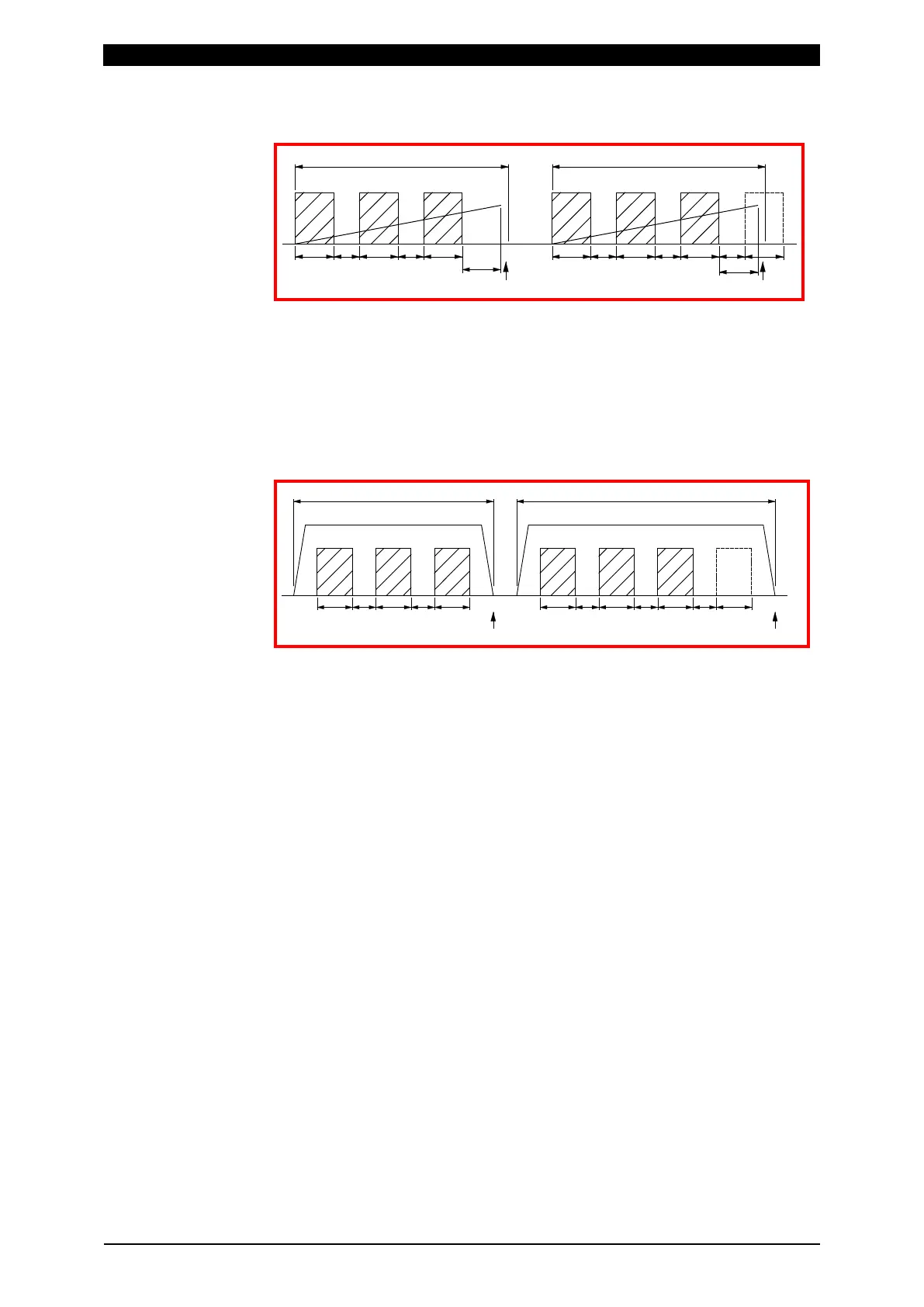

2) When current is first measured, and displacement, force or external input is
measured
a: WELD b: COOL d: Delay time
When PULSE No. is set to 3, the first to third steps and DIST FINAL, FORCE
FINAL or EXT FINAL after the delay time are measured and then ended. The
fourth step is not measured.
(Note) For measurable time, refer to “Measurable time of all-pulse
measurement for each mode.”
3) When force or external is first measured
a: WELD b: COOL
When PULSE No. is set to 3, the first to third steps are measured and then
ended. The fourth step is not measured.
(Note) For measurable time, refer to “Measurable time of all-pulse
measurement for each mode.”
For FINAL DELAY TIME of DISPLACEMENT, refer to Chapter 8, “m-1.
EXTEND SETUP (1) Screen.”
For DELAY TIME of FORCE, refer to Chapter 8, “m-4. EXTEND SETUP (4)
Screen.”
For DELAY TIME of EXTERNAL, refer to Chapter 8, “m-6. EXTEND SETUP
(6) Screen.”
a a
ab
b
a a a ab b b
c
c
Measurable timeMe
asurable time
Pulse 4Pulse 3 Pulse 3Pulse 3Pulse 2 Pulse 2Pul
se
1 Pulse 1
Displacement
Measurement end Measurement end
a a a a a a ab b b b b
Measurable time
Measurable time
Pulse 4Pulse 3 Pulse 3Pulse 2 Pulse 2Pulse 1 Pulse 1
Force, external
Measurement end Measurement end
