MM-400A
8. Operation Screens
8-85
When displacement trigger is used:
If the external displacement trigger turns OFF after the current flow, the
instrument measures the displacement after the elapse of the displacement
delay time following the turning OFF of the external displacement trigger.
If the current flow ends after the external displacement trigger turns OFF, the
instrument measures the displacement after the elapse of the displacement
delay time following the end of the current flow. On the other hand, if the third
step current flow occurs after the second step current flow, the instrument
operates in the same manner as when external displacement trigger is not
used.
(5) PULSE DELAY TIME 1 / PULSE DELAY TIME 2
When you have selected DELAY TIME for MEAS AFTER PULSE, set the time
from the end of WELD1 and WELD2 to the displacement measurement in the
range from 0000 to 1,000 ms.
(6) RESET DELAY TIME
When you have selected REFERENCE for MEASUREMENT MODE and ON
for PULSE 2 RESET, a zero rest of displacement is performed after the elapse
of the time set in RESET DELAY TIME following the end of WELD1. The
setting range is 0000 to 1,000 ms.
(7) Function keys
MENU: Touching this displays the MENU screen.
NEXT: Touching this displays the EXTEND SETUP (2): DISPLACEMENT (2/3)
screen.
DIST: Touching this displays the EXTEND SETUP (2): DISPLACEMENT (2/3)
screen.
FORCE: Touching this displays the EXTEND SETUP (4): FORCE (1/2)
screen.
EXTERNAL: Touching this displays the EXTEND SETUP (6): EXTERNAL
(1/2) screen.

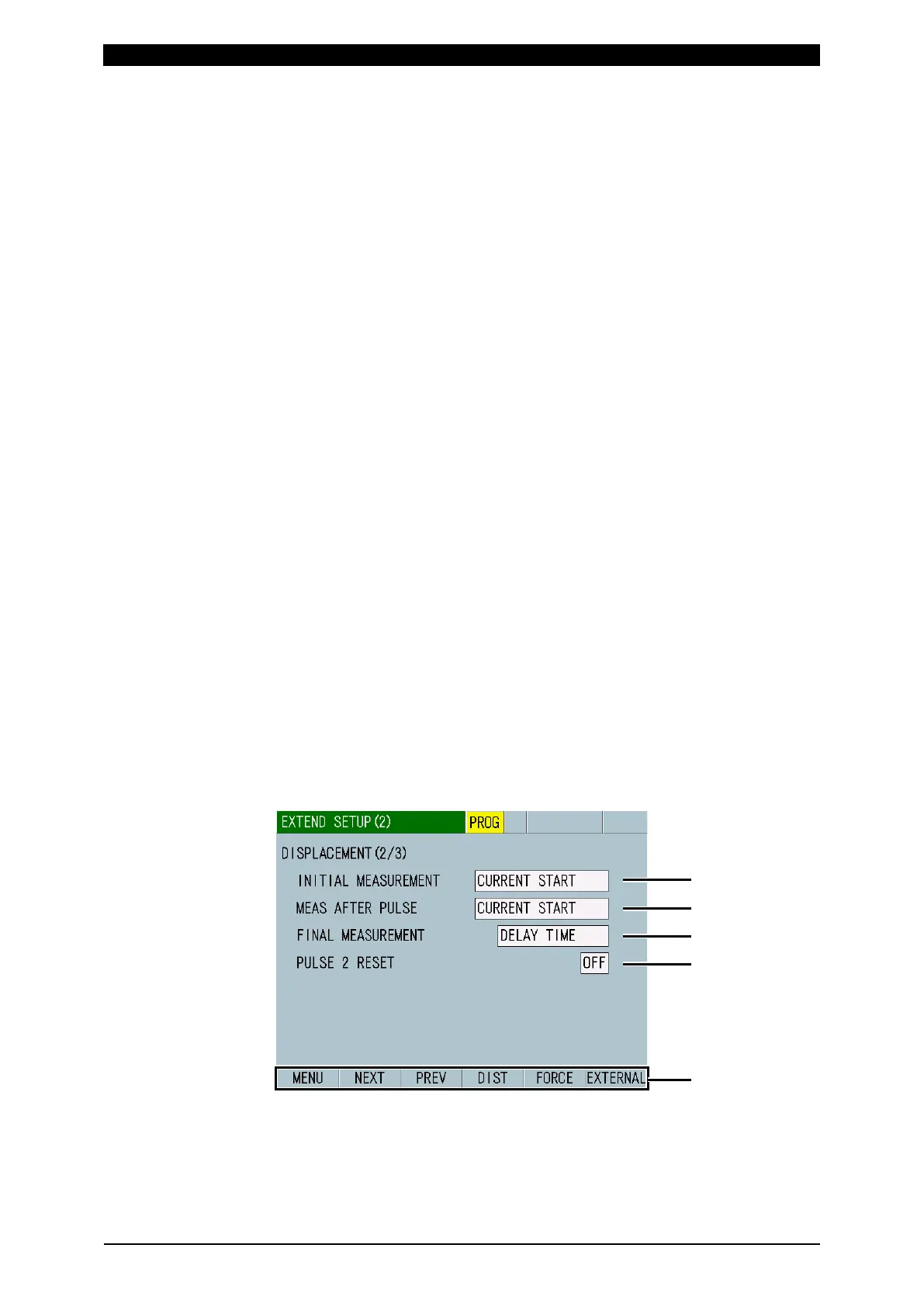

m-2. EXTEND SETUP (2) Screen: DISPLACEMENT (2/3)
(1) INITIAL MEASUREMENT
Select CURRENT START or EXTERNAL INPUT.
Available only when any of ABSOLUTE1 to ABSOLUTE4 is set for
MEASUREMENT MODE.
To Next Page
