9. Measurement
9-5
Item Setting
START TIME/
END TIME

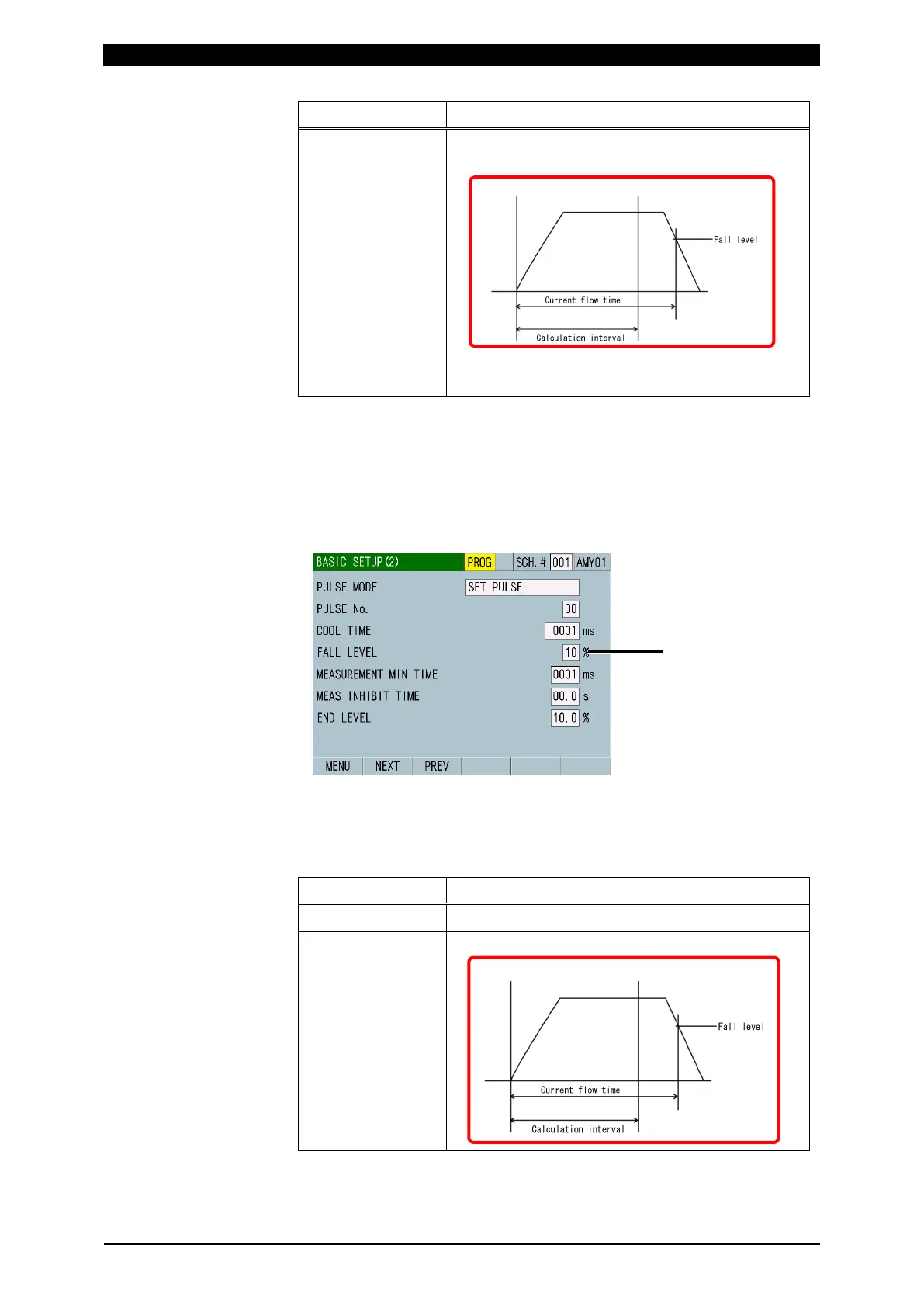

Referring to the figure shown below, set the
current calculation interval.
Set FALL LEVEL in the BASIC SETUP (2) screen
for the current flow time.
*1
*1: The calculation end time becomes FALL LEVEL set in the BASIC
SETUP (2) screen when END TIME is longer than the current flow
time. FALL LEVEL is a peak value when ORIGINAL is selected for
CALCULATION, and a ratio from the maximum RMS when
ISO17657.
(2) FALL LEVEL setting
Select the BASIC SETUP (2) screen to set FALL LEVEL.
• Transistor welding power supply
Set the following items in the BASIC SETUP (1) screen. (For more information,
refer to (2) l-1 in Chapter 8.)
Item Setting
TIME SHORT ms-DC
START TIME/
END TIME
Set the current calculation interval.
Measurement start
Measurement end
Measurement start
Measurement end
To Next Page
