3.2 Basic Operation
3-9
3
Measurement
[1] Measurement parameter
Displays the specified parameter.
[2] Status message
Displays signal status.
[3] Result window
Displays the measurement results for frequency, level, and
modulation index of RF input signals.
[4] Function menu
Displays the functions executable with function keys.
[5] AF Measure Result (TX-AF) window
Displays the frequency, level, distortion factor, and graph of
demodulated AF signals.
[6] Audio Generator window
Displays the setting for AF output signals.
[7] Meter
Displays the measurement results.
3.4.3.2 Setting Meter

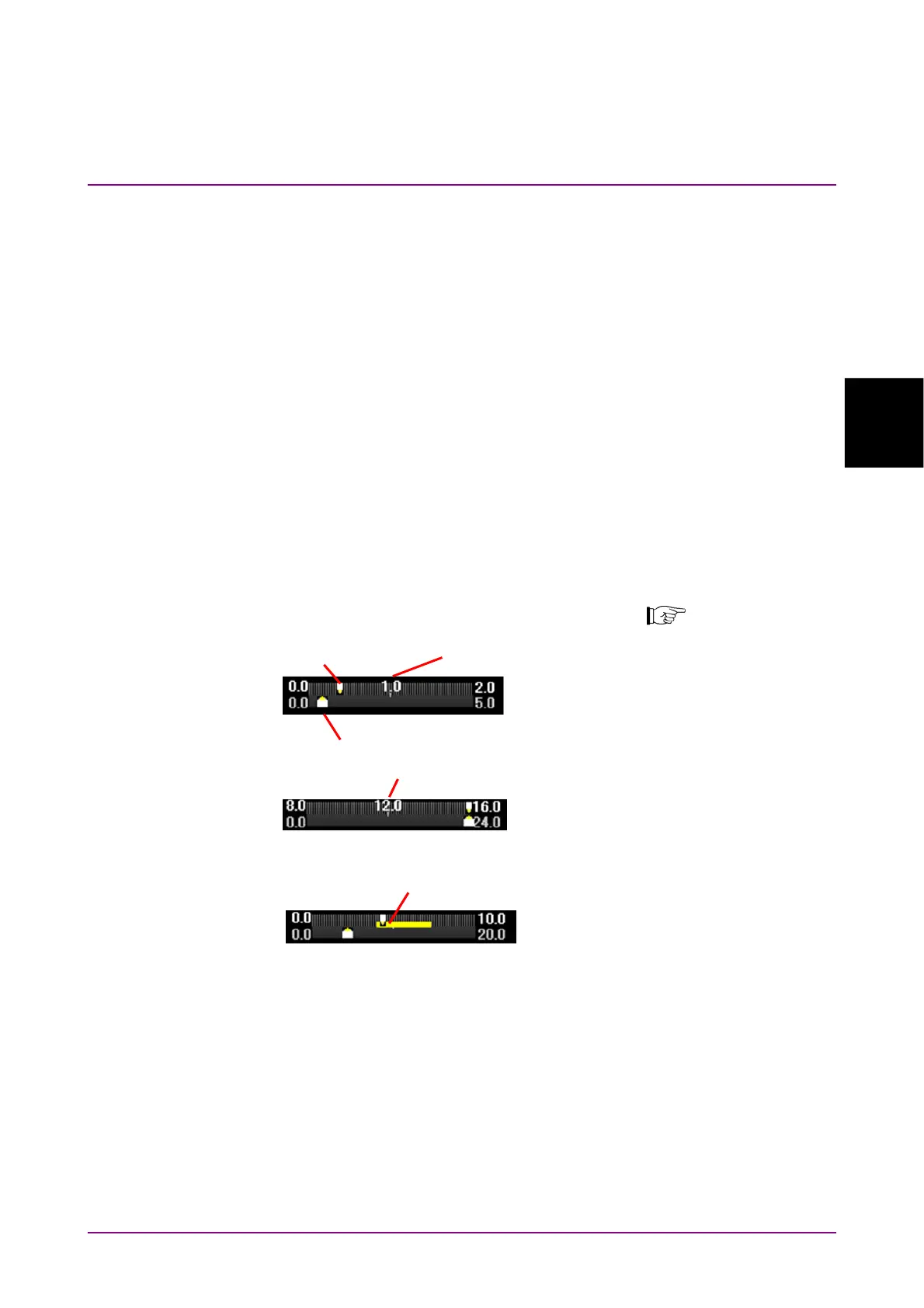

Figure 3.2.1.2-2 Examples of Setting Meter
Upper： Range 1
Lower： Range 2
Measurement result
Measurement result
Deflection View
When unit is %, Meter center value o
f
Range1 is not displayed.
Setting： Unit = dB
Reference = Center
Reference Value = 12
Range1 = 8
Range2 = 24
Meter center value of Range1
Setting： Unit = mV
Reference = Minimum
Reference Value = 0.0
Range1 = 2
Range2 = 5
Setting： Unit = %
Reference = Minimum
Reference Value = 0.0
Range1 = 10
Range2 = 20
Deflection View = On
Meter center value of Range1
