i2000SR interface module Service Manual
Page 102 of 212 625798100.APS.5.doc
STEPS REFERENCES

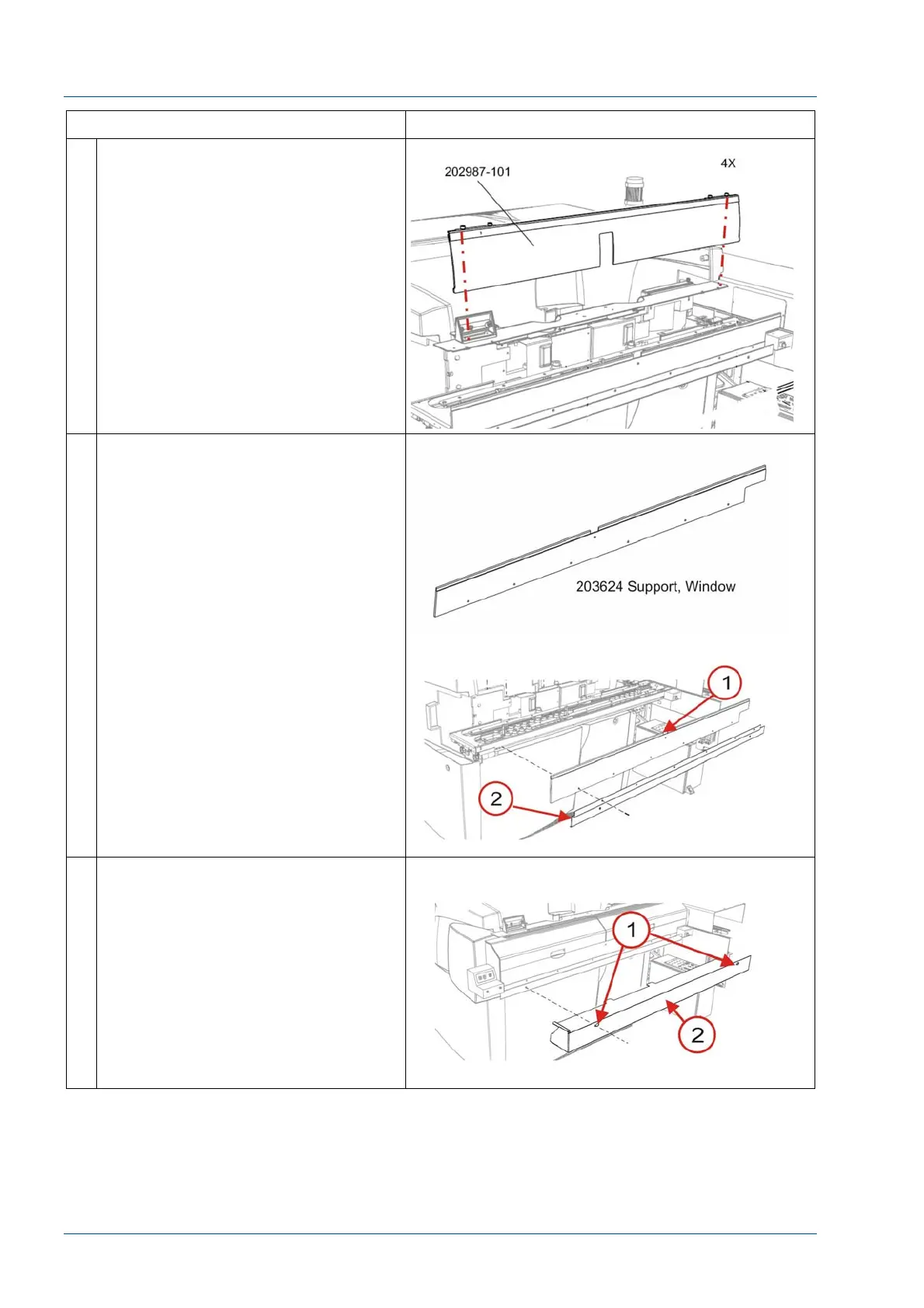

8 Remove the center cover by
loosening the four (4) ¼ turn screws.
9 At the front of the i2000SR IM,
remove the six (6) 100474-001
screws used to mount the 203624
Window Support [1] and 203718
Bracket Lower Closeout.
10 Remove the two (2) screws used to
secure the 203717 Lower Closeout to
the Window Support.
