Service Manual i2000SR interface module
625798100.APS.5.doc Page 65 of 212
i2000SR IM Horizontal Positioning Check
REMARK
This check should be executed only after i2000SR IM
leveling (See
Figure 46
).
It is important to verify that the gap between the 1st lane belt and
the profile of the main track is between 0.5 & 1.0 mm. If the gap
is too small, there may be interference between lane 1 belt and
main track profile. If the gap is too large, a carrier may not route
properly to the interface module lane 1.

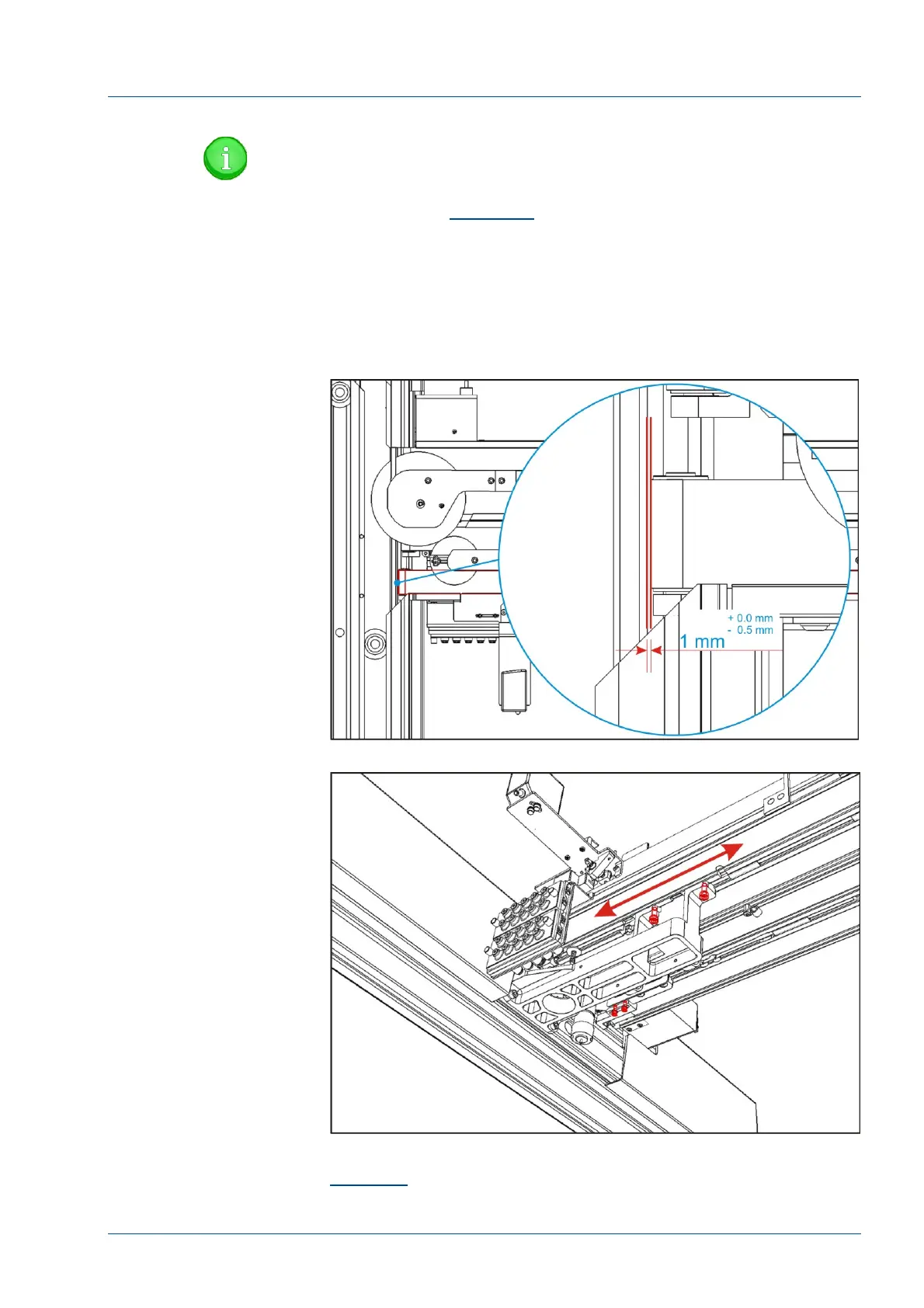

Figure 51 – IM belt/ Track profile horizontal gap verification
Figure 52 – IM belt – Track profile gap adjusting
If needed, adjust this gap by loosening the four screws shown in
Figure 52
, and move the Interface Module horizontally until it will
reach the right position. A 1 mm gauge can be used to ensure that
To Next Page
