there is a proper gap between the IM belt and the main track
profile.
Ensure that the profiles of the i2000 IM and Main Track remain
square.
Tighten the four screws.
i2000SR IM Vertical Positioning Check
REMARK
This check should be executed only after i2000SR IM
leveling (See
Figure 46
).
It is important to verify that the upper surface of the 1
st
lane belt
and the upper surface of the main track secondary track belt are
at the same level in the ± 0.3 mm range. If this condition is not
verified when the spur is leveled, carriers may not pass properly
from the track lane to the interface module 1
st
lane.

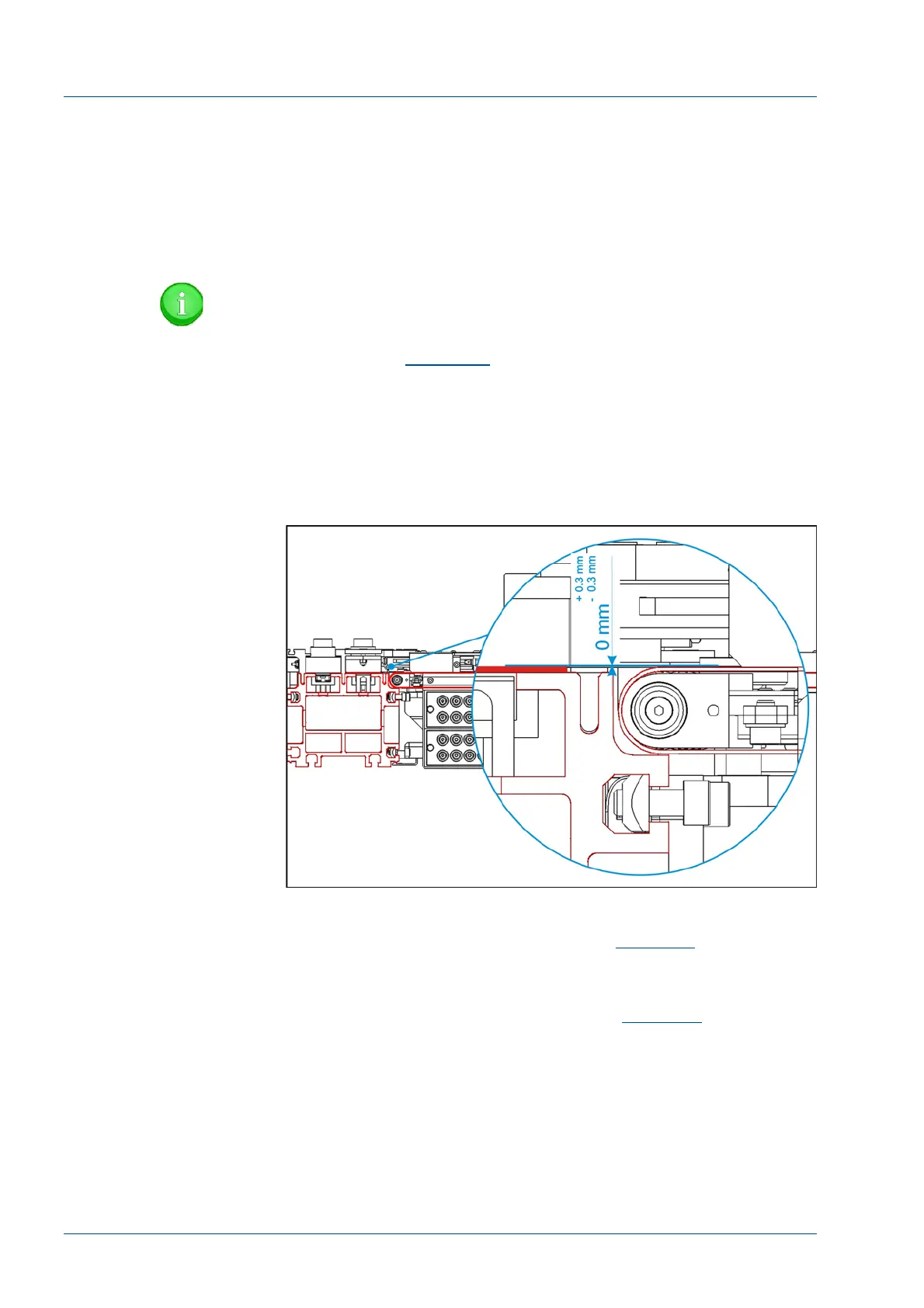

Figure 53 - IM belt/ Track belt level
If needed, adjust this level as follow:
• Loosen the two screws shown in
Figure 54
to remove the
pneumatic multi connector and gain access to the first lane idler
pulley adjusting screws.
• Loosen the two screws shown in
Figure 55
to adjust the
vertical position of the idler pulley belt group.
