Service Manual i2000SR interface module
625798100.APS.5.doc Page 67 of 212

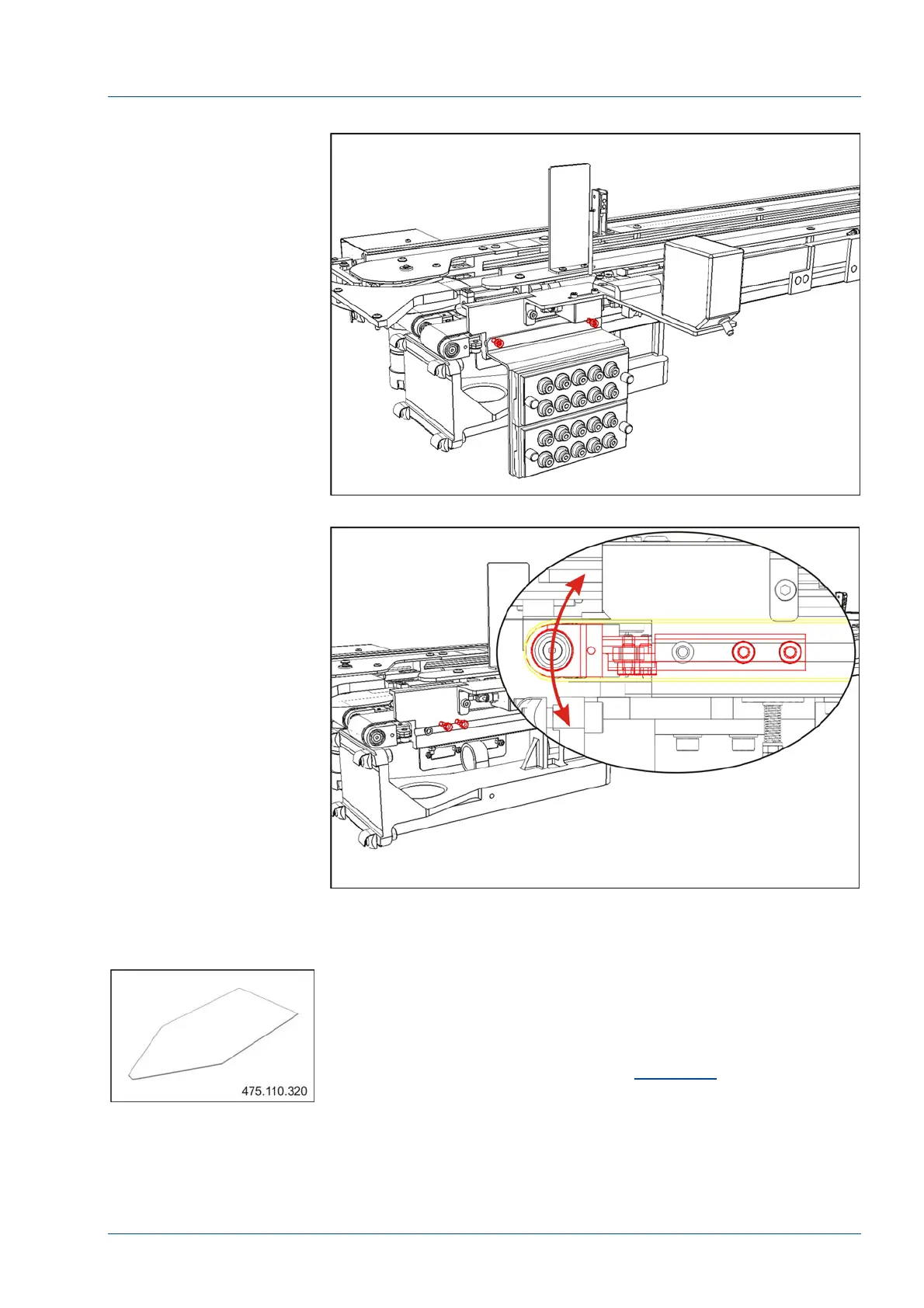

Figure 54 – Multi connector removing
Figure 55 – Idler pulley adjusting
At the end of the adjusting procedure, it is required to check the
clearance between the i2000SR IM first lane belt and the main
track secondary lane. To do this:
• Try to push the flexible Spur Positioning tool (P/N
475.110.320 (204148)) through the space between the track
profile and the first lane spur belt. The flexible tool should pass
through and under the belt as indicated by the blue arrows
illustrated in the belt clearance in
Figure 56
. If the test tool
cannot pass through both sections check the spur leveling, then
repeat the test.
