Service Manual i2000SR interface module
625798100.APS.5.doc Page 7 of 212
Description
This chapter contains a general description of the module and its
technical characteristics. An explanation of the principles of
operation is also provided.
i2000SR Interface Module
The purpose of the i2000SR Interface Module (IM) is to transport
samples to the ARCHITECT i2000SR instrument as a standalone
unit or interfaced with an Automated Processing System (APS). As
a standalone unit the i2000SR IM (
Figure 1
) is capable of
processing sample tubes without any functionality from the APS.
As an autonomous instrument it is equipped with its own power
supply, controller unit, and Laboratory Automated System (LAS)
connections.

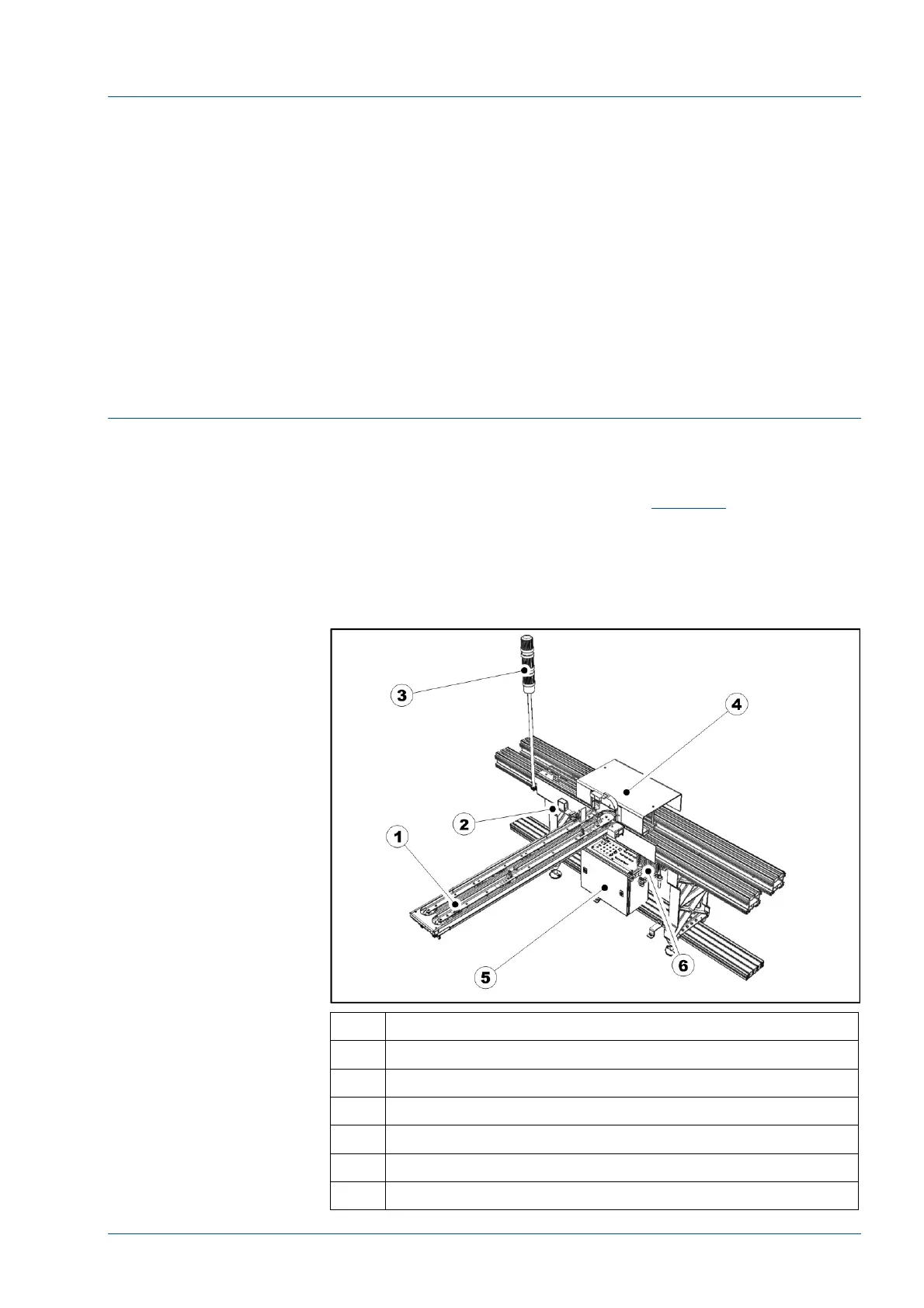

Figure 1 i2000SR Interface Module
No. Description
1 i2000SR Interface Module with 4 tube lanes
2 Barcode reader
3 Instrument Indicator lamps
4 APS track with instrument interface module
5 i2000SR IM electrical box group
6 i2000SR IM pneumatic group
