Service Manual i2000SR interface module
625798100.APS.5.doc Page 63 of 212
Action Reference

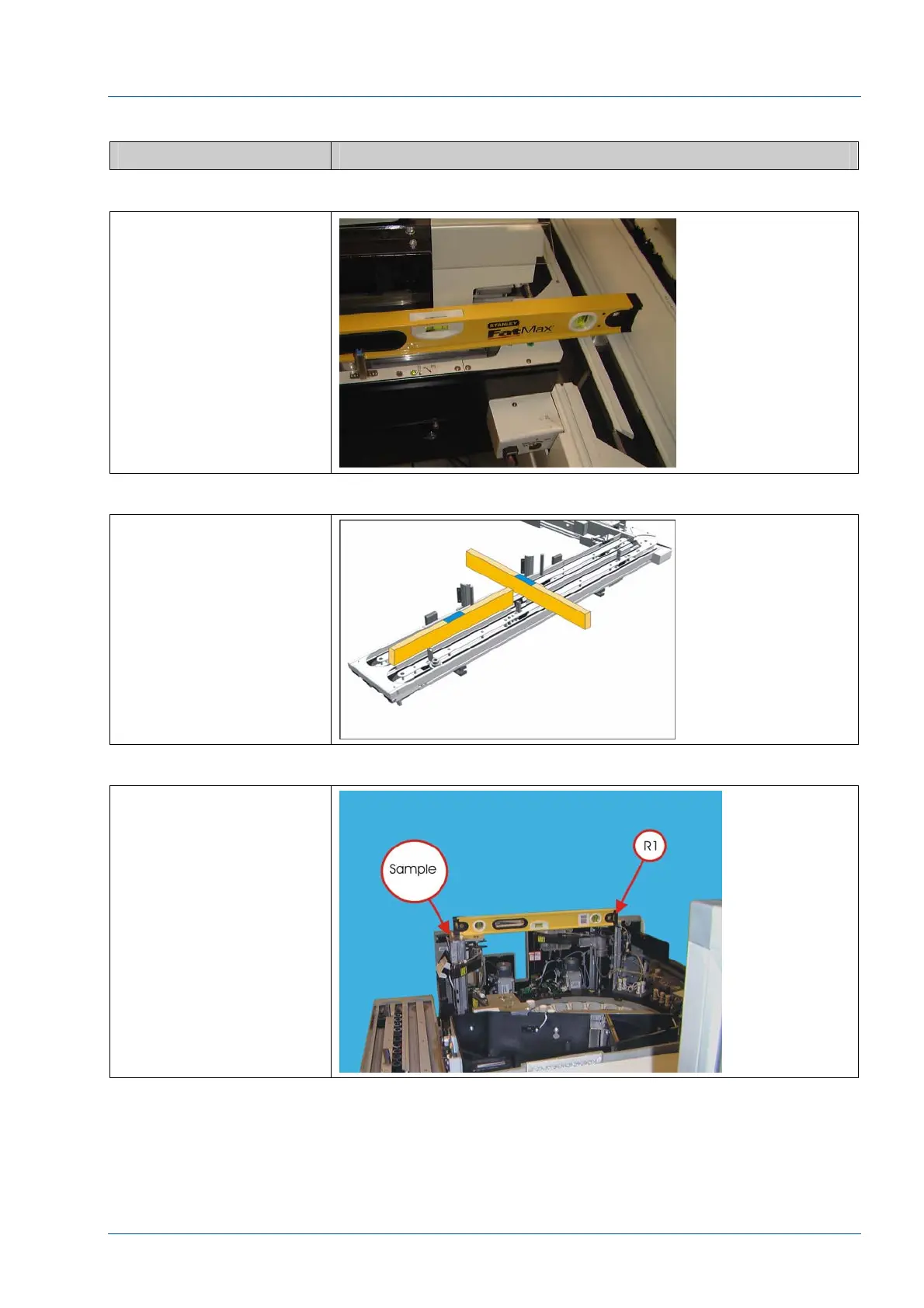

Figure 45 – Level i2000SR IM with track
The i2000SR IM track is
level with the track on the
Workcell.
Place a TM Carrier
Leveling Aid (P/N
403.600.150 (202182)
into the APS main track
and a second aid on the
i2000SR IM track. Insert a
level between the two as
a reference.
Figure 46 – Level i2000SR IM
The i2000SR IM is level.
Figure 47 – Level i2000SR Front/Back
Place a level across the
top of the i2000SR
Sample and R1 pipettor
to indicate front to back
level of the i2000SR.
Adjust the feet of the
i2000SR as required until
the processing area is
level.
